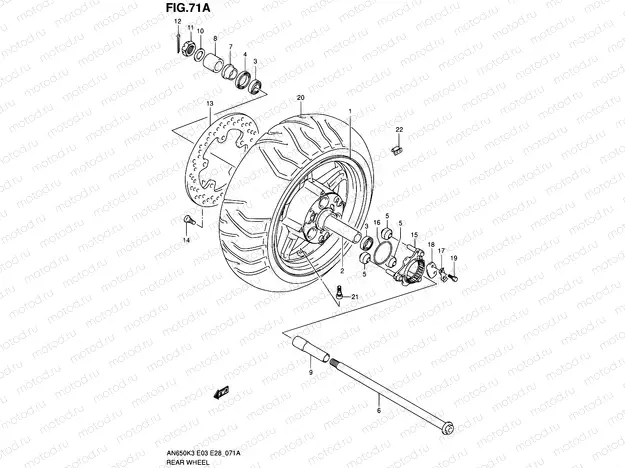

71A - REAR WHEEL (AN650K4/K5)

71A - REAR WHEEL (AN650K4/K5)

Например: 64111-10G10-YD8

1

64111-10G10-YD8

Колесо

77 044 ₽/шт

2

64731-10G00

SPACER,RR HUB BEARING

2 268 ₽/шт

3

08123-6204B

earing,rear Wheel Hub

1 308 ₽/шт

4

09285-28004

OIL SEAL

1 088 ₽/шт

5

09319-12062

BUSH

937 ₽/шт

6

64711-10G10

AXLE,RR

6 373 ₽/шт

7

64741-10F00

SPACER,RR AXLE,R

1 003 ₽/шт

8

64751-10G10

SPACER,RR AXLE,R NO1

868 ₽/шт

9

64772-10G00

SPACER,RR AXLE,L

2 268 ₽/шт

10

08322-0118B

Шайба

1 370 ₽/шт

11

08314-40187

Гайка

3 480 ₽/шт

12

04111-4040A

PIN

820 ₽/шт

13

69211-10G10

DISC,RR BRAKE

22 678 ₽/шт

14

09106-08160

БОЛТ

178 ₽/шт

15

64680-10G20

JOINT ASSY,RR HUB DRIVEN

15 914 ₽/шт

16

09280-65003

O RING(D:2.1,ID:65)

1 840 ₽/шт

17

09169-06030

Шайба

1 520 ₽/шт

18

64677-10G00

Шайба упорная

414 ₽/шт

19

09119-06049

БОЛТ

900 ₽/шт

20

65110-10G00

TIRE,RR(160/60R14 65H)

34 604 ₽/шт

21

43130-24A00

Ниппель

468 ₽/шт

22

43222-73H10-A05

Felni súly

22

43224-73H10-A05

BALANCER. WHEEL NO.2

22

43226-73H10-A05

BALANCER. WHEEL NO.3
