Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI AN 650 Burgman SUZUKI AN650 K3 Burgman 650 (E03,E28,E33) SUZUKI (VIN: JS1BU111) 5 - CRANKCASE

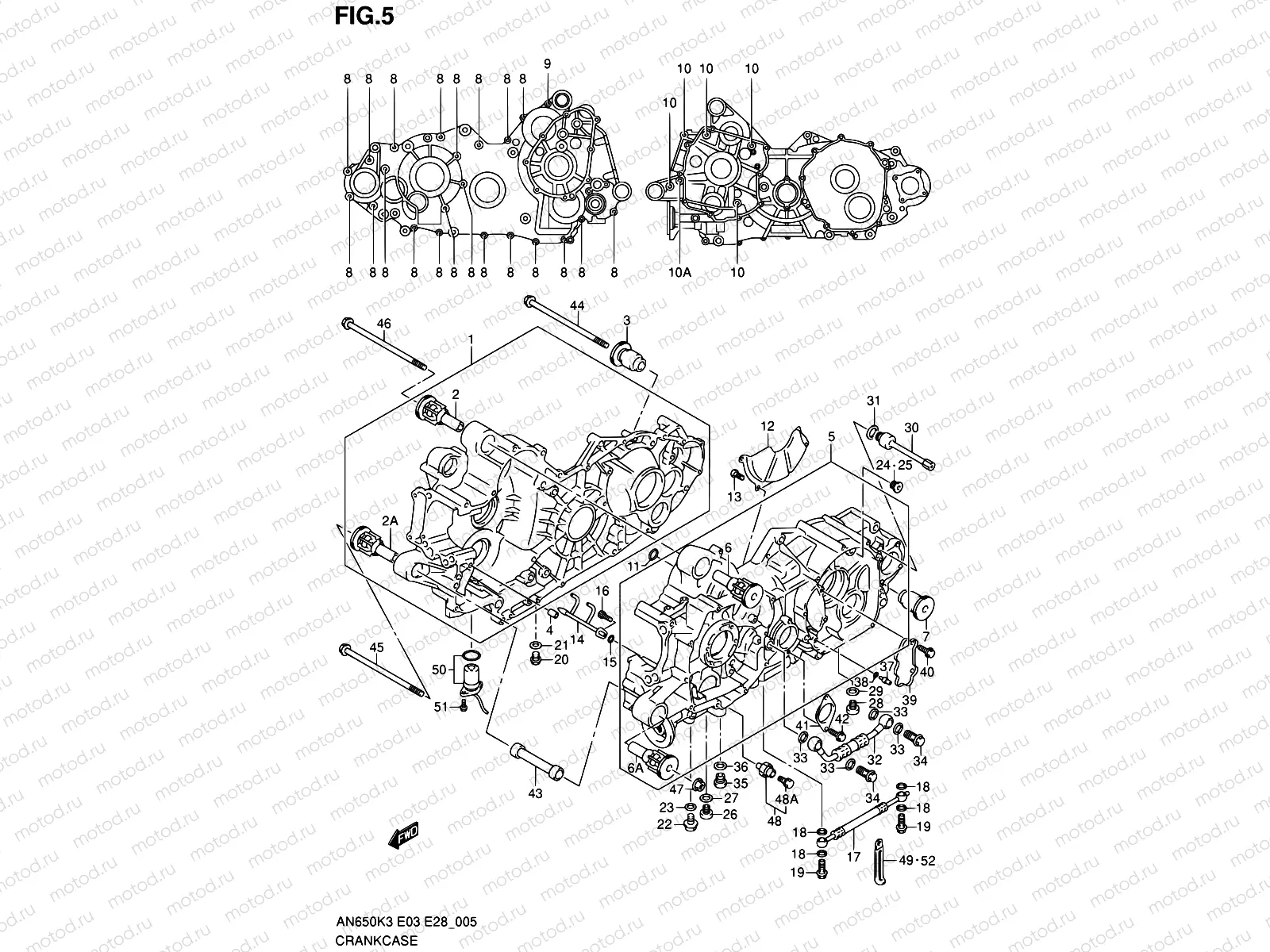

5 - CRANKCASE

5 - CRANKCASE

Например: 11310-10840

1

11310-10840

Crankcase set,r

1

11310-10831

CRANKCASE SET,R

49 368 ₽/шт

2

11652-10G20

Bush,eng mtg

2

11652-10G10

BUSH,ENGINE MOUNTING

1 908 ₽/шт

2

11652-10G10

BUSH,ENGINE MOUNTING

1 908 ₽/шт

3

11651-10G00

BUSH,ENGINE MOUNTING

1 529 ₽/шт

4

11319-33E50

PIN,CRANKCASE

289 ₽/шт

5

11320-10840

Crankcase set,l

5

11320-10831

CRANKCASE SET,L

44 506 ₽/шт

6

11652-10G20

Bush,eng mtg

6

11652-10G10

BUSH,ENGINE MOUNTING

1 908 ₽/шт

6

11652-10G10

BUSH,ENGINE MOUNTING

1 908 ₽/шт

7

11651-10G00

BUSH,ENGINE MOUNTING

1 529 ₽/шт

8

01547-0635B

Болт

97 ₽/шт

9

01547-0685B

Болт

1 920 ₽/шт

10

01550-0895B

Болт

2 620 ₽/шт

10

09103-08097

BOLT(8X105)

178 ₽/шт

11

09280-12009

Кольцо уплотнительное

221 ₽/шт

12

11323-10G00

SEPARATOR,CRANKCASE OIL

543 ₽/шт

13

02112-0612B

Болт

85 ₽/шт

14

11390-10G00

Жиклер

3 485 ₽/шт

15

09280-06005

Кольцо уплотнительное

129 ₽/шт

16

07130-0612A

Болт

102 ₽/шт

17

11282-10G10

PIPE,CRANKCASE OIL

5 185 ₽/шт

18

09168-10007

Прокладка

170 ₽/шт

19

09360-10055

Болт соединяющий

510 ₽/шт

20

09247-10001

Заглушка масляного дренажа

1 560 ₽/шт

21

09168-10002

Прокладка

178 ₽/шт

22

01550-0812B

Болт

97 ₽/шт

23

09168-08015

Прокладка

1 720 ₽/шт

23

09168-08016

Прокладка

129 ₽/шт

24

09248-16013

PLUG (16X12)

2 820 ₽/шт

24

09248-16012

ШЛАНГ

289 ₽/шт

25

09168-16002

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

170 ₽/шт

26

09247-14036

Заглушка масляного дренажа

210 ₽/шт

27

09168-14004

Прокладка

129 ₽/шт

28

09248-12008

ШЛАНГ

5 430 ₽/шт

29

09168-12002

Прокладка

81 ₽/шт

30

11326-10G00

PLUG,T/M OIL FILLER

575 ₽/шт

31

09168-14004

Прокладка

129 ₽/шт

32

11328-10G20

PIPE,OIL PUMP NO.2

7 038 ₽/шт

33

09168-14004

Прокладка

129 ₽/шт

34

09360-14012

БОЛТ

731 ₽/шт

35

09248-14011

PLUG

226 ₽/шт

36

09168-14004

Прокладка

129 ₽/шт

37

09493-80005

JET(8)

1 131 ₽/шт

38

09280-04004

O RING(D:1.2,ID:4.0)

194 ₽/шт

39

11324-10G00

COVER,CRANKCASE,L

1 322 ₽/шт

40

09103-06172

БОЛТ

1 090 ₽/шт

41

11325-10G10

CAP,PRIMARY SHAFT L

285 ₽/шт

42

09103-06172

БОЛТ

1 090 ₽/шт

43

11611-10G00

SPACER,ENG MTG FR

1 482 ₽/шт

44

09103-10239

BOLT(10X235)

1 001 ₽/шт

45

09103-10153

BOLT(10X305)

12 670 ₽/шт

46

09103-10347

BOLT(10X275)

10 480 ₽/шт

47

08319-3110B

Гайка

1 920 ₽/шт

48

37820-33D10

Датчик давления масла

4 764 ₽/шт

48

37822-33D00

BOLT,OIL PRESSURE SWITCH

339 ₽/шт

49

09404-06039

Clamp(L:65)

194 ₽/шт

50

37990-10G00

Переключатель уровня масла

12 395 ₽/шт

51

01547-0616B

БОЛТ

81 ₽/шт

52

09404-06039

Clamp(L:65)

194 ₽/шт
