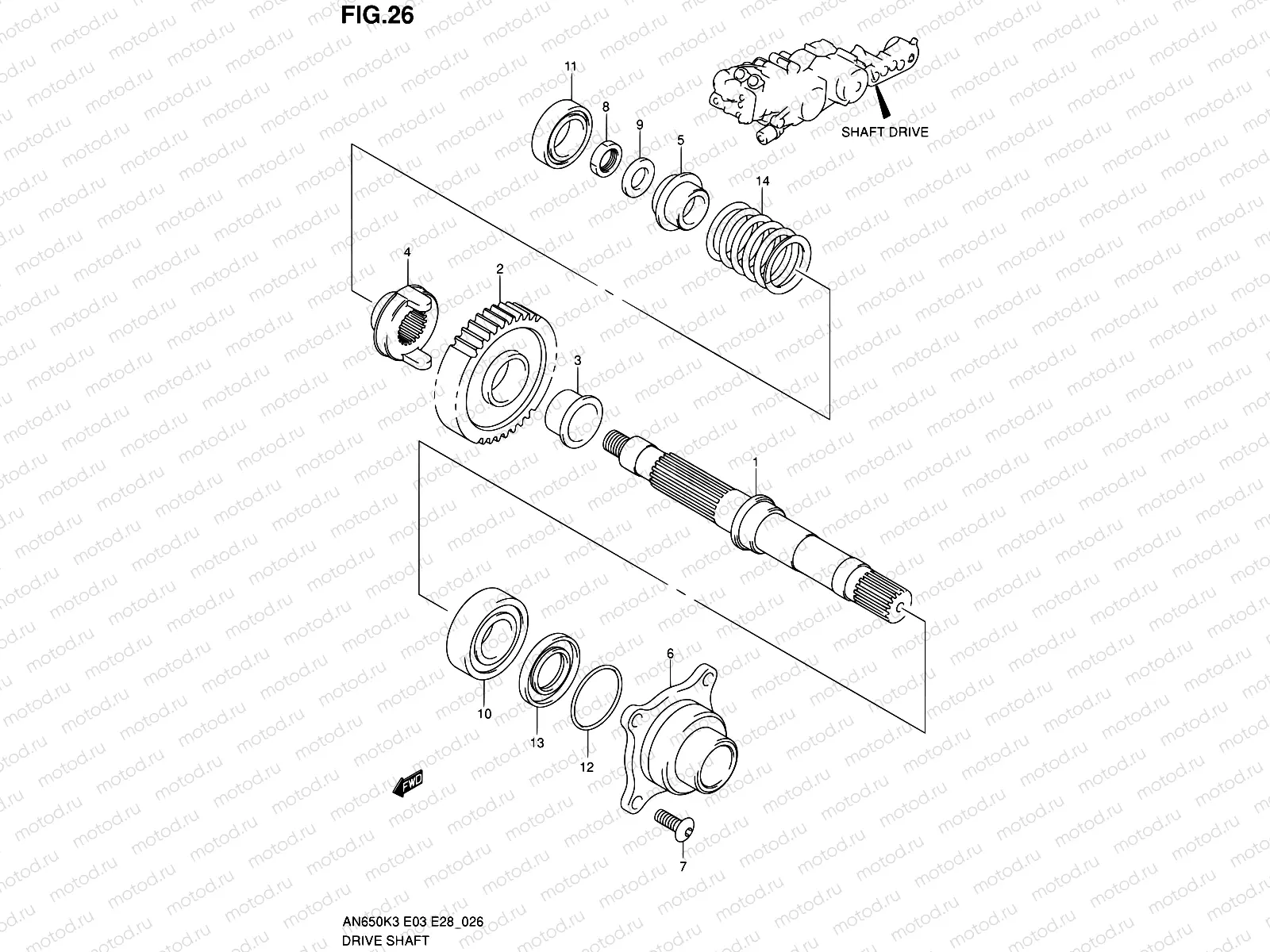

26 - SHAFT DRIVE

26 - SHAFT DRIVE

Например: 24131-10G00

1

24131-10G00

Вал ведущий

15 147 ₽/шт

2

24371-10G00

EAR,FINAL DRIVEN(NT:40)

8 719 ₽/шт

3

24632-10G00

BUSH,FINAL DRIVEN GEAR

2 444 ₽/шт

4

24922-26J00

DOG,OUTPUT CAM

3 265 ₽/шт

5

24923-10G00

STOPPER,CAM SPRING

2 639 ₽/шт

6

24943-10G00

Обойма сальника

5 748 ₽/шт

7

09106-08161

BOLT(8X20)

2 270 ₽/шт

8

09140-16005

Гайка

275 ₽/шт

9

09160-16029

Шайба

3 170 ₽/шт

10

09262-25136

BEARING(25X52X13)

2 796 ₽/шт

11

09262-30113

BEARING(30X55X13)

3 402 ₽/шт

12

09280-45004

O RING(D:2.4,ID:44.7)

201 ₽/шт

13

09283-25076

Сальник

759 ₽/шт

14

09440-45004

SPRING

15 290 ₽/шт
