Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI AN 650 Burgman SUZUKI AN650 K3 Burgman 650 (E03,E28,E33) SUZUKI (VIN: JS1BU111) 52 - FRONT BOX

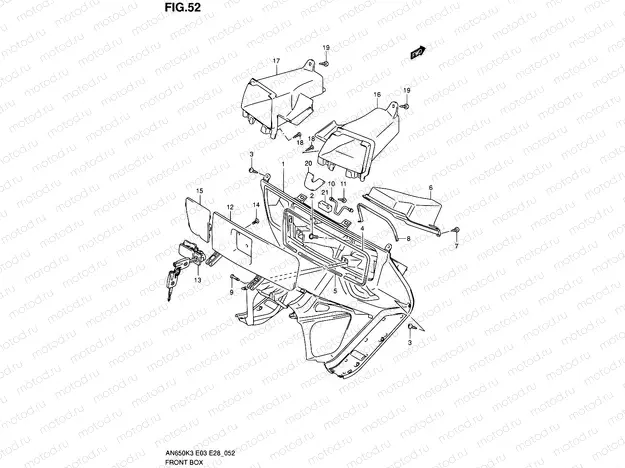

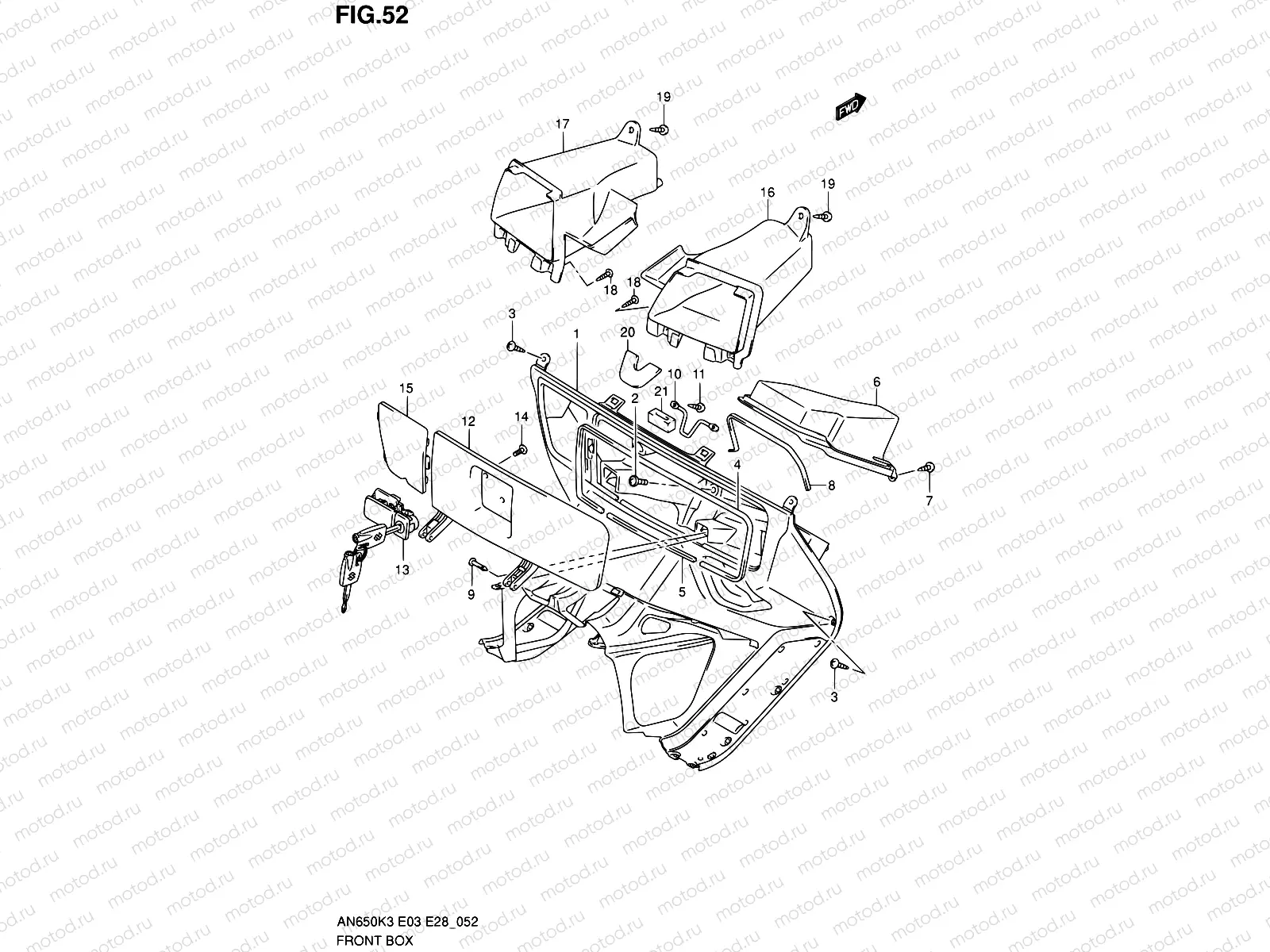

52 - FRONT BOX

52 - FRONT BOX

Например: 92111-10G00-Y0J

1

92111-10G00-Y0J

BOX,FR

14 131 ₽/шт

1

92110-10GA0-Y0J

BOX,FR

32 258 ₽/шт

1

92111-10G10-Y0J

BOX,FR

19 120 ₽/шт

1

92110-10GB0-Y0J

OX,FR

32 258 ₽/шт

2

09136-06061

Винт 6X16

1 520 ₽/шт

2

09139-06120

Винт

136 ₽/шт

3

03541-0516A

Болт

81 ₽/шт

4

92114-14F01

CUSHION,FR BOX NO,1

547 ₽/шт

5

92114-14F01

CUSHION,FR BOX NO,1

547 ₽/шт

6

92112-10G00

COVER,FR BOX INNER

2 581 ₽/шт

7

03541-0516A

Болт

81 ₽/шт

8

92116-05H00

CUSHION,FR BOX INNER

352 ₽/шт

9

73423-50G00

PIN,GLOVE BOX HINGE

258 ₽/шт

10

92171-10G01

STRIKER,FR BOX

723 ₽/шт

11

03541-0516A

Болт

81 ₽/шт

12

92120-10G00-Y0J

LID,FR BOX

5 943 ₽/шт

13

92100-10841

LOCK SET,LID

9 814 ₽/шт

14

02142-0512A

Болт

85 ₽/шт

15

92161-10G00-Y0J

LID,CLNR MAINT

2 295 ₽/шт

16

92141-10G00

BOX,FR PANEL,R

2 720 ₽/шт

17

92151-10G00

BOX,FR PANEL,L

2 972 ₽/шт

18

03541-0516A

Болт

81 ₽/шт

19

03541-0616A

Болт

85 ₽/шт

20

92116-10G00

CUSHION,FR BOX NO.3

442 ₽/шт

21

92117-10G00

CUSHION,FR BOX NO.4

594 ₽/шт
