Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI AN 650 Burgman SUZUKI AN650 K3 Burgman 650 (E03,E28,E33) SUZUKI (VIN: JS1BU111) 58 - HANDLE LEVER (MODEL K3/K4)

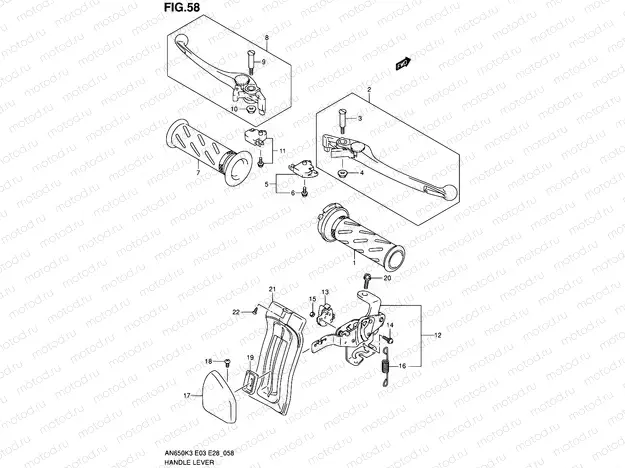

58 - HANDLE LEVER (MODEL K3/K4)

58 - HANDLE LEVER (MODEL K3/K4)

Например: 57110-46E02

1

57110-46E02

Рукоятка газа (чёрная)

4 087 ₽/шт

2

57420-33E01

LEVER ASSY,ADJUST

8 172 ₽/шт

3

57431-17C00

Болт

697 ₽/шт

4

08316-1006B

Гайка

81 ₽/шт

5

57460-14J02

Switch Assy,stop

3 366 ₽/шт

6

57465-17C00

Болт

170 ₽/шт

7

57211-22D02-291

Рукоятка руля, левая (чёрная)

1 465 ₽/шт

8

57500-10G00

LEVER ASSY,RR BRAKE

5 904 ₽/шт

9

57431-17C00

Болт

697 ₽/шт

10

08316-1006B

Гайка

81 ₽/шт

11

57560-14F01

SWITCH ASSY,RR BRAKE

1 994 ₽/шт

11

57560-14J02

Switch Assy,rr Brake

2 380 ₽/шт

12

57800-10G01

LEVER ASSY,BRAKE LOCK

14 076 ₽/шт

13

57460-14J02

Switch Assy,stop

3 366 ₽/шт

14

57852-10G00

Болт

266 ₽/шт

15

57853-10G00

Гайка

344 ₽/шт

16

57804-10G00

SPRING,RETURN

817 ₽/шт

17

57820-10G00

KNOB,BRAKE LOCK

2 796 ₽/шт

18

02112-0408B

Болт

940 ₽/шт

19

57831-10G00

COVER,BRAKE LOCK KNOB

594 ₽/шт

20

01550-0612B

БОЛТ

81 ₽/шт

21

57950-10G00

PLATE,LEVER SEAL

3 363 ₽/шт

22

03512-0512A

Vis
