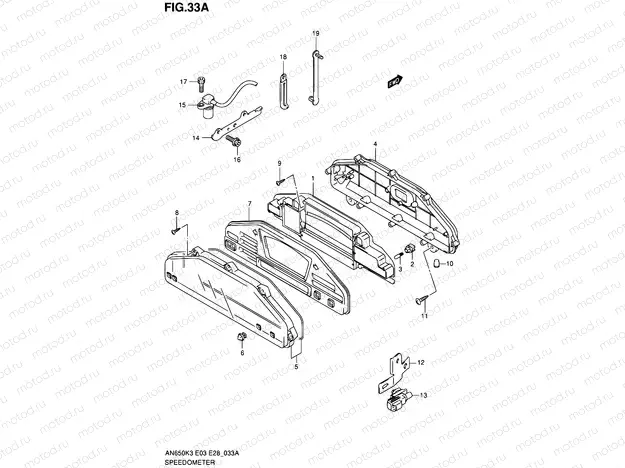

33A - SPEEDOMETER (AN650K5)

33A - SPEEDOMETER (AN650K5)

Например: 34120-10GE0

1

34120-10GE0

Speedometer (mile/kilo)

1

34120-10GC0

Speedometer (kilo)

2

34175-78900

SOCKET

162 ₽/шт

3

09471-12055-LCP

Bulb,12v,1.4w g

4

34111-10G00

Lower case

5

34150-10G00

Стекло боковое

12 113 ₽/шт

6

34124-32F00

Резинка переключателя

285 ₽/шт

7

34125-10G00

Катафот

8 446 ₽/шт

8

34383-35F00

SCREW(3X16)

207 ₽/шт

9

34149-10G00

Vis

10

34955-10G00

CUSHION,SPEEDOMETER

266 ₽/шт

11

03541-0520B

Болт

1 330 ₽/шт

12

34898-10G00

Tartó konzol

13

95643-58J00

ДАТЧИК ТЕМПЕРАТУРЫ ОКРУЖАЮЩЕЙ СРЕДЫ

5 834 ₽/шт

14

34938-10G00

UIDE,SENSOR LEAD

387 ₽/шт

15

34990-10G31

Sensor,speed

11 875 ₽/шт

16

07120-0612B

БОЛТ

184 ₽/шт

17

07130-0616B

БОЛТ

97 ₽/шт

18

09404-06039

Clamp(L:65)

194 ₽/шт

19

36651-48E00

CLAMP(L:63)

204 ₽/шт
