Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI AN 650 Burgman SUZUKI AN650 K3 Burgman 650 (E03,E28,E33) SUZUKI (VIN: JS1BU111) 18A - WATER PUMP (MODEL K5)

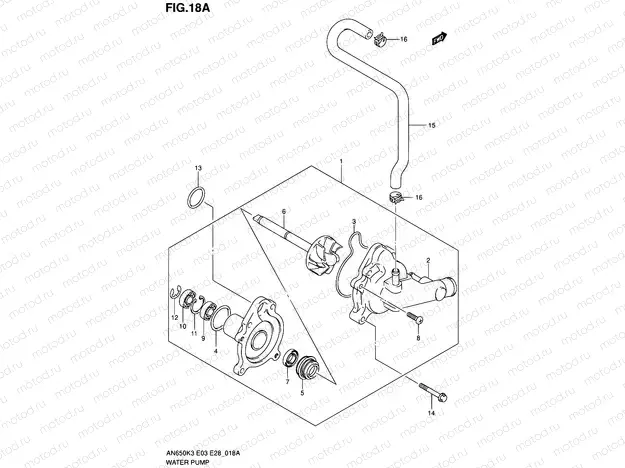

18A - WATER PUMP (MODEL K5)

18A - WATER PUMP (MODEL K5)

Например: 17400-10G11

1

17400-10G11

Pump Assy,water

21 505 ₽/шт

2

17411-10G10

COVER

7 859 ₽/шт

3

17418-10G10

O RING

791 ₽/шт

4

17435-33400

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

1 001 ₽/шт

5

17470-02F11

САЛЬНИК МЕХАНИЧЕСКИЙ НАСОСА ВОДЯНОГО

2 528 ₽/шт

6

17491-10G10

Импеллер

3 597 ₽/шт

7

17461-48G00

Сальник

1 001 ₽/шт

8

02112-0616B

Болт

85 ₽/шт

9

08110-68000

BEARING

954 ₽/шт

10

08110-69000

ПОДШИПНИК ВЫЖИМНОЙ

954 ₽/шт

11

08331-41209

CIRCLIP

1 250 ₽/шт

12

08332-1108A

КОЛЬЦО

1 060 ₽/шт

13

09280-22001

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

178 ₽/шт

14

01547-0635B

Болт

97 ₽/шт

15

17856-10G00

HOSE,WATER BYPASS

2 320 ₽/шт

16

09401-12414

CLIP

170 ₽/шт
