Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI AN 650 Burgman SUZUKI AN650 K3 Burgman 650 (E03,E28,E33) SUZUKI (VIN: JS1BU111) 23 - CLUTCH

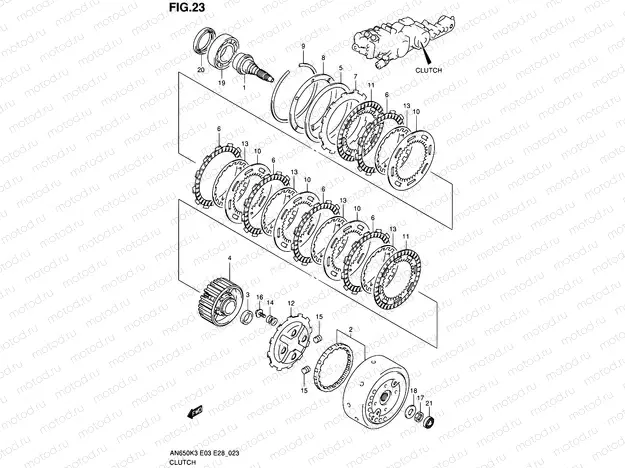

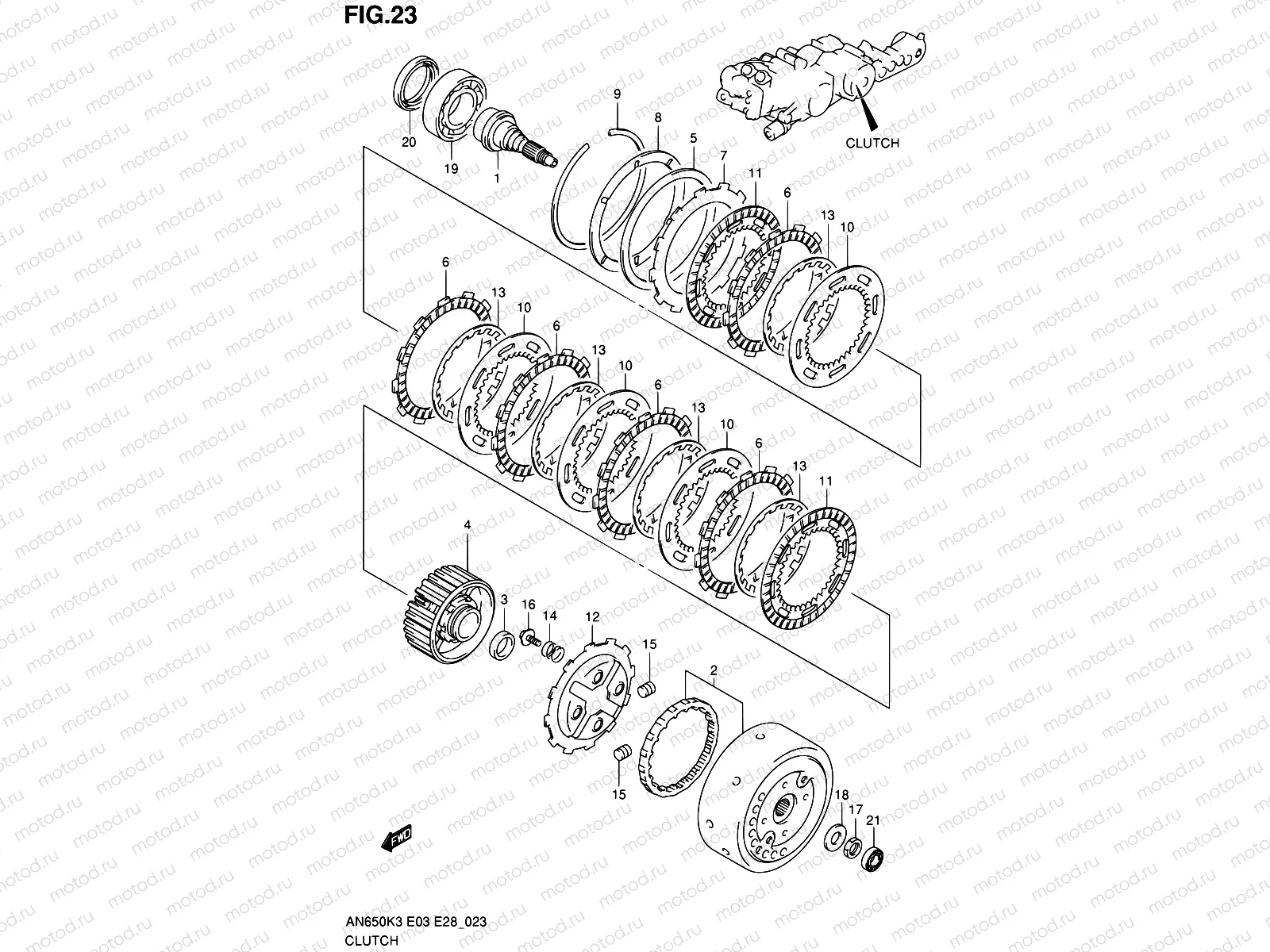

23 - CLUTCH

23 - CLUTCH

Например: 21421-10G00

1

21421-10G00

Вал сцепления

12 903 ₽/шт

2

21221-10820

HOUSING SET,CLUTCH

26 979 ₽/шт

2

21221-10830

HOUSING SET,CLUTCH

22 483 ₽/шт

3

21222-10G00

SPACER,CLUTCH HOUSING

1 193 ₽/шт

4

21321-10811

GEAR SET,HUB CLUTCH SLEEVE

34 017 ₽/шт

5

21412-10G00

WASHER,CLUTCH SPRING WAVE

3 795 ₽/шт

6

21441-24F00

PLATE, CLUTCH DRIVE 1

4 603 ₽/шт

7

21443-10G00

PLATE,CLUTCH DRIVE OUTER

3 795 ₽/шт

8

21446-10G00

SEAT,CLUTCH SPRING

2 180 ₽/шт

9

21447-10G00

CIRCLIP,CLUTCH OUTER PLATE

646 ₽/шт

10

21451-10G10

PLATE,CLUTCH DRIVEN NO.1

1 696 ₽/шт

11

21452-10G10

PLATE,CLUTCH DRIVEN NO.2

4 845 ₽/шт

12

21465-10G00

PLATE,CLUTCH INNER

1 693 ₽/шт

13

21472-10G10

ДИСК СЦЕПЛЕНИЯ

1 308 ₽/шт

14

21512-10G00

SPRING,CLUTCH REACTION

430 ₽/шт

15

21650-10G00

ROLLER,CLUTCH

888 ₽/шт

16

09116-05020

Болт 5X16

1 250 ₽/шт

17

09140-18016

NUT

3 560 ₽/шт

18

09160-18033

WASHER(18X30X2.5)

1 720 ₽/шт

19

09262-50003

BEARING(50X72X12)

6 542 ₽/шт

20

09283-50009

Уплотнение вала муфты

868 ₽/шт

21

08123-63017

BEARING

2 192 ₽/шт
