Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI AN 650 Burgman SUZUKI AN650 K3 Burgman 650 (E03,E28,E33) SUZUKI (VIN: JS1BU111) 70 - REAR SWINGING ARM

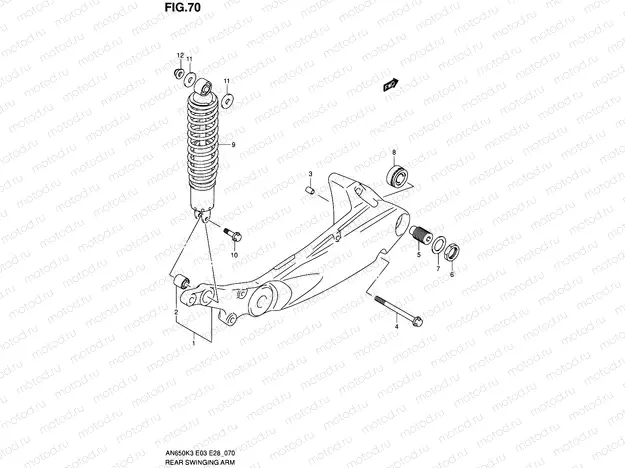

70 - REAR SWINGING ARM

70 - REAR SWINGING ARM

Например: 61000-10G00-12Z

1

61000-10G00-12Z

Swingingarm ass

1

61000-10G10-12Z

SWINGINGARM ASSY,RR

54 230 ₽/шт

2

09319-10032

Втулка

580 ₽/шт

3

11319-33E50

PIN,CRANKCASE

289 ₽/шт

4

09103-10299

БОЛТ

3 640 ₽/шт

5

61213-24A00

BOLT,RR SWGARM PIVOT

2 111 ₽/шт

6

09140-24007

ШАЙБА

2 390 ₽/шт

7

09160-24034

WASHER(24X42X1.2)

1 490 ₽/шт

8

09265-17012

ПОДШИПНИК

4 301 ₽/шт

9

62100-10G00-019

ABSORBER ASSY,RR SHOCK

30 694 ₽/шт

9

62100-10G11-019

Absorber Assy,rear Shock

36 168 ₽/шт

10

62313-40B00

Болт нижней опоры

250 ₽/шт

11

09160-10501

WASHER,10.5X30X2.3

136 ₽/шт

12

08319-31107

Гайка

210 ₽/шт
