Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI AN 650 Burgman SUZUKI AN650 K3 Burgman 650 (E03,E28,E33) SUZUKI (VIN: JS1BU111) 32 - ELECTRICAL (MODEL K3/K4)

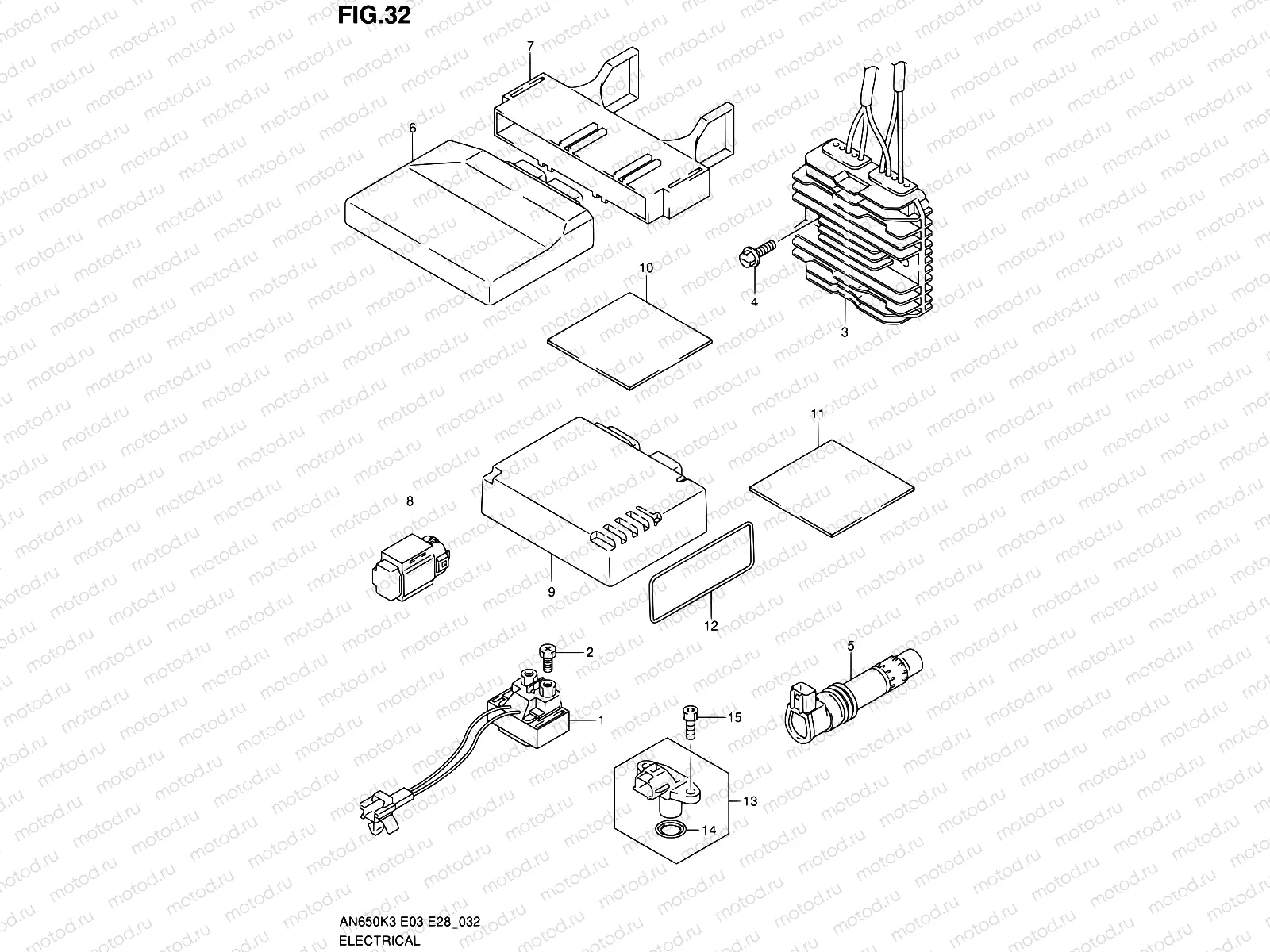

32 - ELECTRICAL (MODEL K3/K4)

32 - ELECTRICAL (MODEL K3/K4)

Например: 31800-10G02

1

31800-10G02

Relais - démarreur

2

09128-06013

SCREW(6X8)

740 ₽/шт

3

02162-0620C

Болт

85 ₽/шт

3

32800-10G20

RECTIFIER ASSY

46 189 ₽/шт

4

02162-0625A

Болт выпрямителя

81 ₽/шт

5

33410-35F11

Bobine d'allumage

6

32920-10G11

Control unit, fi

6

32920-10G61

Control unit, fi

7

32980-10G00

HOLDER,FI CONTROL UNIT

1 103 ₽/шт

8

33960-06G10

SENSOR ASSY,FUEL CUT

6 379 ₽/шт

9

32910-10G10

Control unit, cvt

9

32910-10G60

Control unit, cvt

10

33651-37000

PROTECTOR(170X95X3.0)

468 ₽/шт

11

33652-07D00

КОЖУХ

299 ₽/шт

12

09280-57002

Кольцо (D:3.5 ID:56.5)

198 ₽/шт

13

32160-02F00

SENSOR ASSY,CAM POSITION

15 555 ₽/шт

14

32161-02F00

PACKING

555 ₽/шт

15

07130-0616B

БОЛТ

97 ₽/шт
