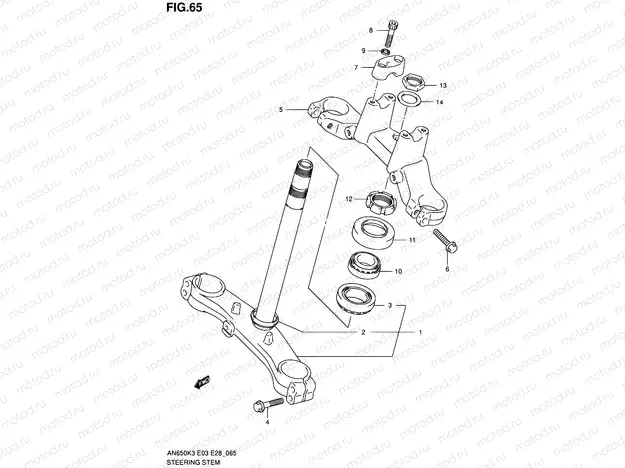

65 - STEERING STEM

65 - STEERING STEM

Например: 51410-10G00

1

51410-10G00

BRACKET,FR FORK UNDER

46 750 ₽/шт

1

51410-10G50

STEM,STEERING

50 490 ₽/шт

2

51644-12C00

САЛЬНИК

727 ₽/шт

3

09265-30020

BEARING(30X55X17)

2 343 ₽/шт

4

01550-08407

Болт 8 X 40

2 070 ₽/шт

4

51451-10G00

Болт

340 ₽/шт

5

51311-10G00

Bracket,upper

6

51352-10G00

Болт

348 ₽/шт

7

56211-10G00

HOLDER,HANDLE

2 014 ₽/шт

8

07130-08307

Болт

146 ₽/шт

9

09164-08015

Шайба

162 ₽/шт

10

09265-25038

ПОДШИПНИК

2 423 ₽/шт

11

51643-40503

Seal,dust

727 ₽/шт

12

51631-31F00

NUT,STEERING STEM

997 ₽/шт

13

51353-10G00

Гайка

1 428 ₽/шт

14

51356-10D03

Шайба

387 ₽/шт
