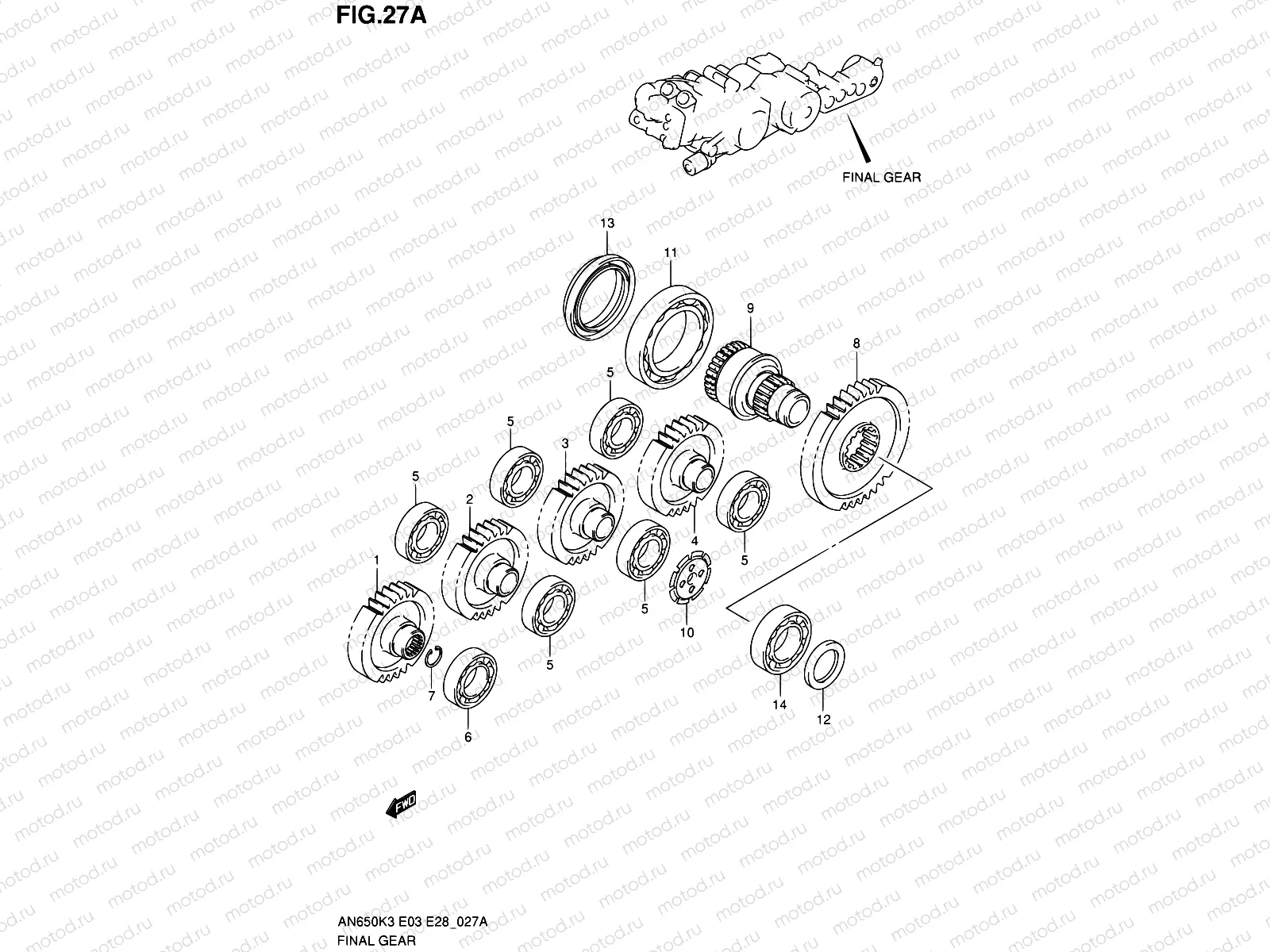

27A - FINAL GEAR (MODEL K5)

27A - FINAL GEAR (MODEL K5)

Например: 27311-10G20

1

27311-10G20

EAR,FINAL DRIVE

8 094 ₽/шт

2

27351-10G21

EAR,IDLE NO.1

8 876 ₽/шт

3

27352-10G00

ear,idle no.2

4

27353-10G00

EAR,IDLE NO.3(NT:34)

16 203 ₽/шт

5

08113-62060

BEARING

2 111 ₽/шт

6

09262-35070-000

Подшипник

2 343 ₽/шт

7

08331-41229

CIRCLIP

1 370 ₽/шт

8

27321-10G20

EAR,FINAL DRIVEN

9 267 ₽/шт

9

27322-10G00

HUB,FINAL DRIVEN GEAR

11 926 ₽/шт

10

27328-10G00

PLATE

442 ₽/шт

11

09262-70001

Подшипник

8 758 ₽/шт

12

09283-38009

SEAL,OIL(38X54X6)

1 083 ₽/шт

13

09289-70001

Сальник

3 957 ₽/шт

14

08113-60087

Подшипник B1 40X80X18

1 600 ₽/шт
