Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI AN 650 Burgman SUZUKI AN650 K3 Burgman 650 (E03,E28,E33) SUZUKI (VIN: JS1BU111) 46 - FRONT LEG SHIELD (AN650K3/K4/K5)

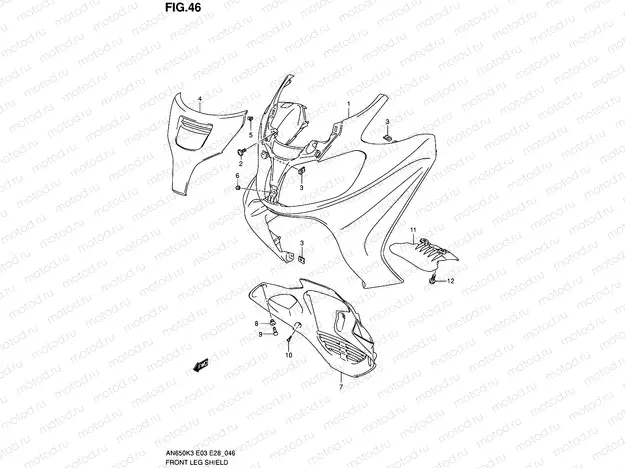

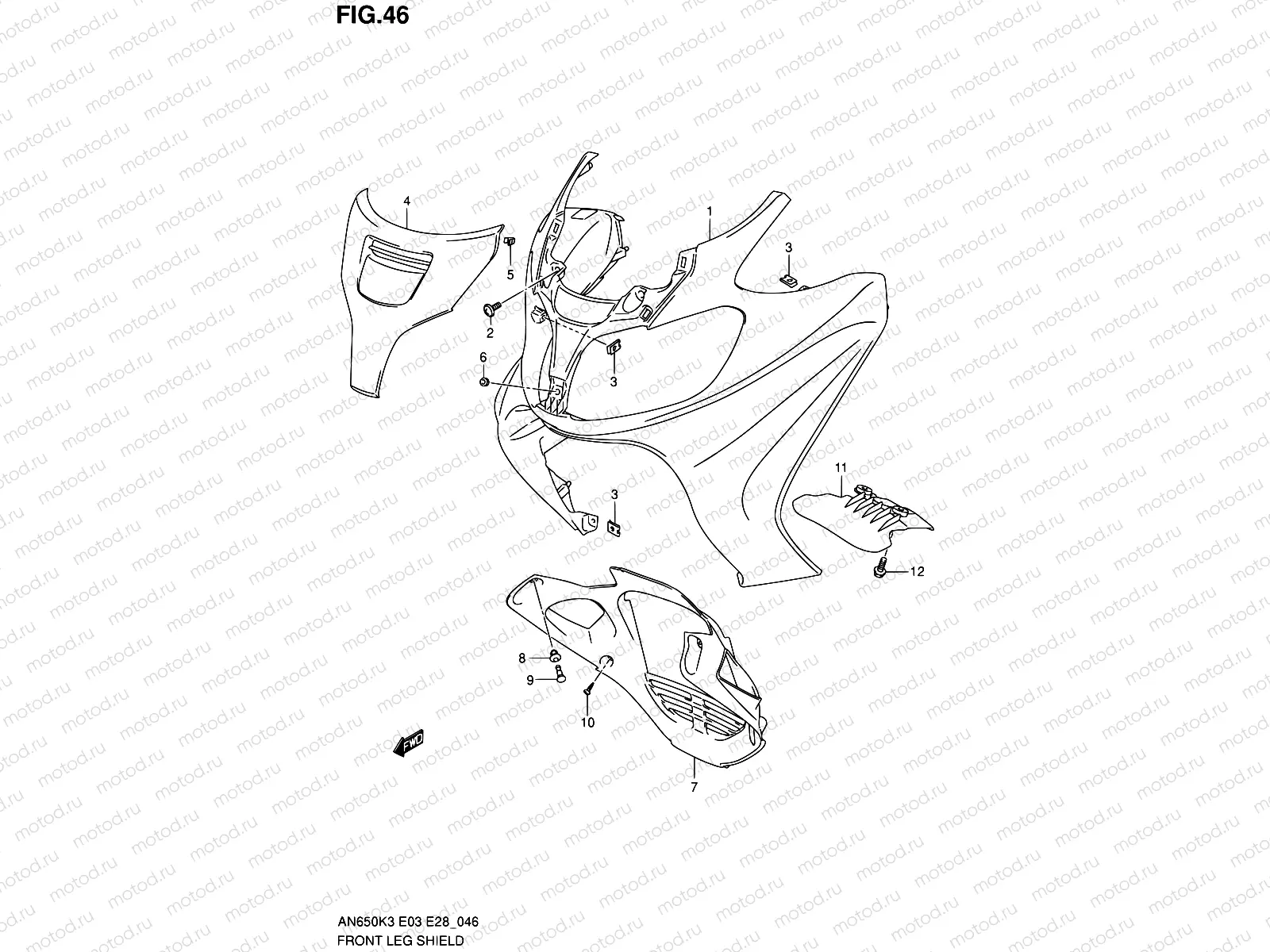

46 - FRONT LEG SHIELD (AN650K3/K4/K5)

46 - FRONT LEG SHIELD (AN650K3/K4/K5)

Например: 48111-10G00-YD8

1

48111-10G00-YD8

Обтекатель передний (silver)

141 814 ₽/шт

1

48111-10G00-Y7H

Shield,leg fron

1

48111-10G00-YV4

SHIELD,LEG FR

144 738 ₽/шт

1

48111-10G00-33J

Shield, leg front (black)

1

48111-10G00-YAY

SHIELD,LEG FR

147 297 ₽/шт

1

48111-10G00-YBA

SHIELD,LEG FR

144 738 ₽/шт

2

09136-06061

Винт 6X16

1 520 ₽/шт

3

09148-05038

ГАЙКА

97 ₽/шт

4

48130-10G00-Y7L

COVER,FR LEG SHIELD(BLACK)

6 803 ₽/шт

4

48130-10G00-019

COVER,FR LEG SHIELD(BLACK)

6 686 ₽/шт

4

48130-10G00-YAU

COVER,FR LEG SHIELD(GRAY)

11 795 ₽/шт

4

48130-10G00-YD8

COVER,FR LEG SHIELD(SILVER)

11 795 ₽/шт

4

48130-10G00-YC3

OVER,FR LEG SHIELD(WHITE)

16 344 ₽/шт

4

48130-10G00-YBA

Cover comp,fr l

5

09409-08326

КЛИПСА КАНСОЛИ ЦЕНТРАЛЬНОЙ, ПЛАСТИК

81 ₽/шт

6

09320-06027

Cushion,fuel Tank Cover Center

172 ₽/шт

7

48137-10G01-Y0J

SHIELD,LEG LWR

8 446 ₽/шт

8

09409-08329

ШАЙБА

119 ₽/шт

9

09409-08330

Плунжер

119 ₽/шт

10

03541-0516A

Болт

81 ₽/шт

11

94458-10G00

COVER,LWR BRACKET

1 236 ₽/шт

12

09111-06107

БОЛТ

81 ₽/шт
