Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI AN 650 Burgman SUZUKI AN650 K3 Burgman 650 (E03,E28,E33) SUZUKI (VIN: JS1BU111) 64B - FRONT FORK DAMPER (MODEL K5)

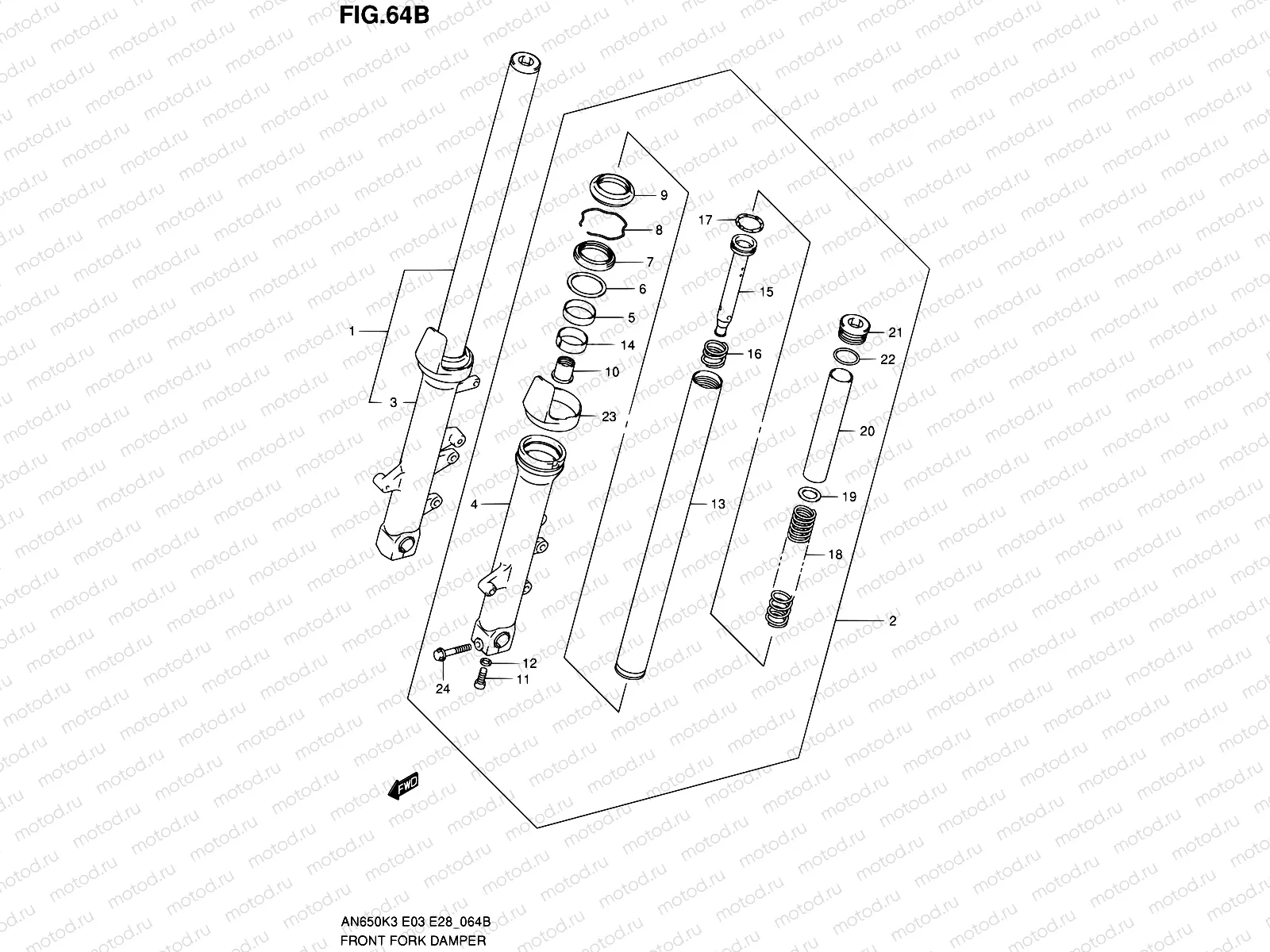

64B - FRONT FORK DAMPER (MODEL K5)

64B - FRONT FORK DAMPER (MODEL K5)

Например: 51103-10G50

1

51103-10G50

Перо вилки в сборе, правое

74 052 ₽/шт

2

51104-10G50

Перо вилки в сборе, левое

61 710 ₽/шт

3

51130-10G10

TUBE,OUTER,R

38 709 ₽/шт

4

51140-10G10

TUBE,OUTER,L

38 709 ₽/шт

5

51167-26E10

Металическая вставка

765 ₽/шт

6

51158-05A00

Шайба

299 ₽/шт

7

51153-10G50

Сальник

891 ₽/шт

8

51156-49440

RING,OIL SEAL STOPPER

204 ₽/шт

9

51173-14F00

Уплотнение

921 ₽/шт

10

51195-33D10

PIECE,OIL LOCK

1 197 ₽/шт

11

51147-16510

BOLT,FORK CYLINDER(10X25)

238 ₽/шт

12

51148-41310

GASKET

170 ₽/шт

13

51110-10G00

TUBE,INNER

26 393 ₽/шт

14

51121-33D10

Направляющая втулка

799 ₽/шт

15

51146-10G10

Цилиндр

5 865 ₽/шт

16

51177-10G10

Пружина

864 ₽/шт

17

51196-31F00

Кольцо поршневое

561 ₽/шт

18

51171-10G10

Пружина

4 888 ₽/шт

19

51356-10D03

Шайба

387 ₽/шт

20

51176-10G10

Кольцо/шайба

751 ₽/шт

21

51351-10G10

CAP,FORK

3 206 ₽/шт

22

09280-32001

O RING(D:3.5,ID:31.7)

275 ₽/шт

23

51201-31F00

PROTECTOR

981 ₽/шт

24

51166-10G10

BOLT,AXLE STOPPER

293 ₽/шт
