Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI AN 650 Burgman SUZUKI AN650 K3 Burgman 650 (E03,E28,E33) SUZUKI (VIN: JS1BU111) 17 - OIL COOLER

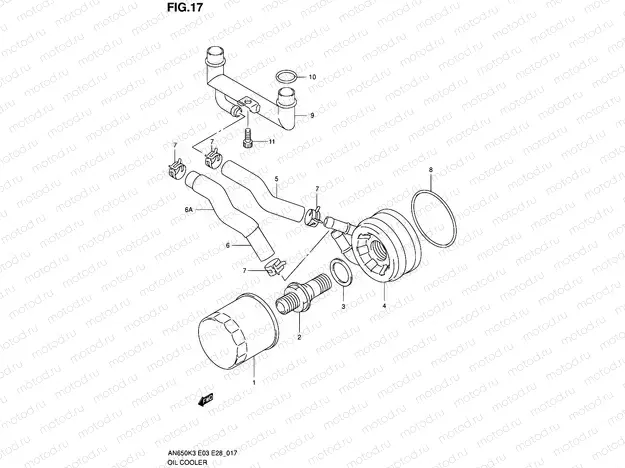

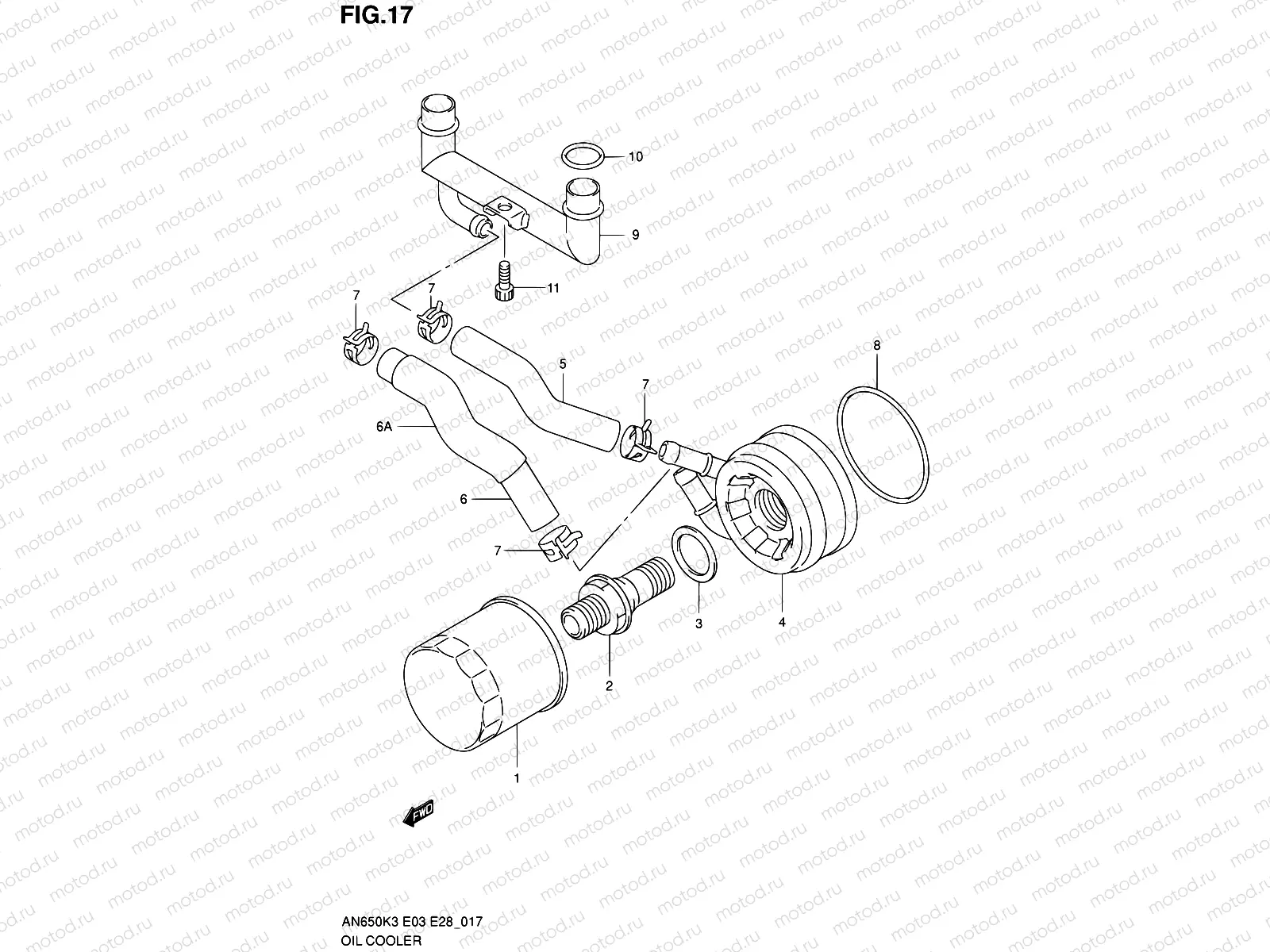

17 - OIL COOLER

17 - OIL COOLER

Например: 16510-07J00

1

16510-07J00

ФИЛЬТР МАСЛЯНЫЙ

1 777 ₽/шт

2

16591-02F00

Болт соединяющий

3 315 ₽/шт

3

09181-25160

Шайба

187 ₽/шт

4

16600-10G00

COOLER ASSY,OIL

43 010 ₽/шт

5

16461-10G00

HOSE,OIL COOLER INLET

1 547 ₽/шт

6

16471-10G00

HOSE,OIL COOLER OUTLET

1 134 ₽/шт

6

16479-10G01

Protector,hose Heat

575 ₽/шт

7

09401-16407

CLIP

162 ₽/шт

8

09280-64003

Кольцо уплотнительное

291 ₽/шт

9

17880-10G00

PIPE,WATER

4 497 ₽/шт

10

09280-18009

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

1 017 ₽/шт

11

09106-06075

БОЛТ

1 450 ₽/шт
