Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI AN 650 Burgman SUZUKI AN650 K3 Burgman 650 (E03,E28,E33) SUZUKI (VIN: JS1BU111) 7 - CRANKSHAFT

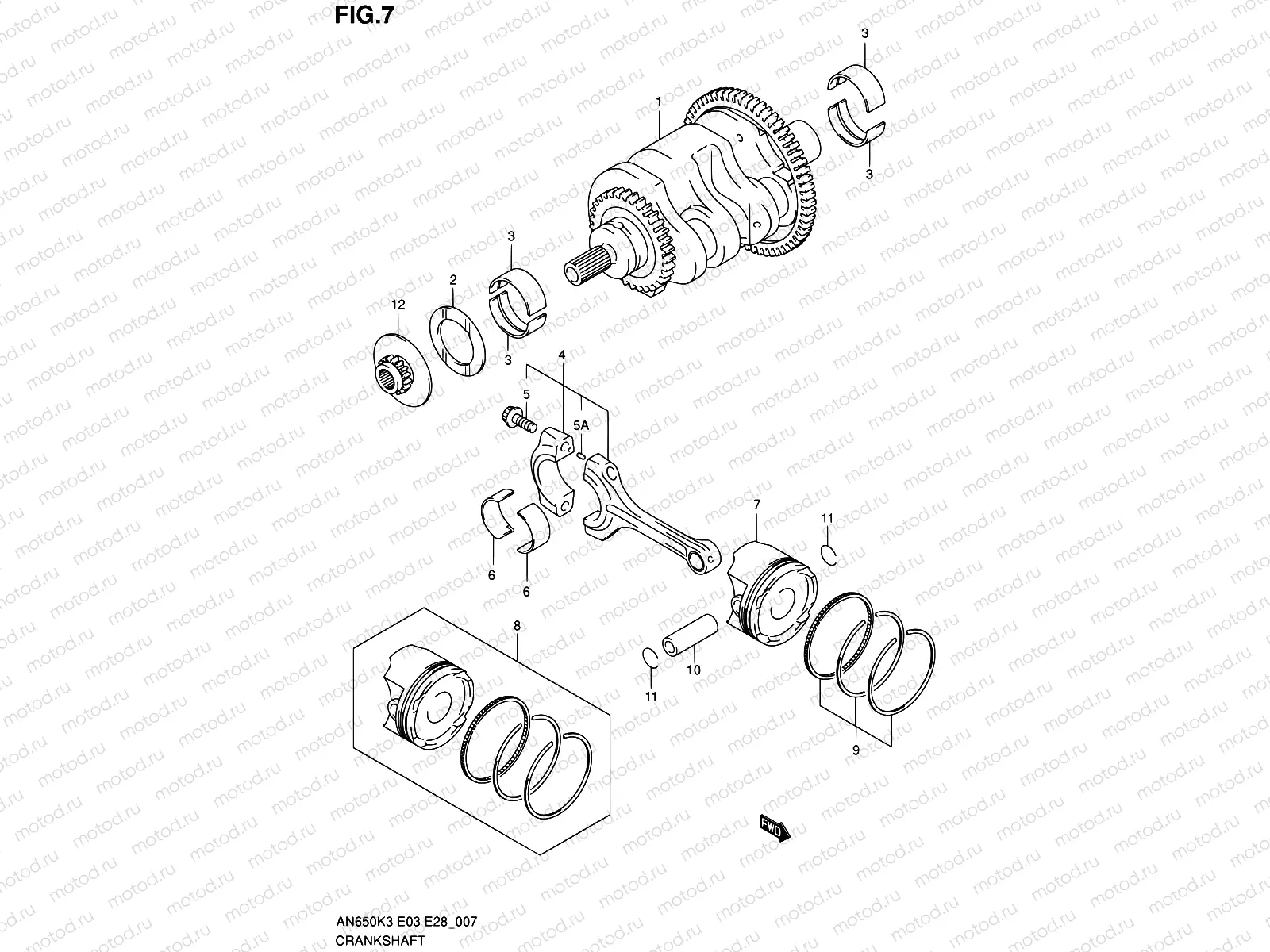

7 - CRANKSHAFT

7 - CRANKSHAFT

Например: 12200-10820

1

12200-10820

Crankshaft set

1

12200-10830

Коленчатый вал

88 638 ₽/шт

2

09160-48001

WASHER(48.1X64X1.94)

2 444 ₽/шт

2

09160-48002

Осевой вкладыш (48.1X64X1.96)

2 444 ₽/шт

2

09160-48003

WASHER(48.1X64X1.99)

14 580 ₽/шт

2

09160-48004

Осевой вкладыш (48.1X64X2.01)

14 580 ₽/шт

2

09160-48005

WASHER, CRANK THRUST

14 580 ₽/шт

2

09160-48006

Осевой вкладыш (48.1X64X2.06)

14 580 ₽/шт

2

09160-48007

WASHER(48.1X64X2.09)

14 580 ₽/шт

2

09160-48008

WASHER(48.1X64X2.11)

14 580 ₽/шт

2

09160-48009

WASHER(48.1X64X2.14)

14 580 ₽/шт

2

09160-48010

Осевой вкладыш (48.1X64X2.16)

14 580 ₽/шт

3

12229-10G01-0A0

BEARING,CRANKSHAFT

1 153 ₽/шт

3

12229-10G01-0B0

EARING,CRANKSHAFT

1 292 ₽/шт

3

12229-10G01-0C0

BEARING,CRANKSHAFT

1 292 ₽/шт

4

12160-10G10

CONNROD ASSY

12 903 ₽/шт

5

12163-10G00

Болт

1 146 ₽/шт

5

12165-27A50

PIN, CONN ROD

90 ₽/шт

6

12164-10G00-0A0

BEARING,CRANK PIN

1 252 ₽/шт

6

12164-10G00-0B0

EARING,CRANK PIN

1 252 ₽/шт

6

12164-10G00-0C0

BEARING,CRANK PIN

1 252 ₽/шт

6

12164-10G00-0D0

BEARING,CRANK PIN

1 252 ₽/шт

7

12111-10G00-0F0

PISTON

9 306 ₽/шт

7

12111-10G11-0F0

PISTON

7 742 ₽/шт

8

12100-10G00-050

PISTON SET(OS:0.5)

17 360 ₽/шт

9

12140-46E13

Поршневые кольца

10 200 ₽/шт

9

12140-10G00

Кольца поршневые

9 149 ₽/шт

10

12151-10G00

Палец поршня

1 028 ₽/шт

11

09381-16001

Стопорное кольцо

113 ₽/шт

12

12731-10G00

Sprocket,cam ch

12

12731-10G10

SPROCKET,CAM CHAIN DRIVE

5 435 ₽/шт
