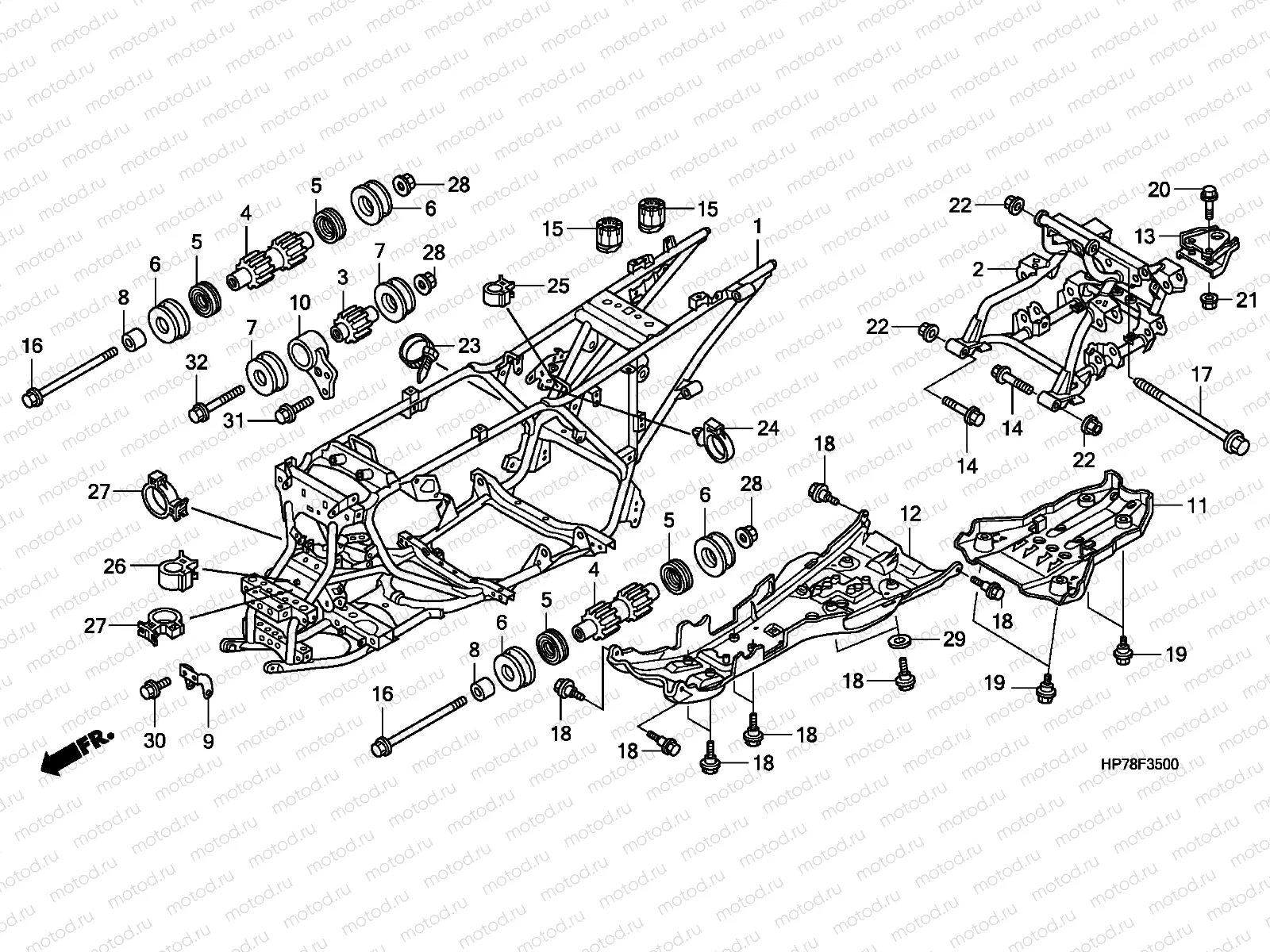

F-35 FRAME BODY

F-35 FRAME BODY
Например: 50100-HP7-A00
1
50100-HP7-A00
BODY COMP., FRAME
2
50200-HP7-A00
FRAME COMP., RR. INDEPEND
3
50201-HP5-600
RUBBER, ENGINE HEAD MOUNT
4
50202-HP0-A50
RUBBER, ENGINE LOWER MOUN
5
50203-HM7-003
DUST SEAL, ENGINE MOUNTIN
6
50204-HM8-000
RUBBER C, MOUNTING
7
50204-HP5-600
RUBBER C, MOUNTING
8
50205-HM8-000
COLLAR, ENGINE HANGER
9
50350-HP7-A00
BRKTFR GEAR CASE
10
50351-HP5-600
BRACKET, HEAD HANGER
11
50355-HP7-A00
SKIDRR GEAR CASE
12
50360-HP5-601
GUARD, ENGINE
13
50810-HN8-000
ITCH COMP., TRAILER
14
52101-HP5-600
BOLTSWINGARMPIV
15
77207-HA0-000
CUSHION, SEAT MOUNTING
503 ₽/шт
16
90103-147-000
BOLT, ENGINE HANGER, 10X1
833 ₽/шт
17
90104-HP7-A00
Vis
18
90111-147-000
Vis
338 ₽/шт
19
90111-187-000
Vis
425 ₽/шт
20
90120-HC4-000
Vis
425 ₽/шт
21
90305-HC0-770
Nut (Lock, 10mm)
311 ₽/шт
22
90305-HC4-000
NUT, SELF-LOCK, 12MM
315 ₽/шт
23
90651-KV6-003
BAND, WIRE, 165MM (BLACK)
311 ₽/шт
24
90652-HC4-003
LAMP, HARNESS
315 ₽/шт
25
90690-GHB-641
CLIP, CABLE, 10MM
208 ₽/шт
26
90690-GHB-651
CLIP, CABLE, 15MM
189 ₽/шт
27
90690-GHB-681
CLIP, CABLE, 30MM
189 ₽/шт
28
94050-10000
Nut
79 ₽/шт
29
94103-08800
Rondelle (8 mm)
41 ₽/шт
30
95701-080-1607
Bolt (95701-08016-07)
63 ₽/шт
31
95701-080-2200
Bolt, flange, 8x22
86 ₽/шт
32
95701-100-6000
Bolt, flange, 10x60
110 ₽/шт
