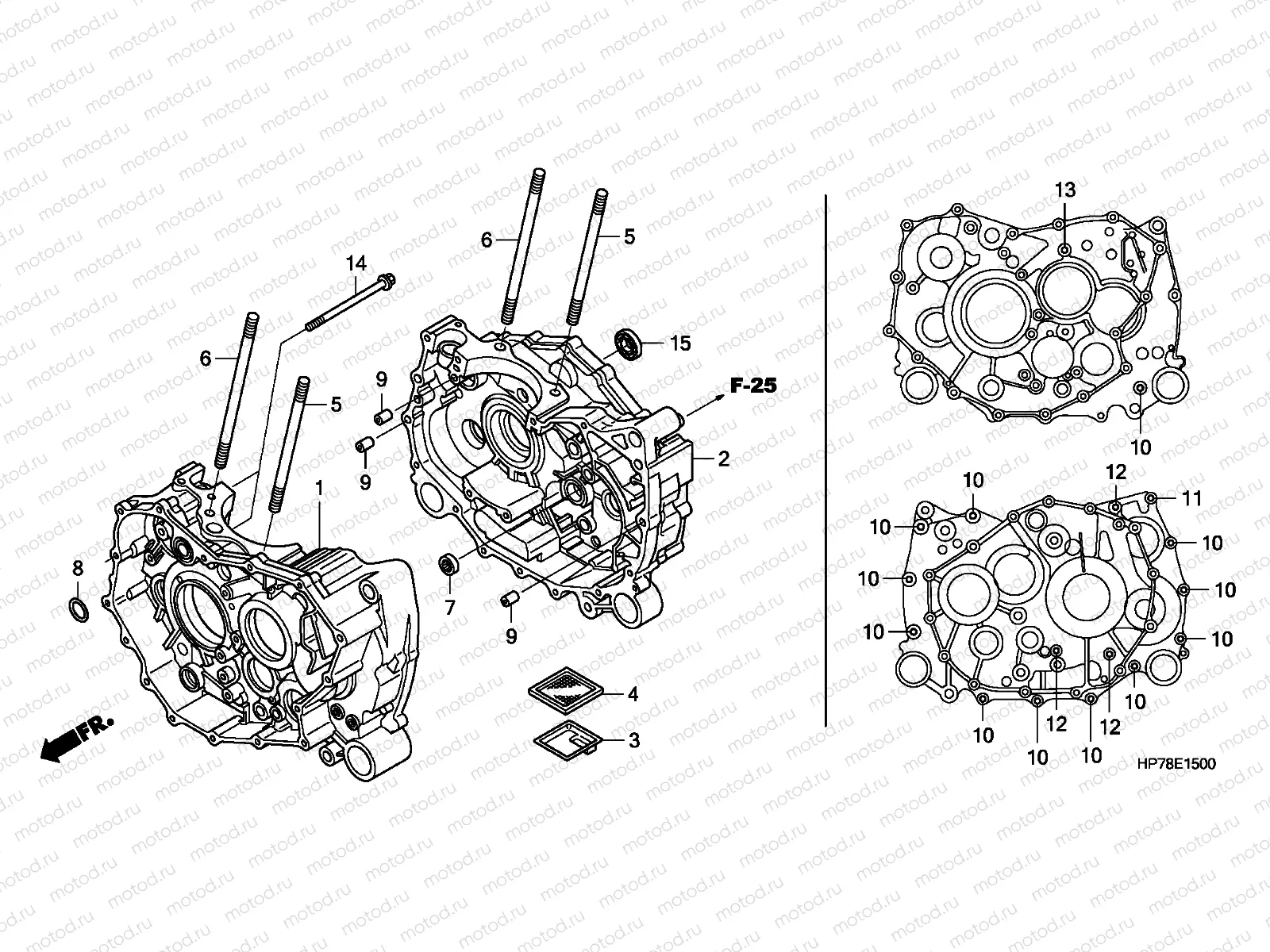

E-15 CRANKCASE

E-15 CRANKCASE
Например: 11100-HP7-A00
1
11100-HP7-A00
CRANKCASE COMP., FR.
2
11200-HP7-A00
CRANKCASE COMP., RR.
3
15153-HP7-A00
STRAINER, OIL
4
15421-HC4-005
Filtre à huile
1 148 ₽/шт
5
90013-HP7-A00
Stud bolt
6
90013-MZ8-B40
Stud bolt (10x177)
884 ₽/шт
7
91106-HN0-671
eedle bearing
8
91304-HP5-601
O-RING, 20.6X1.9
370 ₽/шт
9
94301-08140
Dowel pin (8x14)
94 ₽/шт
10
95701-060-4000
БОЛТ
66 ₽/шт
11
95701-060-6000
Bolt, flange, 6x60
83 ₽/шт
12
95701-060-7000
Bolt, flange, 6x70
86 ₽/шт
13
95701-060-8500
Bolt, flange, 6x85
94 ₽/шт
14
95701-060-9000
Bolt, flange, 6x90
94 ₽/шт
15
96100-600-0000
ПОДШИПНИК
503 ₽/шт
