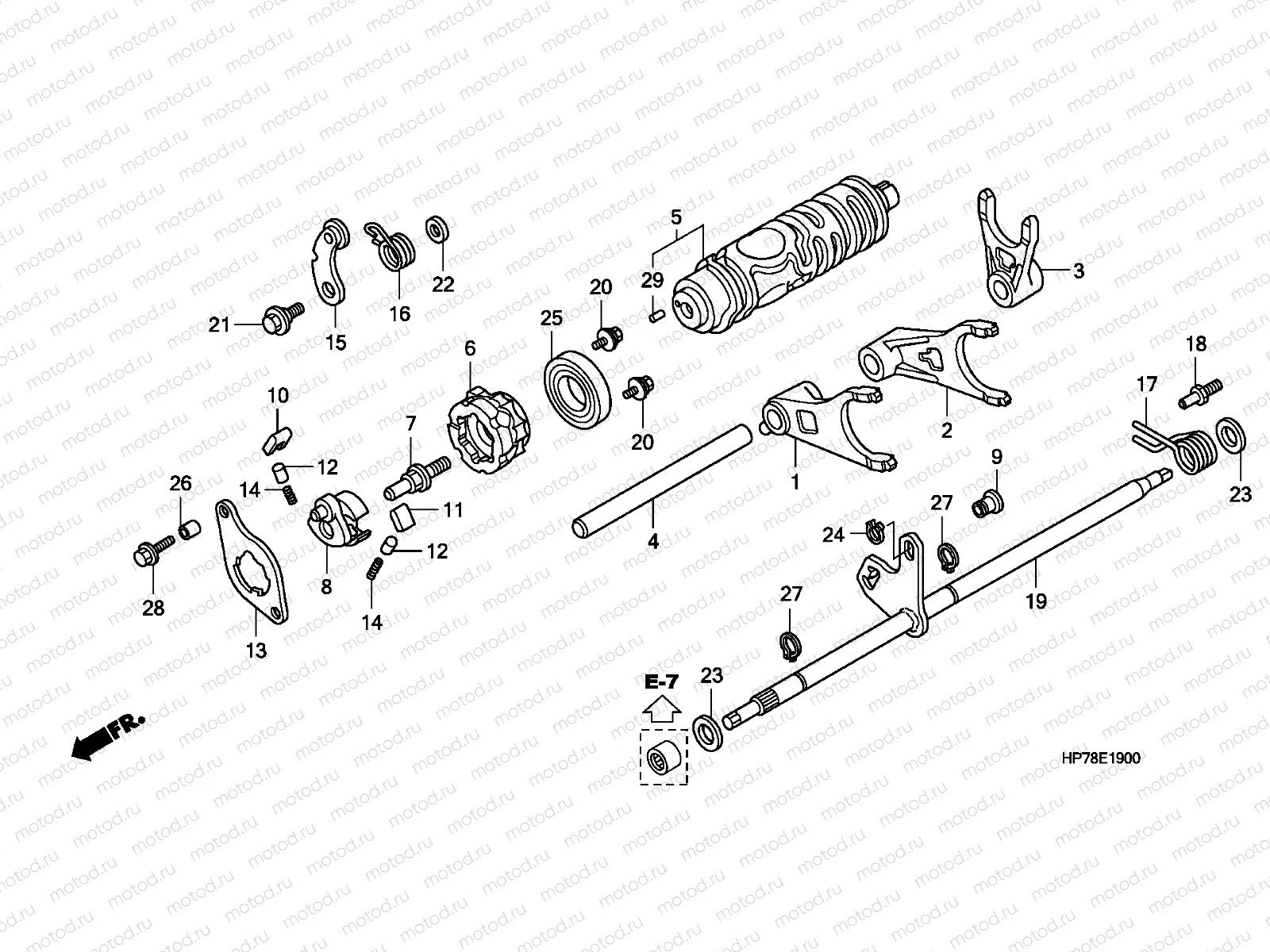

E-19 GEARSHIFT FORK

E-19 GEARSHIFT FORK
Например: 24211-HR6-A60
1
24211-HR6-A60
FORK, FR. GEARSHIFT
2
24212-HR6-A60
FORK, CENTER GEARSHIFT
3
24213-HP7-A00
FORK, RR. GEARSHIFT
4
24241-HP7-A00
SHAFT, GEARSHIFT FORK GUI
5
24310-HP7-A00
DRUM COMP., GEARSHIFT
6
24312-HP7-A01
CENTER, SHIFT DRUM
7
24315-HA0-000
PIN, SHIFTER
760 ₽/шт
8
24321-HC0-000
SHIFTER, DRUM
9
24322-HP7-A00
COLLAR, SHIFTER
10
24324-KA3-711
PAWL A, RATCHET
777 ₽/шт
11
24325-KA3-711
PAWL B, RATCHET
777 ₽/шт
12
24326-KBH-901
PLUNGER, PAWL
594 ₽/шт
13
24328-HP7-A00
LATE, GUIDE
14
24329-KA3-740
SPRING, PAWL PLUNGER
215 ₽/шт
15
24430-HP7-A00
STOPPER COMP., GEARSHIFT
16
24435-HP5-000
SPRING, SHIFT DRUM STOPPE
17
24651-HP7-A00
SPRING, SHIFT RETURN
18
24652-HA0-000
PIN, GEARSHIFT RETURN SPR
519 ₽/шт
19
24680-HP7-A00
SPINDLE COMP., GEARSHIFT
20
90021-HP7-A00
BOLT-WASHER, 6X12
21
90023-MR5-670
BOLT, GEARSHIFT DRUM STOP
283 ₽/шт
22
90417-360-000
WASHER, DRUM STOPPER
236 ₽/шт
23
90451-GF6-000
Rondelle (12mm)
228 ₽/шт
24
90652-KY4-900
CIRCLIP, 8MM
165 ₽/шт
25
91051-719-003
BEARING, 16005 (KOYO)
26
94301-08140
Dowel pin (8x14)
94 ₽/шт
27
94510-12000
CIRCLIP, EXTERNAL, 12MM
47 ₽/шт
28
95701-060-2507
БОЛТ
66 ₽/шт
29
96220-40080
ROLLER, 4X8
24 ₽/шт
