Главная Каталог товаров HONDA EPC 350 cm³ - 699 cm³ HONDA TRX 420 HONDA TRX420FA9 U 2009 HONDA (VIN: 1HFTE37U) F-17 RR. BRAKE MASTER CYLINDER

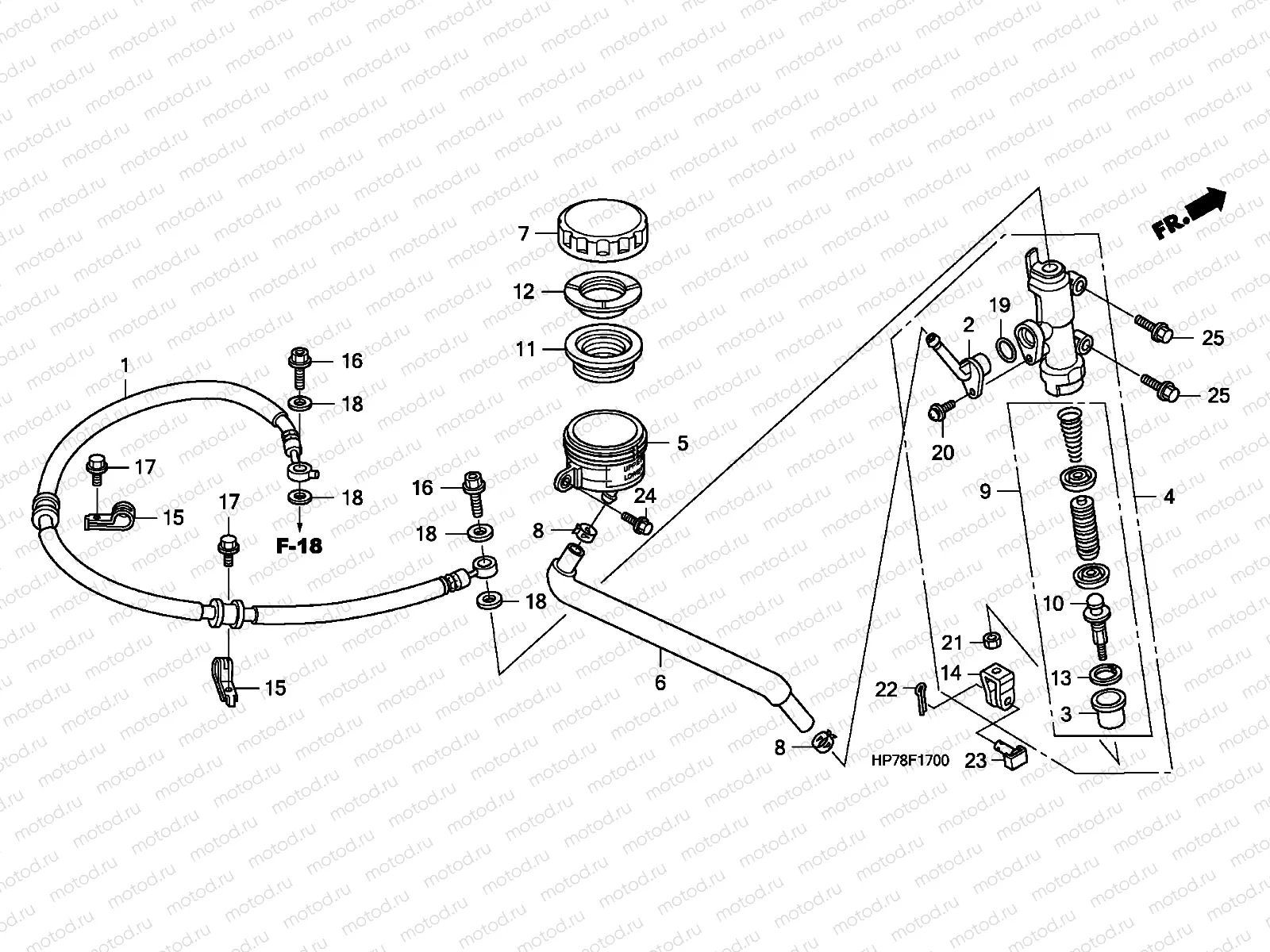

F-17 RR. BRAKE MASTER CYLINDER

F-17 RR. BRAKE MASTER CYLINDER
Например: 43310-HP7-A01
1
43310-HP7-A01
OSE COMPRR BRK
2
43503-MN5-006
CONNECTOR, MASTER CYLINDE
1 147 ₽/шт
3
43504-MB2-006
OOT COMP.
566 ₽/шт
4
43510-HP7-A01
SUB ASSYREARM/C
5
43511-MR7-016
CUP COMP., OIL
2 543 ₽/шт
6
43512-HP7-A01
OSE COMPRR M/C
7
43513-MY1-006
CAP, OIL CUP
1 965 ₽/шт
8
43514-KS6-701
CLAMP, MASTER CYLINDER OI
1 022 ₽/шт
9
43520-MG9-315
Kit de réparation pour de frein (NISSIN)
5 447 ₽/шт
10
43530-KZ4-J21
ROD COMP., PUSH
2 335 ₽/шт
11
45520-300-000
DIAPHRAGM
739 ₽/шт
12
45521-MJ6-006
PLATE, DIAPHRAGM
393 ₽/шт
13
46182-MEL-D21
CIRCLIP
228 ₽/шт
14
46504-MT8-006
JOINT, BRAKE ROD
472 ₽/шт
15
51207-HN2-000
CLAMP A, FR. BRAKE HOSE
16
90145-MS9-612
BOLT, OIL, 10X22 (SAGA)
726 ₽/шт
17
90181-KV3-700
is
181 ₽/шт
18
90545-300-000
Rondelle
291 ₽/шт
19
91212-422-006
O-Ring
283 ₽/шт
20
93893-040-1207
Screw-washer
61 ₽/шт
21
94002-080-000S
Гайка
47 ₽/шт
22
94201-20200
PIN, SPLIT, 2.0X20
39 ₽/шт
23
95015-54000
PIN D, JOINT
173 ₽/шт
24
95701-060-1200
Bolt
58 ₽/шт
25
95701-060-2000
Bolt
55 ₽/шт
