Главная Каталог товаров HONDA EPC 350 cm³ - 699 cm³ HONDA TRX 420 HONDA TRX420FA9 U 2009 HONDA (VIN: 1HFTE37U) E-10 OIL PUMP

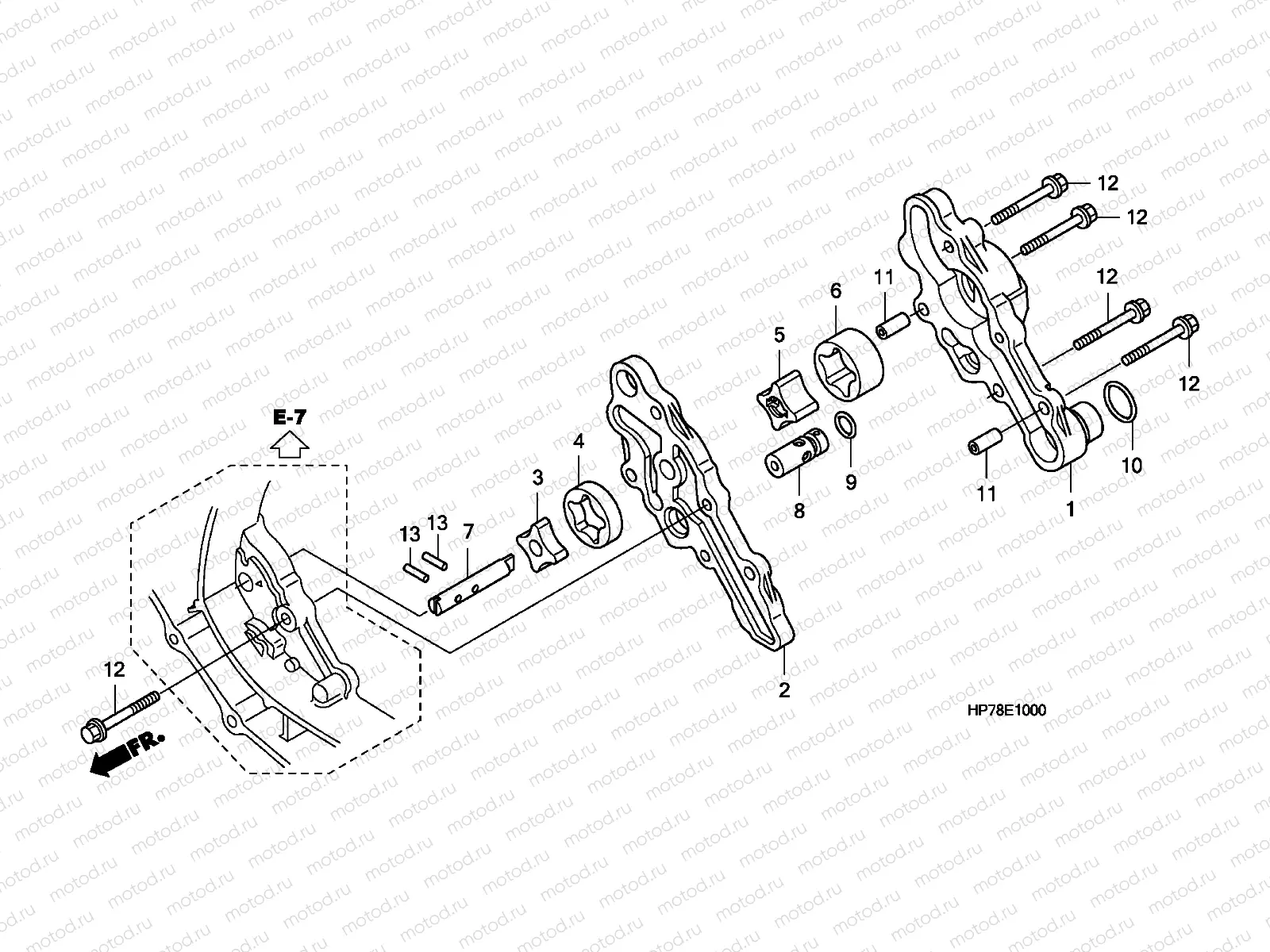

E-10 OIL PUMP

E-10 OIL PUMP
Например: 15101-HP7-A00
1
15101-HP7-A00
BODY COMP. A, OIL PUMP
2
15102-HP7-A00
BODY B, OIL PUMP
3
15122-HN2-003
ROTOR A, OIL PUMP INNER
4
15123-HN2-003
ROTOR A, OIL PUMP OUTER
5
15128-HP7-A01
ROTOR C, OIL PUMP INNER
6
15129-HP7-A01
ROTOR C, OIL PUMP OUTER
7
15132-HP7-A00
SHAFT, OIL PUMP
8
15220-HP7-A00
VALVE ASSY., RELIEF
9
91313-MG7-004
O-Ring
456 ₽/шт
10
91331-PC9-003
O-Ring
206 ₽/шт
11
94301-08200
Dowel pin (8x20)
94 ₽/шт
12
95701-060-4000
БОЛТ
66 ₽/шт
13
96220-40158
ROLLER, 4X15.8
24 ₽/шт
