Главная Каталог товаров HONDA EPC 350 cm³ - 699 cm³ HONDA TRX 420 HONDA TRX420FA9 U 2009 HONDA (VIN: 1HFTE37U) F-13 FRONT FINAL GEAR

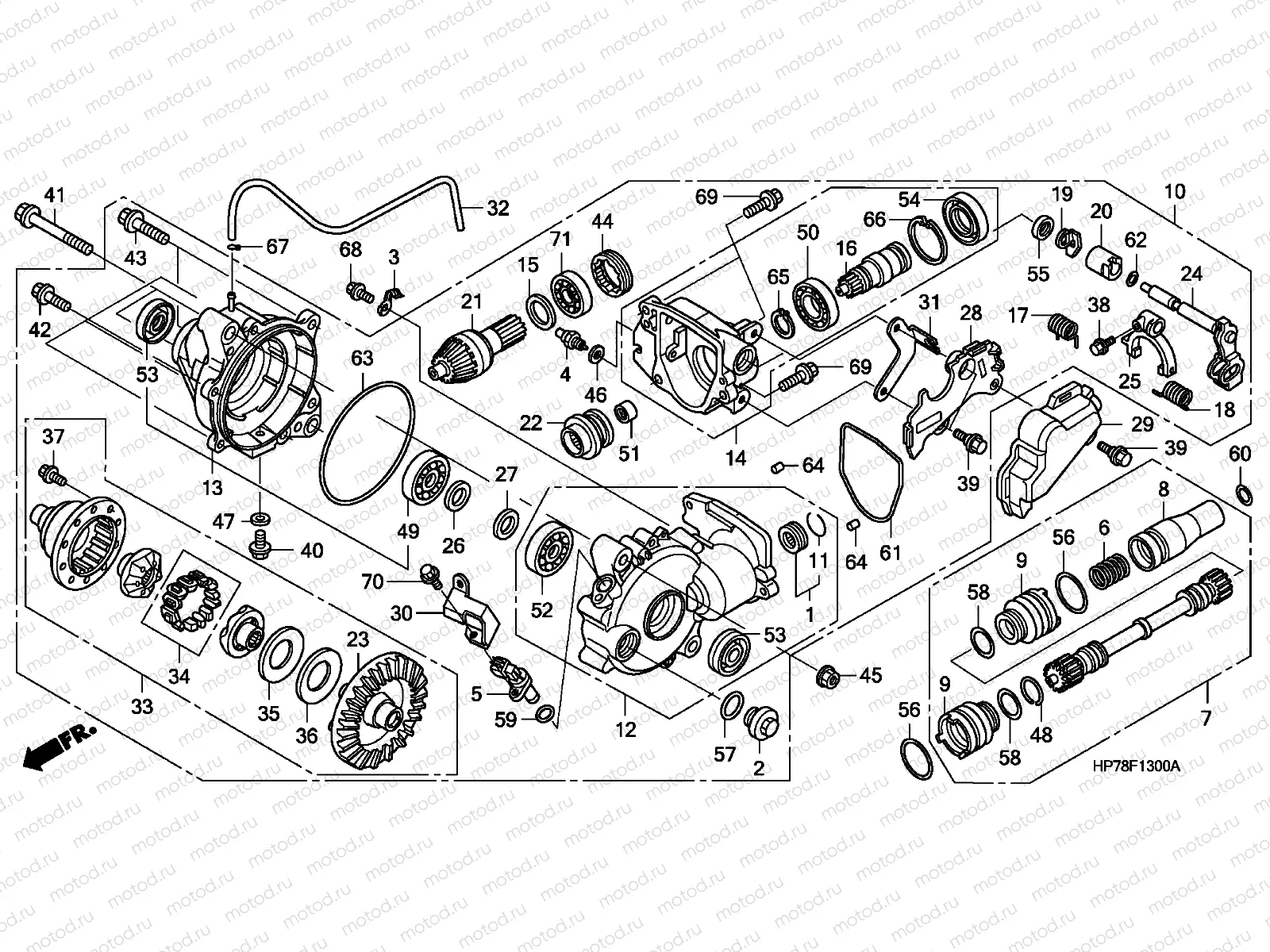

F-13 FRONT FINAL GEAR

F-13 FRONT FINAL GEAR
Например: 06910-HP5-600
1
06910-HP5-600
BRG SETNEEDLE
2
12361-035-000
Vis de vidange d'huile
3
32921-HN5-670
CLIPACG CORD
4
35600-HN7-003
Swich Neutral light
5
37700-KZR-601
SENSOR ASSY., SPEED (TDK-
5 780 ₽/шт
6
40215-HM7-000
SPRING, SHAFT
7
40400-HP5-600
SHAFT ASSY., FR. PROPELLE
8
40402-HP5-600
JOINT, FR. PROPELLER SHAF
9
40420-HP5-600
BOOT, PROPELLER SHAFT COV
10
41400-HP7-B40
GEAR ASSYFR FINA
11
41405-HA7-670
RING, STOPPER
236 ₽/шт
12
41411-HP7-A00
CASE SUB ASSYFR
13
41412-HP7-A00
COVER SUB ASSYFR
14
41413-HP5-601
CASE SUB ASSYFR
15
41453-HM8-000
SHIM F, PINION GEAR (1.94
15
41455-HM8-000
SHIM H, PINION GEAR (2.06
15
41456-HM8-000
SHIM I, PINION GEAR (2.12
15
41451-HM8-000
SHIM D, PINION GEAR (1.82
15
41454-HM8-000
SHIM G, PINION GEAR (2.00
15
41458-HN0-670
SHIM K, PINION GEAR (2.24
15
41447-HM8-000
SHIM A, PINION GEAR (1.64
15
41457-HM8-000
SHIM J, PINION GEAR (2.18
15
41462-HN0-670
SHIM N, PINION GEAR (2.42
15
41459-HN0-670
SHIM L, PINION GEAR (2.30
15
41452-HM8-000
SHIM E, PINION GEAR (1.88
15
41461-HN0-670
SHIM M, PINION GEAR (2.36
15
41449-HM8-000
SHIM C, PINION GEAR (1.76
15
41448-HM8-000
SHIM B, PINION GEAR (1.70
15
41463-HN0-670
SHIM O, PINION GEAR (2.48
16
41502-HL1-A01
JOINT, FR. FINAL CLUTCH
16
41502-HL1-A01
JOINT, FR. FINAL CLUTCH
17
41503-HP5-600
SPRING, FR. FINAL CLUTCH
18
41504-HP5-600
SPRING, FR. FINAL CLUTCH
19
41505-HP5-600
STOPPER, FR. FINAL CLUTCH
20
41506-HP5-600
COLLAR, FR. FINAL CLUTCH
21
41521-HP7-A00
GEARFR PINION
22
41527-HP5-600
SLEEVE, FR. FINAL CLUTCH
23
41531-HP5-600
GEARFR RING
24
41540-HP5-600
SHAFT COMP., FR. FINAL CL
25
41550-HP5-600
FORK COMP., FR. FINAL CLU
26
41641-HP5-600
SHIM K, RING GEAR (1.00)
26
41632-HP5-600
SHIM B, RING GEAR (0.55)
26
41639-HP5-600
SHIM I, RING GEAR (0.90)
26
41653-HP5-600
SHIM W, RING GEAR (1.60)
26
41636-HP5-600
SHIM F, RING GEAR (0.75)
26
41645-HP5-600
SHIM O, RING GEAR (1.20)
26
41647-HP5-600
SHIM Q, RING GEAR (1.30)
26
41633-HP5-600
SHIM C, RING GEAR (0.60)
26
41638-HP5-600
SHIM H, RING GEAR (0.85)
26
41635-HP5-600
SHIM E, RING GEAR (0.70)
26
41640-HP5-600
SHIM J, RING GEAR (0.95)
26
41651-HP5-600
SHIM U, RING GEAR (1.50)
26
41652-HP5-600
SHIM V, RING GEAR (1.55)
26
41650-HP5-600
SHIM T, RING GEAR (1.45)
26
41646-HP5-600
SHIM P, RING GEAR (1.25)
26
41642-HP5-600
SHIM L, RING GEAR (1.05)
26
41637-HP5-600
SHIM G, RING GEAR (0.80)
26
41648-HP5-600
SHIM R, RING GEAR (1.35)
26
41644-HP5-600
SHIM N, RING GEAR (1.15)
26
41631-HP5-600
SHIM A, RING GEAR (0.50)
26
41643-HP5-600
SHIM M, RING GEAR (1.10)
26
41634-HP5-600
SHIM D, RING GEAR (0.65)
26
41649-HP5-600
SHIM S, RING GEAR (1.40)
27
41652-HC5-000
SHIM V, DIFFERENTIAL CASE
27
41639-HC5-000
SHIM I, DIFFERENTIAL CASE
27
41631-HC5-000
SHIM A, DIFFERENTIAL CASE
27
41649-HC5-000
SHIM S, DIFFERENTIAL CASE
27
41642-HC5-000
SHIM L, DIFFERENTIAL CASE
27
41641-HC5-000
SHIM K, DIFFERENTIAL CASE
771 ₽/шт
27
41645-HC5-000
SHIM O, DIFFERENTIAL CASE
27
41653-HC5-000
SHIM W, DIFFERENTIAL CASE
27
41640-HC5-000
SHIM J, DIFFERENTIAL CASE
27
41634-HC5-000
SHIM D, DIFFERENTIAL CASE
27
41651-HC5-000
SHIM U, DIFFERENTIAL CASE
27
41644-HC5-000
SHIM N, DIFFERENTIAL CASE
27
41646-HC5-000
SHIM P, DIFFERENTIAL CASE
27
41643-HC5-000
SHIM M, DIFFERENTIAL CASE
27
41650-HC5-000
SHIM T, DIFFERENTIAL CASE
27
41632-HC5-000
SHIM B, DIFFERENTIAL CASE
27
41635-HC5-000
SHIM E, DIFFERENTIAL CASE
27
41637-HC5-000
SHIM G, DIFFERENTIAL CASE
27
41638-HC5-000
SHIM H, DIFFERENTIAL CASE
27
41636-HC5-000
SHIM F, DIFFERENTIAL CASE
27
41648-HC5-000
SHIM R, DIFFERENTIAL CASE
27
41633-HC5-000
SHIM C, DIFFERENTIAL CASE
27
41647-HC5-000
SHIM Q, DIFFERENTIAL CASE
28
41711-HP5-600
CASE, CLUTCH ARM
29
41712-HP5-600
COVER, CLUTCH ARM
30
41713-HP7-A00
COVERFR SPEED SE
31
41715-HP5-600
STAY, CLUTCH CABLE
32
41811-HP5-600
TUBE BRTHR3.5X109
33
42400-HP5-601
DIFF ASSY
34
42440-HN5-671
FOLLOWER SET, CAM
35
42455-HN7-003
SHIM E (1.7)
35
42451-HN7-003
SHIM A (1.3)
35
42457-HN7-003
SHIM G (1.9)
35
42456-HN7-003
SHIM F (1.8)
35
42452-HN7-003
SHIM B (1.4)
35
42454-HN7-003
SHIM D (1.6)
35
42453-HN7-003
SHIM C (1.5)
36
42461-HN5-671
SPRING, DIFFERENTIAL SIDE
37
90101-HN8-000
BOLT, 8X17
38
90101-HP5-600
BOLT, SPECIAL, 6MM
39
90106-MM9-000
Vis
244 ₽/шт
40
90109-371-000
BOLT, SEALING, 8MM
385 ₽/шт
41
90129-KF0-000
Vis
959 ₽/шт
42
90133-HP5-600
Vis
43
90134-HP5-600
Vis
44
90242-MB0-000
Nut (64 MM)
2 254 ₽/шт
45
90305-HC0-770
Nut (Lock, 10mm)
311 ₽/шт
46
90443-KR0-000
WASHER, NEUTRAL SWITCH
157 ₽/шт
47
90471-580-000
Gasket (8 mm)
157 ₽/шт
48
91012-KF0-000
CLIP, NEEDLE THRUST BEARI
259 ₽/шт
49
91052-HC5-004
Roulement
50
91055-HP5-601
BEARING, RADIAL BALL, 32X
51
91056-HP5-601
Needle bearing (12x18x12)
607 ₽/шт
52
91062-HA7-672
BEARING, RADIAL BALL, 32X
53
91252-HC5-003
Joint
54
91252-HP5-601
OIL SEAL, 42X58X8
55
91254-KS7-831
DUST SEAL, 22X28X5
723 ₽/шт
56
91302-HM7-A00
BAND, BOOT (D27)
675 ₽/шт
57
91302-001-020
O-Ring
381 ₽/шт
58
91303-HM7-A00
BAND, BOOT (D20)
59
91356-MA6-005
O-Ring
329 ₽/шт
60
91311-MB0-003
O-Ring
259 ₽/шт
61
91351-HP5-601
GASKET, FR. FINAL CLUTCH
62
91352-GAZ-930
O-Ring
259 ₽/шт
63
91352-HP5-601
O-RING, 136X2
64
94301-06100
Dowel pin (6x10)
104 ₽/шт
65
94510-32000
CIRCLIP, EXTERNAL, 32MM
86 ₽/шт
66
94520-58000
Seeger (58mm)
197 ₽/шт
67
95002-35000
CLIP, TUBE (C6.5)
39 ₽/шт
68
95701-060-1200
Bolt
58 ₽/шт
69
95701-080-2500
Bolt
79 ₽/шт
70
96001-060-1607
Bolt, flange, 6x16
63 ₽/шт
71
96100-620-6000
Roulement
