Главная Каталог товаров HONDA EPC 350 cm³ - 699 cm³ HONDA TRX 420 HONDA TRX420FA9 U 2009 HONDA (VIN: 1HFTE37U) F-12 FRONT KNUCKLE/FRONT DRIVE SHAFT

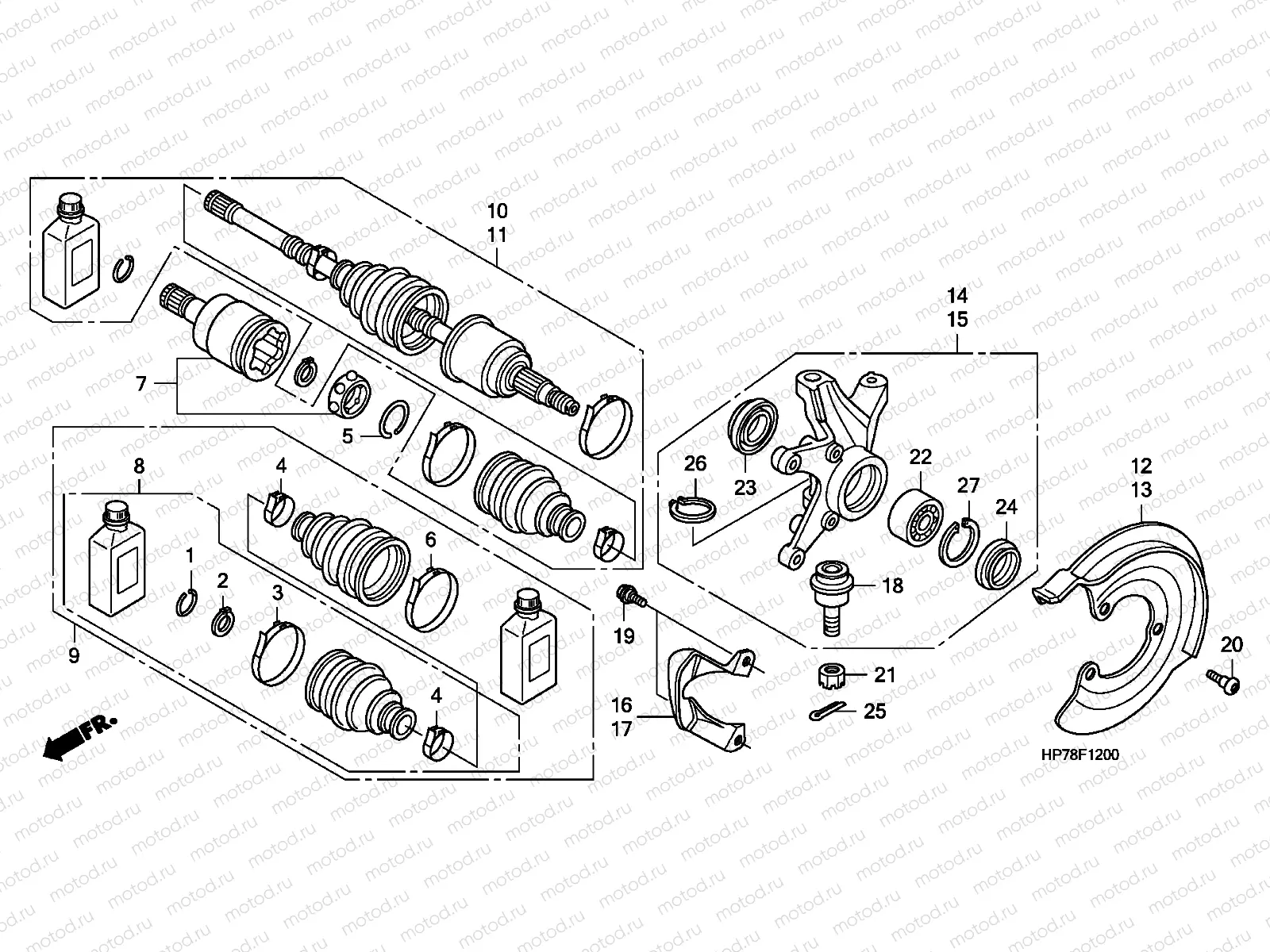

F-12 FRONT KNUCKLE/FRONT DRIVE SHAFT

F-12 FRONT KNUCKLE/FRONT DRIVE SHAFT
Например: 42206-HA7-671
1
42206-HA7-671
RING, SNAP
2
42209-HC5-003
IRCLIP
3
44205-HN8-A41
BAND B, INBOARD
4
44206-HN8-A41
BAND A, INBOARD
5
44207-HN8-A41
RING, SNAP
6
44208-HP5-601
BAND, OUTBOARD
7
44220-HP5-601
JOINT COMPINBOAR
8
44230-HN8-A41
BOOT SET, INBOARD
9
44240-HP5-601
BOOT SET
10
44250-HP5-602
SHAFT COMP SET,R
11
44350-HP5-601
SHAFT SET, L. FR. DRIVE
12
45255-HP5-600
GUARDR SPLASH
13
45256-HP5-600
GUARDL SPLASH
14
51200-HP5-600
KNUCKLE ASSYR
15
51250-HP5-600
KNUCKLE ASSY., L.
16
51325-HN2-B70
GUARD, R. FR. OUTBOARD
17
51326-HN2-B70
GUARD, L. FR. OUTBOARD
18
51355-HP5-601
JOINT A, ARM BALL
19
90111-KT1-780
Vis
404 ₽/шт
20
90114-HP0-A00
BOLT, SOCKET, 6X15
21
90310-HB9-000
NUT, CASTLE, 12MM
385 ₽/шт
22
91051-HC5-003
BEARING, ANGULAR, 30X50X2
23
91209-HN2-003
DUST SEAL, 40X58X7
24
91254-HP5-601
DUST SEAL, 38X50X6
25
94201-30180
PIN, SPLIT, 3.0X18
39 ₽/шт
26
94514-32000
CIRCLIP, EXTERNAL, 32MM
27
94520-50000
CIRCLIP, INTERNAL, 50MM
