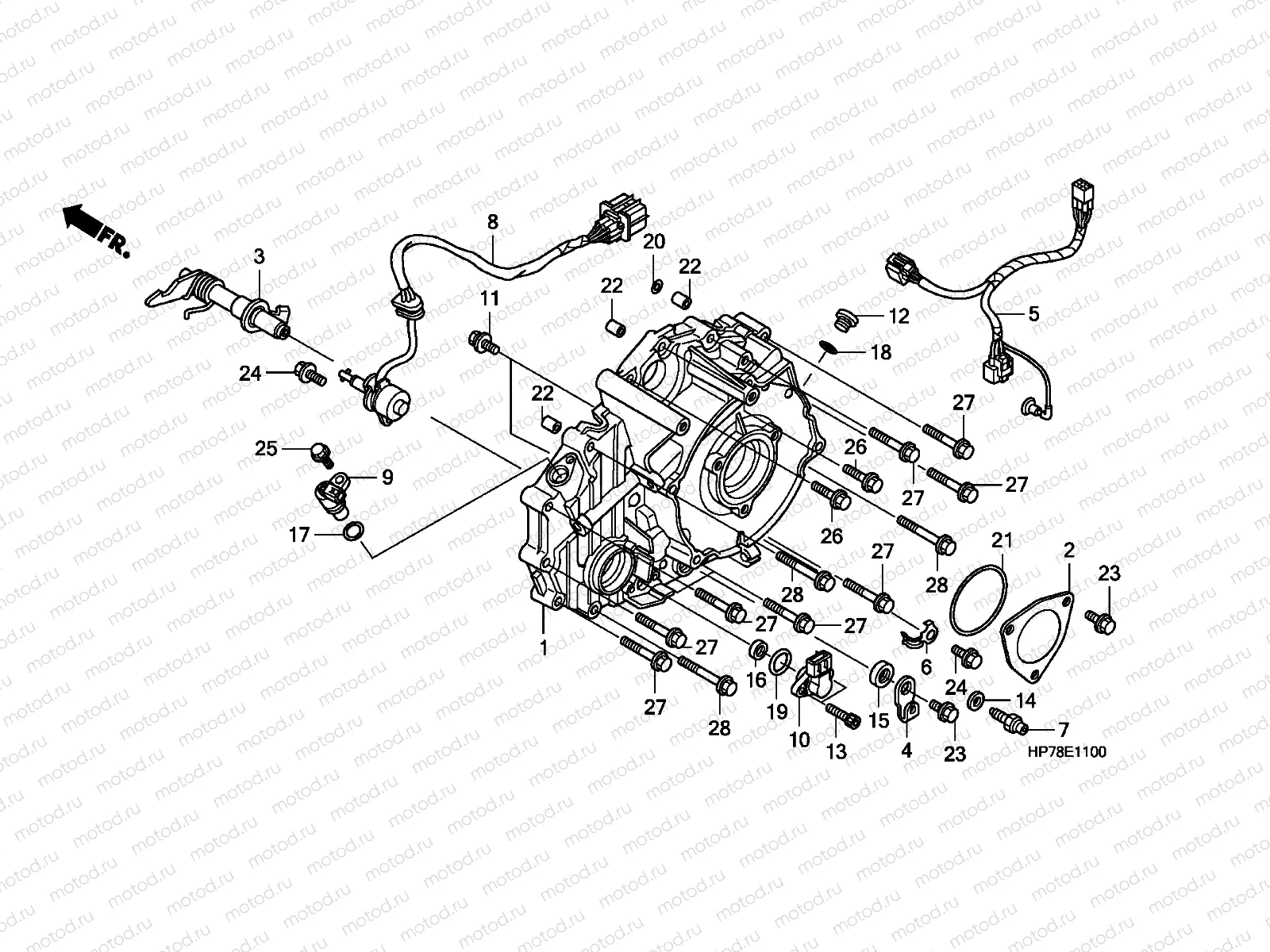

E-11 REAR CRANKCASE COVER

E-11 REAR CRANKCASE COVER
Например: 11340-HP7-U00
1
11340-HP7-U00
COVER COMP., RR. CRANKCAS
2
11342-HP5-600
CAPRR COVER
3
24860-HP7-A00
SHAFT COMP., REVERSE STOP
4
24865-HP5-600
LEVER, REVERSE STOPPER
5
32101-HP7-A01
SUB HARNESSENG
6
32921-HN5-670
CLIPACG CORD
7
35600-HN7-003
Swich Neutral light
8
35759-HP7-A01
SWITCH ASSY., DRUM POSITI
9
37700-KZR-601
SENSOR ASSY., SPEED (TDK-
5 780 ₽/шт
10
38800-HP0-A11
SENSOR ASSY., ANGLE
11
90021-MM5-000
Vis
338 ₽/шт
12
90084-KY2-000
CAP, 14MM
818 ₽/шт
13
90116-HP5-600
BOLT, SOCKET, 5X20
14
90545-300-000
Rondelle
291 ₽/шт
15
91201-965-000
Joint
409 ₽/шт
16
91254-792-003
Joint
275 ₽/шт
17
91356-MA6-005
O-Ring
329 ₽/шт
18
91303-MG7-003
O-Ring
456 ₽/шт
19
91308-HN0-A10
O-RING, ANGLE SENSOR
20
91301-MJ0-003
O-Ring
236 ₽/шт
21
91351-ZV4-003
O-Ring
165 ₽/шт
22
94301-08140
Dowel pin (8x14)
94 ₽/шт
23
95701-060-1200
Bolt
58 ₽/шт
24
95701-060-1400
Bolt
55 ₽/шт
25
95701-060-1600
БОЛТ С ФЛАНЦЕМ
61 ₽/шт
26
95701-060-2500
Bolt
69 ₽/шт
27
95701-060-4000
БОЛТ
66 ₽/шт
28
95701-060-5000
Bolt
83 ₽/шт
