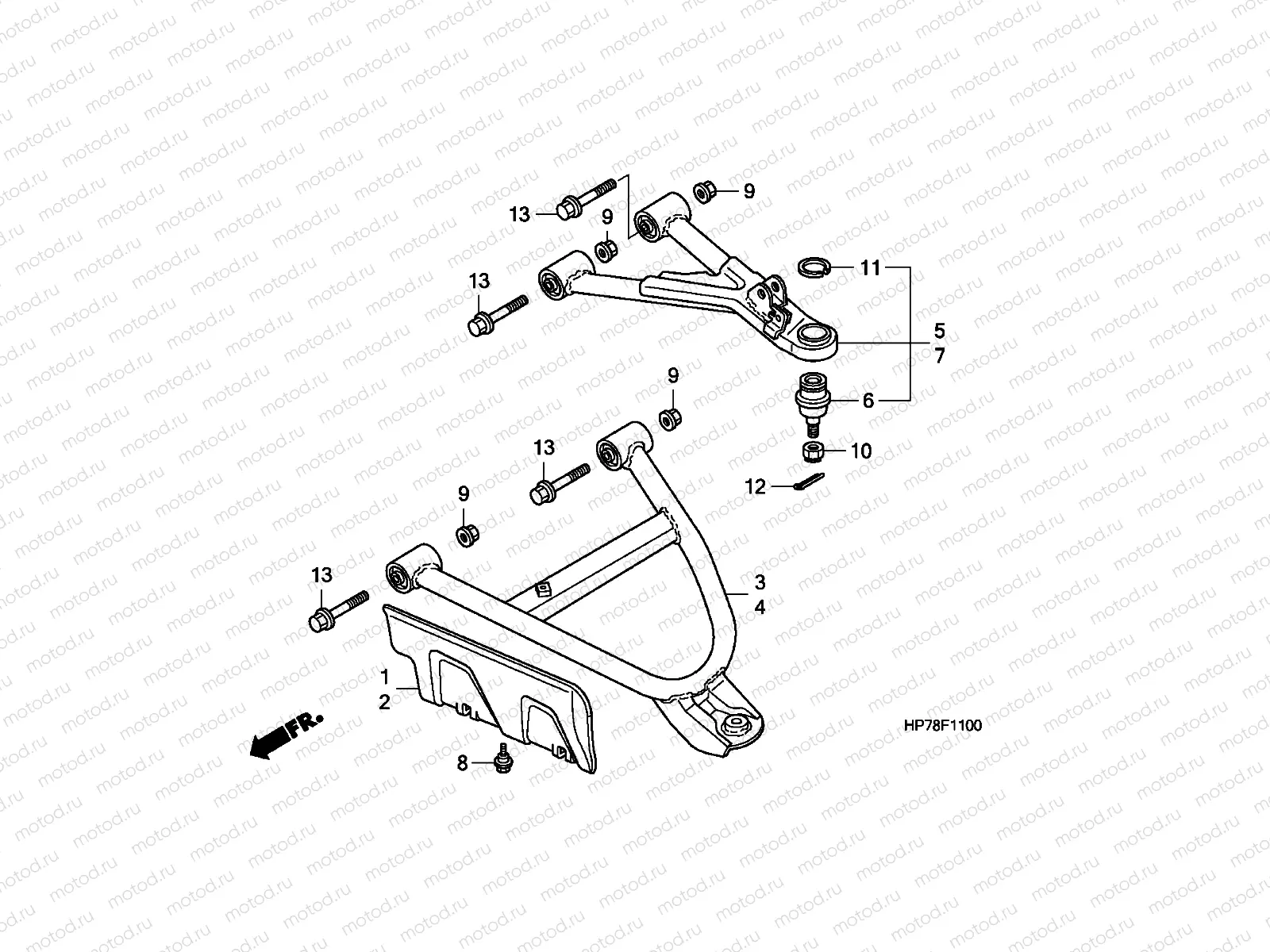

F-11 FRONT ARM

F-11 FRONT ARM
Например: 51315-HR0-F00
1
51315-HR0-F00
GUARD, R. FR. INBOARD
2
51325-HR0-F00
GUARD, R. FR. OUTBOARD
3
51350-HP5-600
ARM ASSY., R. FR. LOWER
4
51360-HP5-600
ARM ASSYL FR LOW
5
51370-HP7-A00
RM ASSY., R. FR. UPPER
6
51375-HP5-601
JOINT A, ARM BALL
7
51380-HP7-A00
RM ASSYL FR UPP
8
90111-KT1-780
Vis
404 ₽/шт
9
90305-HC0-770
Nut (Lock, 10mm)
311 ₽/шт
10
90310-HB9-000
NUT, CASTLE, 12MM
385 ₽/шт
11
90603-HP5-600
Seeger
12
94201-30180
PIN, SPLIT, 3.0X18
39 ₽/шт
13
95817-100-6500
Болт
422 ₽/шт
