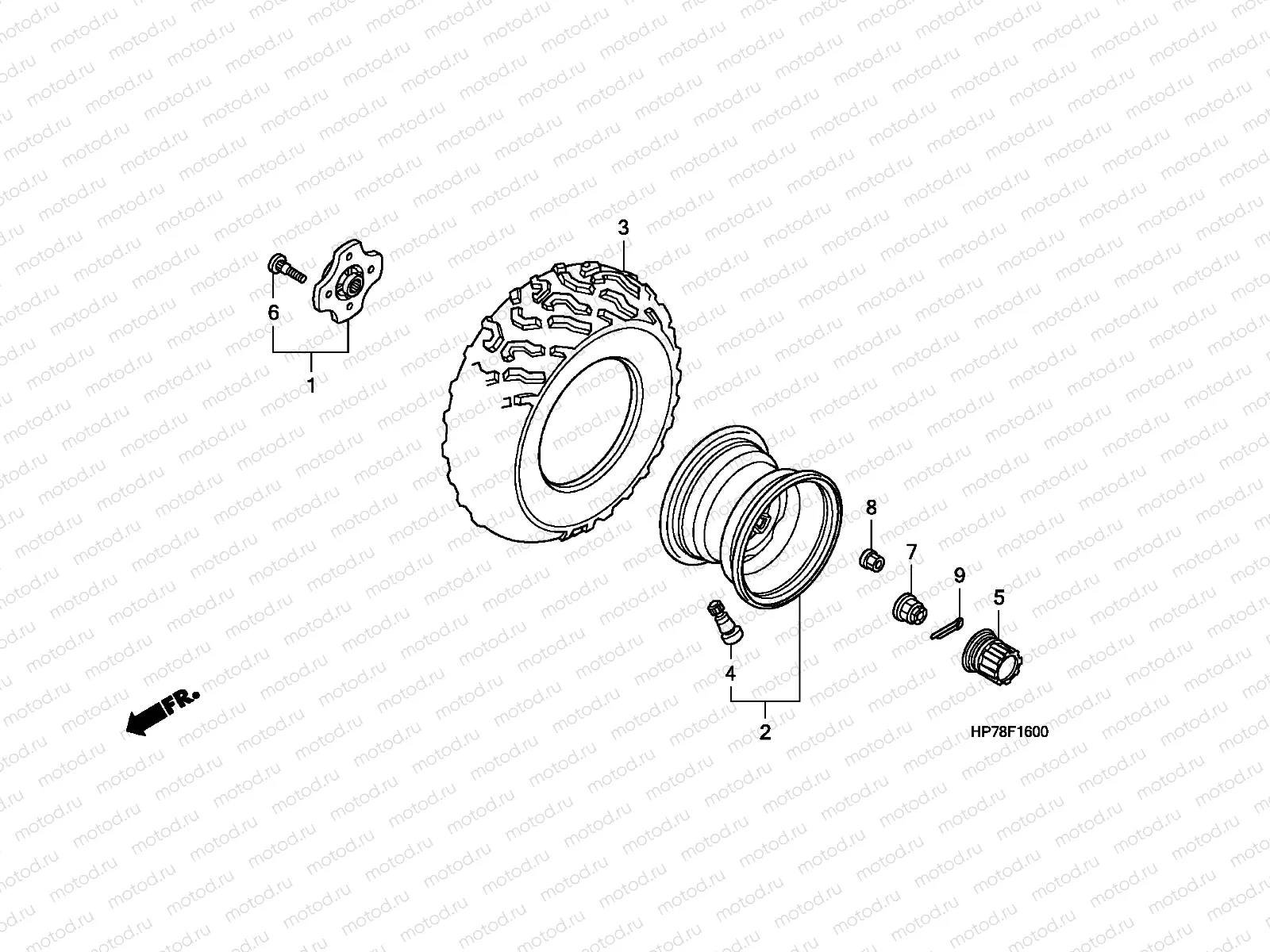

F-16 REAR WHEEL

F-16 REAR WHEEL
Например: 42610-HP7-A00
1
42610-HP7-A00
UB COMP., RR. WHEEL
2
42650-HP7-B40ZA
WHEEL SUB ASSY., RR. *TYP
3
42711-HR3-WH1
TIRE (24X10-11) (MAXXIS)
4
42753-HF1-670
VALVE, RIM (TR412)
5
44732-HC4-010
AP, WHEEL CENTER
6
90103-HN0-A60
BOLT, WHEEL, 10X32
7
90304-HM7-A10
NUT, AXLE, 20MM
8
90314-HM5-A10
Nut
9
94201-40300
PIN, SPLIT, 4.0X30
47 ₽/шт
