Главная Каталог товаров Polaris EPC 1996 Polaris ATV Polaris 1996 SPORTSMAN 4X4 (W968040) Polaris 1996 ATV REAR BRAKE Sportsman 4x4 W968040 (4935943594C005) | REAR BRAKE Sportsman 4x4 W968040 (4935943594C005)

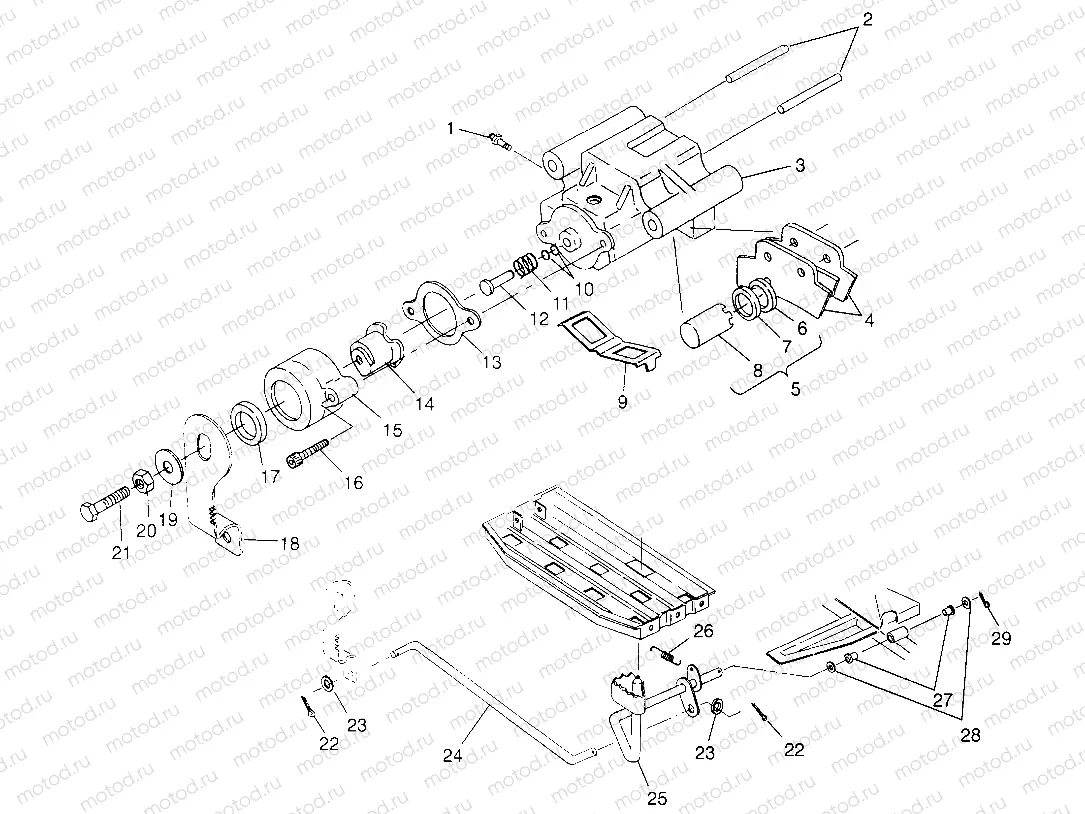

REAR BRAKE Sportsman 4x4 W968040 (4935943594C005) | REAR BRAKE Sportsman 4x4 W968040 (4935943594C005)

REAR BRAKE Sportsman 4x4 W968040 (4935943594C005) | REAR BRAKE Sportsman 4x4 W968040 (4935943594C005)

Например: 7080352

1

7080352

SCREW BLEEDER

2

7661820

Dowel pin

3

1910180

CALIPER ASM,R.BRAKE Substituted by 1910224 (Extruded) (Incl. 1-21)

3

9990005

Crankcase, RH

4

2200899

KIT REAR.BRAKEPAD HVY.DUTY

5

2200463

KIT PISTON&SEAL

6

5410766

RING MOLDED (.134)

7

2200463

KIT PISTON&SEAL

8

2200463

KIT PISTON&SEAL

9

5240993

SPRING,ANTI-RATTLE (Extruded)

10

5411432

O RING

11

7041219

SPRING BRAKE COMP.

12

5020666

PIN,BRAKE CALIPER

13

5830009

GASKET BRAKE

14

9990000

Suspension, Rear

15

9990000

Suspension, Rear

16

7512173

SCREW(10)

17

3610026

SEAL BRAKE

18

5240624

ARM,BRAKE CALIPER

19

7555828

WASHER SPRING

20

7542129

Nut

21

7515145

Vis

22

7661203

PIN COTTER

23

7555806

WASHER FLAT

24

5224531

ROD, BRAKE

25

1910144-067

FOOTBRAKE,BLK.

26

7042029

Spring

27

5431107

BUSHING PEDAL PIVOT

28

7555919

Rondelle

29

7661401

PIN COTTER
