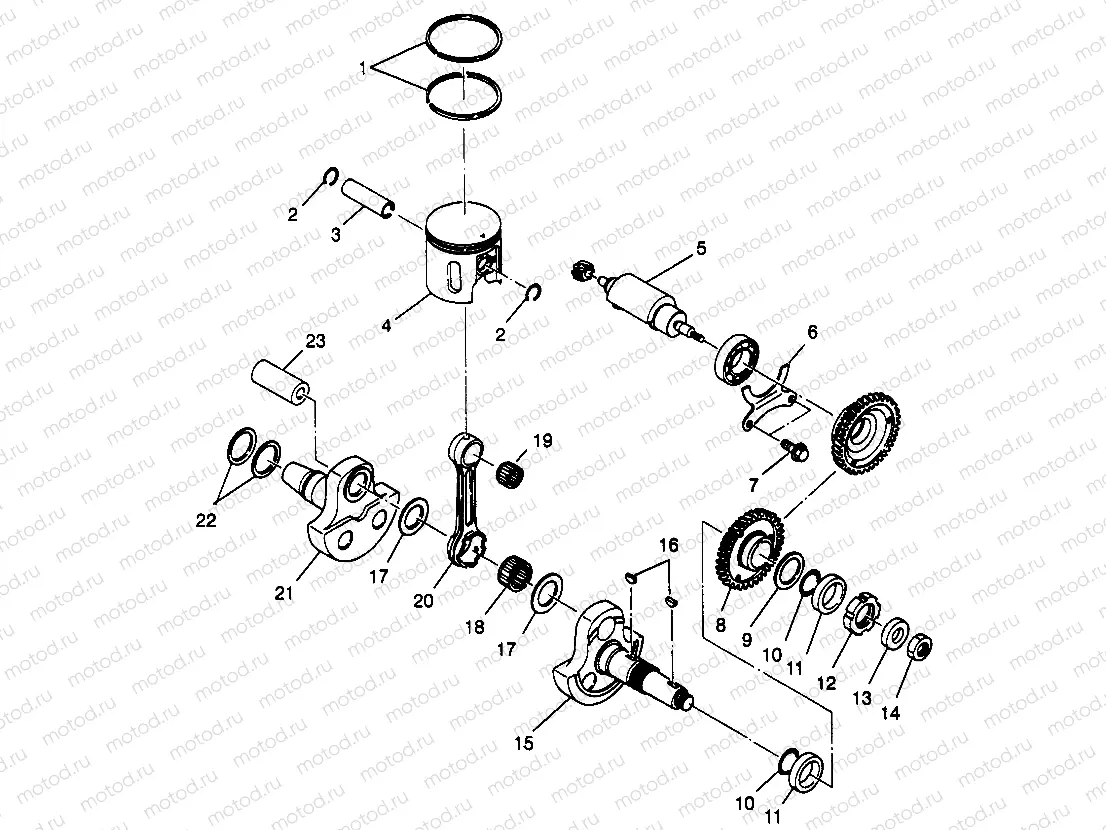

Главная Каталог товаров Polaris EPC 1996 Polaris ATV Polaris 1996 SPORTSMAN 4X4 (W968040) Polaris 1996 ATV PISTON and CRANKSHAFT Sportsman 4x4 W968040 (4935943594C013) | PISTON and CRANKSHAFT Sportsman 4x4 W968040 (4935943594C013)

PISTON and CRANKSHAFT Sportsman 4x4 W968040 (4935943594C013) | PISTON and CRANKSHAFT Sportsman 4x4 W968040 (4935943594C013)

PISTON and CRANKSHAFT Sportsman 4x4 W968040 (4935943594C013) | PISTON and CRANKSHAFT Sportsman 4x4 W968040 (4935943594C013)

Например: 3084739

0

3084739

RING PISTON (.50MM O/S)

1

3084737

RING PISTON STD.

1

3084738

RING PISTON (.25MM O/S)

2

3084167

CLIP PISTON PIN

3

3083838

Piston pin

4

3084736

Piston (0.50MM O/S)

4

3084734

Piston (STD)

4

3084735

Piston (0.25MM O/S)

5

3087042

BALANCER

6

3086768

PLATE

7

3086769

Vis

8

3084156

GEAR DRIVE

9

3086764

WASHER-GUIDE

10

3084160

O-Ring

11

3086763

Entretoise

12

3086762

NUT SLIT

13

3086767

Rondelle

14

3083905

NUT LOCK

15

3084776

CRANKSHAFT ASM.

15

3084149

CRANKSHAFT #1,MAG SIDE

16

3081543

KEY WOODRUFF

17

3084155

SPACER CRANK PIN

18

3084154

BEARING LARGE END

19

3084168

BEARING SMALL END

20

3084153

ROD CONNECTING

21

3084777

CRANKSHAFT #2,PTO SIDE

22

3086766

SPACER-2

22

3086765

SPACER-1 0.2MM

23

3084152

PIN CRANK #1
