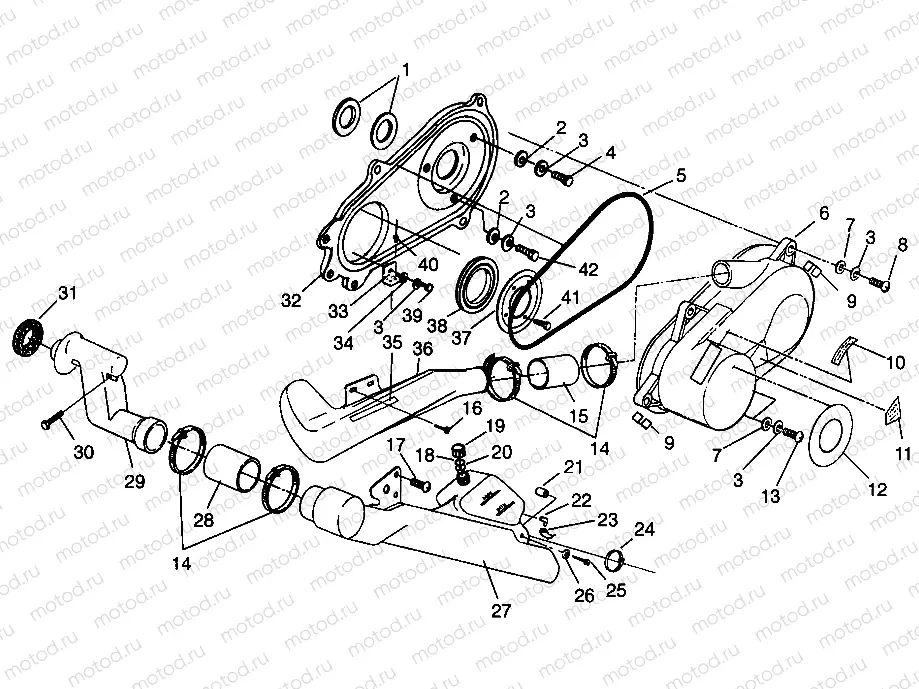

CLUTCH COVER Sportsman 4x4 W968040 (4935943594C007) | CLUTCH COVER Sportsman 4x4 W968040 (4935943594C007)

CLUTCH COVER Sportsman 4x4 W968040 (4935943594C007) | CLUTCH COVER Sportsman 4x4 W968040 (4935943594C007)

Например: 5411180

1

5411180

SEAL CVR CASE 1/2

1

5410489

SEAL COVER CASE

2

7555748

Rondelle

3

7552605

Rondelle

4

7517219

Vis

5

5521301

SEAL OUTER CLUTCH COVER

6

5433542

COVER-CLUTCH FRONT RTP

7

7558301

WASHER FLAT

8

7512093

SCREW #14 X 1-3/4

8

7512281

Vis

9

7670051

CLIP CLUTCH COVER

10

7078689

Gebruik/Utilisez 7078689

11

7072789

DECAL(CPSC),ENG/CLUTCH MOD. [No Longer Available]

12

7074782

DECAL,AUTO.TRANSMISSION

13

7512094

Vis

13

7515186

SCREW(10) (For Ref. 33 w/Inserts)

14

7080492

CABLE TIE 11 INCH

15

5410421

BOOT CLUTCH INTAKE

16

7512232

Vis

18

5810279

GASKET

19

5430743

CAP OVERFLOW

20

5433774

CAP PLUG9X(GRN) FLEX TEMP

21

5432375

SPACER, NYLON(10) [No Longer Available]

22

7052065

FITTING 90 DEGREE

23

8450003-1525

LINE FUEL 1/4 ID(1525 CM.)

24

7080511

CLAMP NARROW BAND

25

7512025

Vis

26

7555783

WASHER FLAT

27

5432336

DUCT INLET DOWNTUBE

28

5410509

BOOT INTAKE

29

5431261

DUCT, INLET, TOP

30

7512017

Vis

31

5810480

SEAL INTAKE

32

2201159

COVER CLUTCH INNER 400

33

5241213-067

BRKT,CLUTCH COVER,BLK.

34

7555935

Rondelle

35

7075605

DECAL"DEMAND 4-DRIVE"

36

5431671

DUCT, AIR OUTLET, CLUTCH Substituted by 5432615

37

5222446-067

BRKT RETAINER SEAL

38

5412637

SEAL-COVER CASE ENGINE

39

7512095

Vis

39

7515187

SCREW(10) (For Ref. 33 w/Inserts)

40

7661638

RIVET INTERLOCK B

41

LR--

CALIPER, BRAKE, RH

42

7512278

Vis
