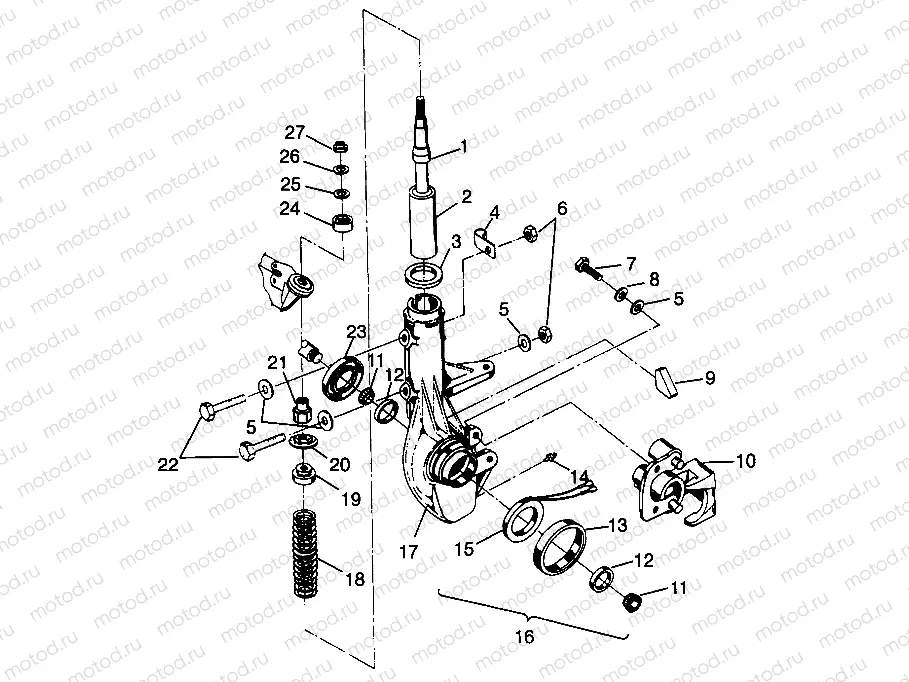

FRONT STRUT Sportsman 4x4 W968040 (4935943594B006) | FRONT STRUT Sportsman 4x4 W968040 (4935943594B006)

FRONT STRUT Sportsman 4x4 W968040 (4935943594B006) | FRONT STRUT Sportsman 4x4 W968040 (4935943594B006)

Например: 5412529

1

5412529

BUMPER-MCU 19.1MM ID

2

2201460

STRUT KIT FRONT SACHS ST

3

5211115

Rondelle

4

7080573

CLAMP RUBBER-COATED .562

5

7558402

WASHER FLAT

6

7542303

NUT FLEX-LOC

7

7512365

SCREW CAP

8

7552901

Rondelle (Lock)

9

5810439

RETAINER,WIRE,STRUT CAST

10

LR--

CALIPER, BRAKE, RH

11

3554509

BEARING TAPERED ROLLER

12

3554507

BRG TAPER ROLL CUP

13

5222193

SLEEVE STRUT HUB SEAL

14

7080306

FITTING LUBE.W/BALL CK.

15

2201313

HUB/COIL(KIT)

15

2201313

HUB/COIL(KIT)

16

2200974

HUBSTRUT ASM RH

16

2200976

HUBSTRUT ASM RH

16

2200973

HUBSTRUT ASM LH

16

2200975

HUBSTRUT ASM LH

17

5131078

SUPPORT,RH,HUBSTRUT Substituted by 1843055

17

5131077

SUPPORT,LH,HUBSTRUT Substituted by 1843054

18

7042312-067

SPRING-COMP 64-113# 11.6 BLK

19

5220602

RETAINER,SPRING,TOP

20

5432871

PIVOT BALL BOTTOM

21

5130668

SPACER THREADED

22

7515339

Vis

23

3610028

SEAL HUB STRUT

24

5432872

PIVOT BALL TOP

25

5810291

SPACER RUBBER

26

7555749

Rondelle

27

7542507

NUT FLEX LOC
