Главная Каталог товаров Polaris EPC 1996 Polaris ATV Polaris 1996 SPORTSMAN 4X4 (W968040) Polaris 1996 ATV ELECTRICAL/TAILLIGHT Sportsman 4x4 W968040 (4935943594C008) | ELECTRICAL/TAILLIGHT Sportsman 4x4 W968040 (4935943594C008)

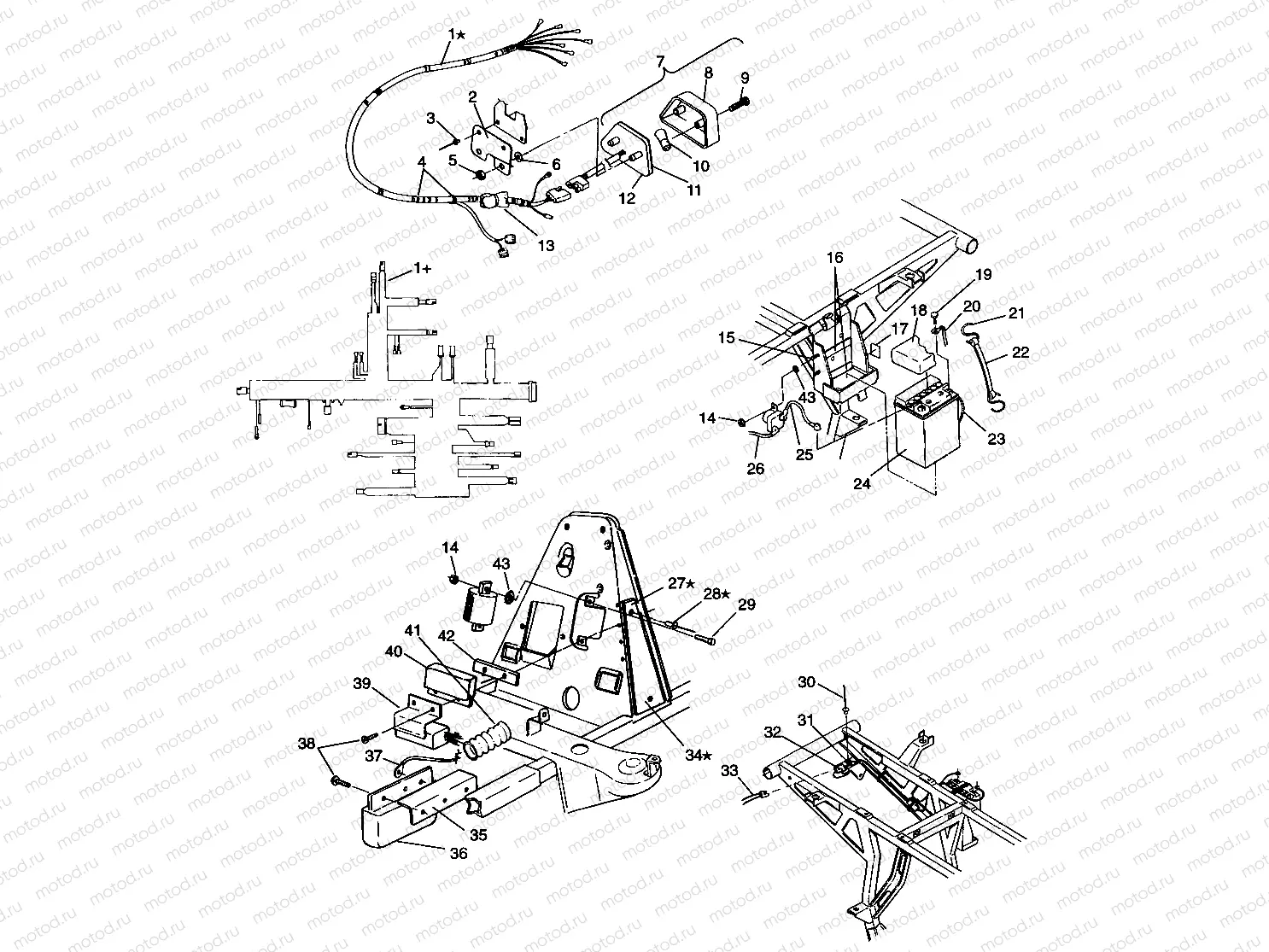

ELECTRICAL/TAILLIGHT Sportsman 4x4 W968040 (4935943594C008) | ELECTRICAL/TAILLIGHT Sportsman 4x4 W968040 (4935943594C008)

ELECTRICAL/TAILLIGHT Sportsman 4x4 W968040 (4935943594C008) | ELECTRICAL/TAILLIGHT Sportsman 4x4 W968040 (4935943594C008)

Например: 2460562

1

2460562

HARNESS,MAIN WIRE

1

2460575

HARNESS,MAIN,W/ CONN. Substituted by 2460620

2

5211391-067

ISOLATOR,TAILLIGHT

3

7621453

RIVET

4

7080138

CABLE TIE

5

7670054

NUT PUSH-ON

6

7555916

Rondelle (plastic)

7

2432034

TAIL LIGHT ASM.

8

4032046

Taillight lens

9

4032029

Vis

10

4030043

BULB

11

4032045

Gasket

12

4032064

BACKING TAILLIGHT

13

2200593

KIT CKT.BRKR 20 AMP

14

7541925

NUT NYLOK 10-24 Y

15

7512027

Vis

16

5810290

PAD BATTERY

17

7072606

DECAL, BATTERY [No Longer Available]

18

5431769

COVER BATTERY

19

2200361

KIT-BATTERY BOLT (SHORT)

20

4010095

CABLE BATT/ENG. BLK.

21

7010032

HOOK-BATTERY STRAP

22

5418182

STRAP-BATTERY HOLD DOWN-C

23

8360009-600

LINE FUEL 1/8 ID 600 CM.

24

4140006

La batterie

25

4010094

CABLE BATT/SOLENOID RED

26

4010064

CABLE SOLENOID/STARTER

27

4040056

BOARD,TERMINAL

28

7621322

RIVET, POP(50)

29

7512007

Vis

30

7621336

RIVET

31

7080524

CLAMP BLK 5/16 PLASTIC

32

2410025

POWERPLUG ASM,12V

33

2460442

PIGTAIL POWER

34

5431152

SHIELD,TERM.BOARD

35

5131036

HEATSINK RECT.

36

2205046

KIT-REGULATOR RECTIFIER LR-35

37

2460485

HARNESS JUMPER RECTIFIER

38

7512018

Vis

39

5240428

BRKT CDI(ATV 400)

40

4060142

LIMITER,350HZ,(LR-44-2)

41

8360011-15

TUBING,CONVOLUTED,3/4"

42

5210650

HEAT SINK

43

7571602

Rondelle
