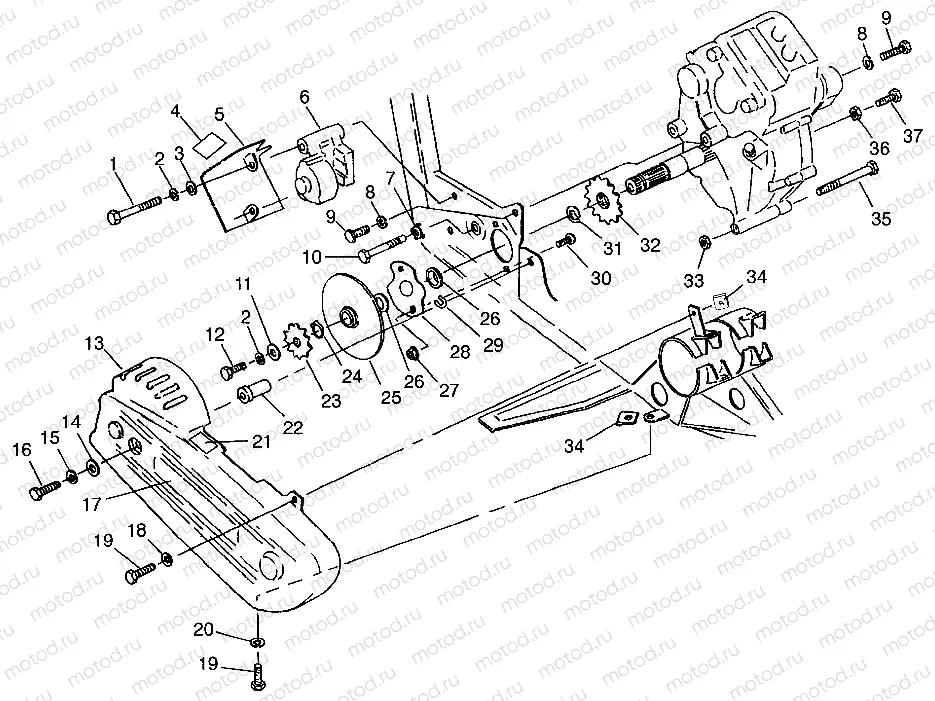

GEARCASE/BRAKE and CHAIN COVER MOUNTING Sportsman 4x4 W968040 (4935943594C004) | GEARCASE/BRAKE and CHAIN COVER MOUNTING Sportsman 4x4 W968040 (4935943594C004)

GEARCASE/BRAKE and CHAIN COVER MOUNTING Sportsman 4x4 W968040 (4935943594C004) | GEARCASE/BRAKE and CHAIN COVER MOUNTING Sportsman 4x4 W968040 (4935943594C004)

Например: 7515345

1

7515345

Vis

2

7552901

Rondelle (Lock)

3

7558402

WASHER FLAT

4

7075339

DECAL BRAKE SHIELD

5

5241018-067

SHIELD,R.CALIPER,BLK.

6

1910180

CALIPER ASM,R.BRAKE Substituted by 1910224 (Extruded) (Incl. 1-21)

8

7552603

Rondelle (Lock)

9

7515522

Vis

11

7555701

WASHER FLAT

12

7515321

Vis

13

5431717

GUARD CHAIN CTR.

14

7558402

WASHER FLAT

15

7552606

Rondelle

16

7515346

Vis

17

LR--

CALIPER, BRAKE, RH

18

7558302

WASHER WROUGHT

19

7512269

Vis

20

7552605

Rondelle

21

7074214

DECAL,LUBRICATION

22

5333244

SPACER, CHAIN GUARD

23

3221058

SPKT 11T

24

7710433

RING RETAINING

25

1910177

DISC ASM,BRAKE

26

3610026

SEAL BRAKE

27

7542449

NUT FLANGE LOCK

28

1590237

BRG.ASM O/P SHAFT

28

7080306

FITTING LUBE.W/BALL CK.

29

5211065

SHIM .010

29

5211517

SHIM (.030)

29

5210764

SPACER-.020

30

7515484

BOLT,CARRIAGE(10)

31

7710434

RING SNAP

32

3221041

SPKT 13T SPLINED

33

7542403

NUT LOCK

34

7670060

NUT SPEED

35

7515472

Vis

36

7542404

Nut

37

7515485

Vis
