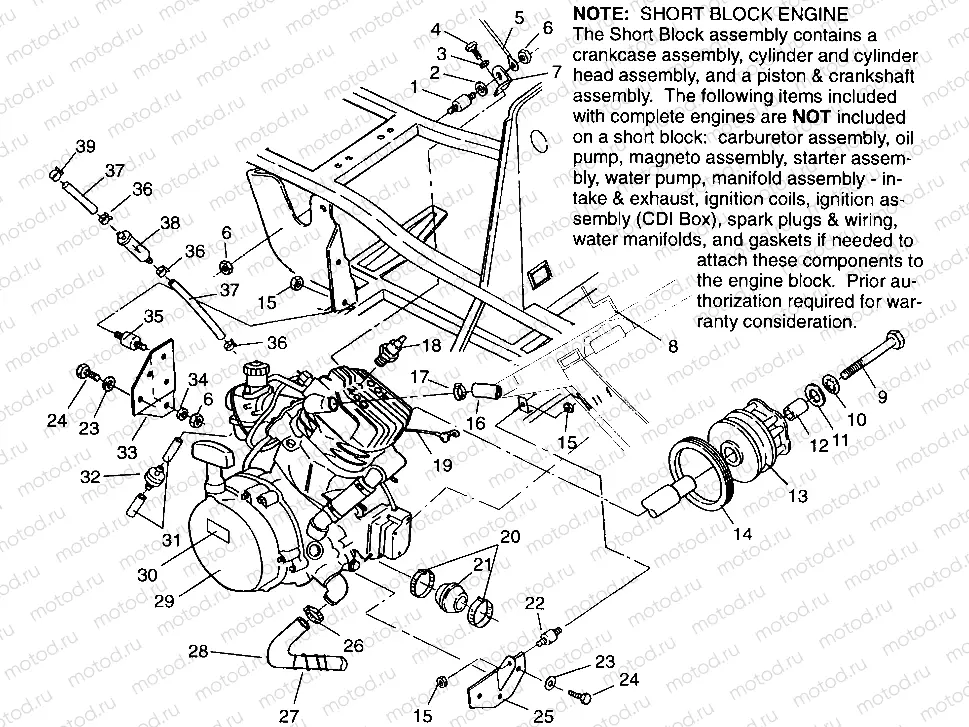

ENGINE MOUNTING Sportsman 4x4 W968040 (4935943594A010) | ENGINE MOUNTING Sportsman 4x4 W968040 (4935943594A010)

ENGINE MOUNTING Sportsman 4x4 W968040 (4935943594A010) | ENGINE MOUNTING Sportsman 4x4 W968040 (4935943594A010)

Например: 3022069

1

3022069

ISOLATOR-3/8-24M/M 65DURO

2

5430802

INSULATOR MOTOR MT.

3

7552901

Rondelle (Lock)

4

7515321

Vis

5

4010067

CABLE,GROUND/ENG.

6

7542411

NUT FLEXLOC

7

5222415-067

MOUNT,ENG.TOP

8

5521131

TRIM EDGE 6FT BLACK

9

7512566

Vis

10

7575202

Rondelle (Lock)

11

5210748

Rondelle

12

5430261

BUSHING

13

LR--

CALIPER, BRAKE, RH

15

7542403

NUT LOCK

16

5410570

HOSE ENG UPPER

17

7080225

CLAMP-HOSE Substituted by 7080547

18

3070156

Bougie d'allumage

19

5410346

INSUL.CABLE SOL.

20

4010064

CABLE SOLENOID/STARTER

21

7080511

CLAMP NARROW BAND

22

5410883

BOOT,CLUTCH INTAKE(400)

23

3022067

MOUNT MOTOR

24

7552603

Rondelle (Lock)

25

7512490

Vis

26

1040231-067

MOUNT ENGINE

27

7080614

CLAMP HOSE

28

7041079

SPRING HOSE RETAINER

29

5411173

HOSE LOWER ENGINE

30

3084718

ENG.(S.B.)EC38PL-SB [No Longer Available]

31

7075741

DECAL,DRAIN RECOIL Substituted by 7078577

32

8360009-600

LINE FUEL 1/8 ID 600 CM.

33

7051011

VALVE CHECK

34

5240542-067

MOUNT, REAR MOTOR, BLK.

35

7555801

Rondelle

36

3022070

ISOLATOR-3/8-24M/M 60DURO

37

7080236

CLAMP-HOSE

38

8450042-600

FUEL LINE,3/16 ID(600 CM.)

39

2530009

Filtre à carburant (IN-LINE)

40

7080003

CLAMP HOSE
