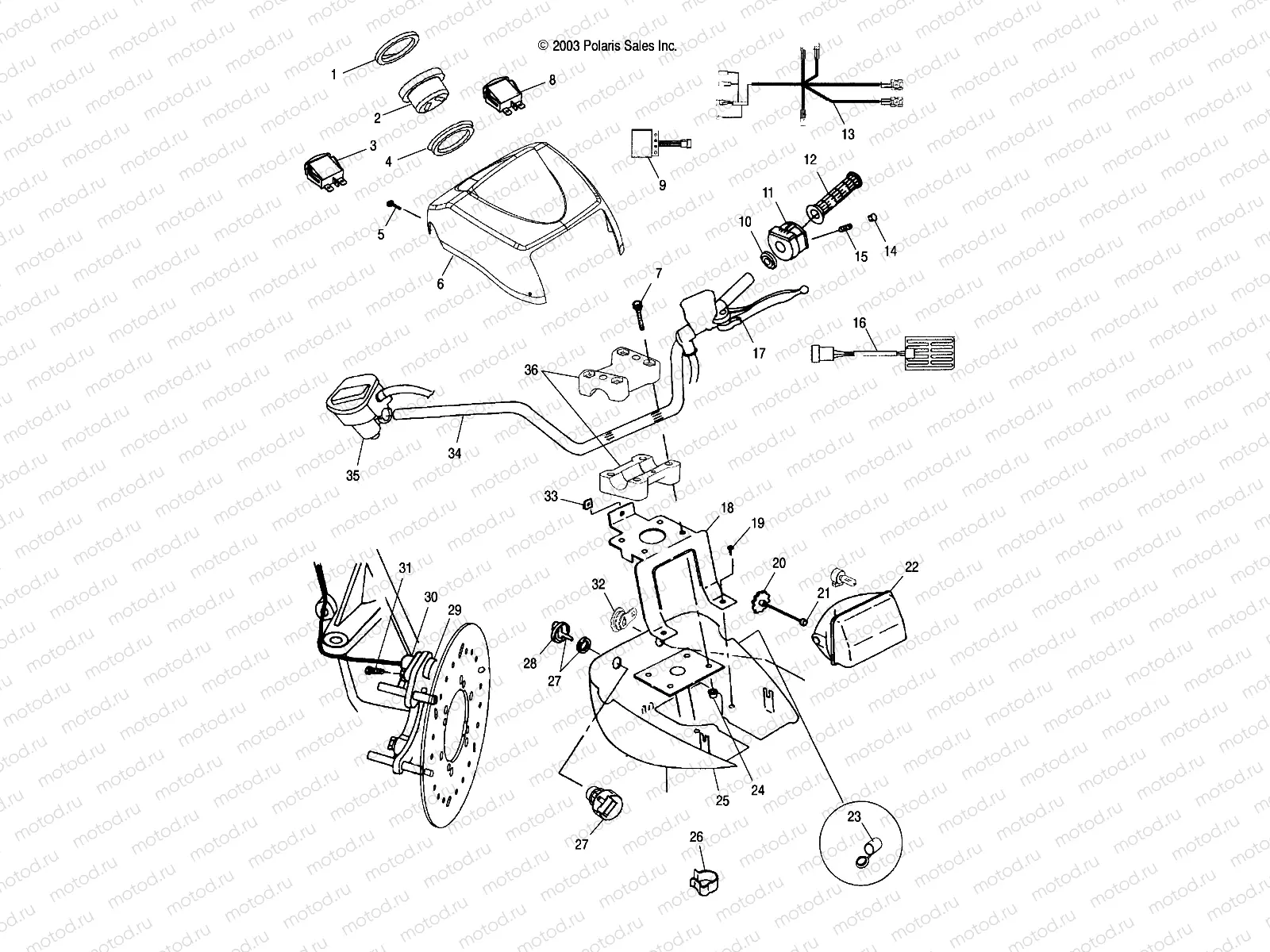

HANDLEBAR and HEADLIGHT POD - A04CH68AP/AQ/AU/CU (4987468746C01) | HANDLEBAR and HEADLIGHT POD - A04CH68AP/AQ/AU/CU (4987468746C01)

HANDLEBAR and HEADLIGHT POD - A04CH68AP/AQ/AU/CU (4987468746C01) | HANDLEBAR and HEADLIGHT POD - A04CH68AP/AQ/AU/CU (4987468746C01)

Например: 5437258

1

5437258

BEZEL-REPLACEMENT ATV CLUSTER

2

3280431

ASM-CLUSTER 110MM W/FUEL

3

4010964

SWITCH-THUMB WARMER HI/LO

4

5412138

MOUNT-RUBBER INSTR. CLUSTER

5

7511881

Vis

6

5435239-455

Pod, Headlight, Upper [AC]

6

5435330-455

Pod, Headlight, Upper [AT]

6

5434706-473

Pod, Headlight, Upper (AU)(CU)

7

7517238

Vis

8

4010963

SWITCH-HAND WARMER HI/LO

9

4010970

MODULE-LOAD SHED LR 64

10

5433903

SPACER-SWITCH LH 99

11

4010591

SWITCH-HANDLEBAR HI/LO/MODE

12

5433834-070

GRIP-HNDLBAR 7/8 ID BLACK

13

2461213

HARNESS-WIRE ATV POD WARMERS

14

5432952

PLUG HOLE

15

7517625

SCREW SET

16

2410567

ASM-HAND WARMER ATV

18

5244969-329

BRKT-POD MOUNTING E-COAT

19

7517317

Vis

20

4032079

KNOB ADJUSTING

21

4032078

ROD ADJUSTING

22

4010253

BULB-HEADLIGHT 50 WATT

22

2204143

KIT-HARNESS HEADLIGHT

22

2410268

HEADLAMP ASM. 50 WATT

23

4010638

RECEPTACLE-POD MNT 12 VOLT

24

7542122

NUT-NYLOK

25

5433762-177

POD-HEADLIGHT LOWER SNAP BLKMT

25

5433762-070

POD-HEADLIGHT LOWER SNAP BLK

26

7080631

CLIP CABLE RETAIN

27

4010278

Clé Vierge

27

4010321

Clé Vierge

27

4012165

SWITCH-KEY 3 POS MT SLV

28

5433534

KEY COVER-KEYSWITCH

29

5132382

CAP-HALL SENSOR

30

4010298

SENSOR HALL EFFECT

31

7517658

Vis

32

5412330

Grommet, Choke Hole

33

7670127

CLIP-SCREW #8/10 .03-.10 PANEL

34

5242987-067

TUBE-HANDLEBAR BLK

35

LR--

CALIPER, BRAKE, RH

36

5631973

BLOCK-HANDLEBAR .89 ID

36

5631972

BLOCK-HANDLEBAR PEG 89 ID

36

5631146

Block Handlebar Pegged

36

5631147

Block Handlebar
