Главная Каталог товаров Polaris EPC 2004 Polaris ATV Polaris 2004 A04CH68AU/CU SPORTSMAN 700 - A04CH68AP/AQ/AU/CU Polaris 2004 ATV AIR BOX - A04CH68AP/AQ/AU/CU (4987468746B01) | AIR BOX - A04CH68AP/AQ/AU/CU (4987468746B01)

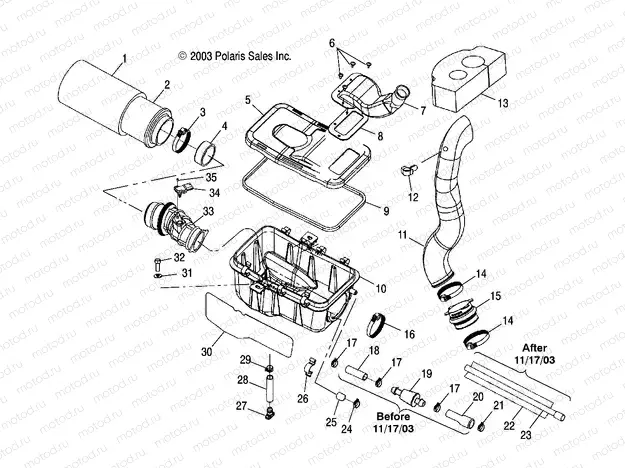

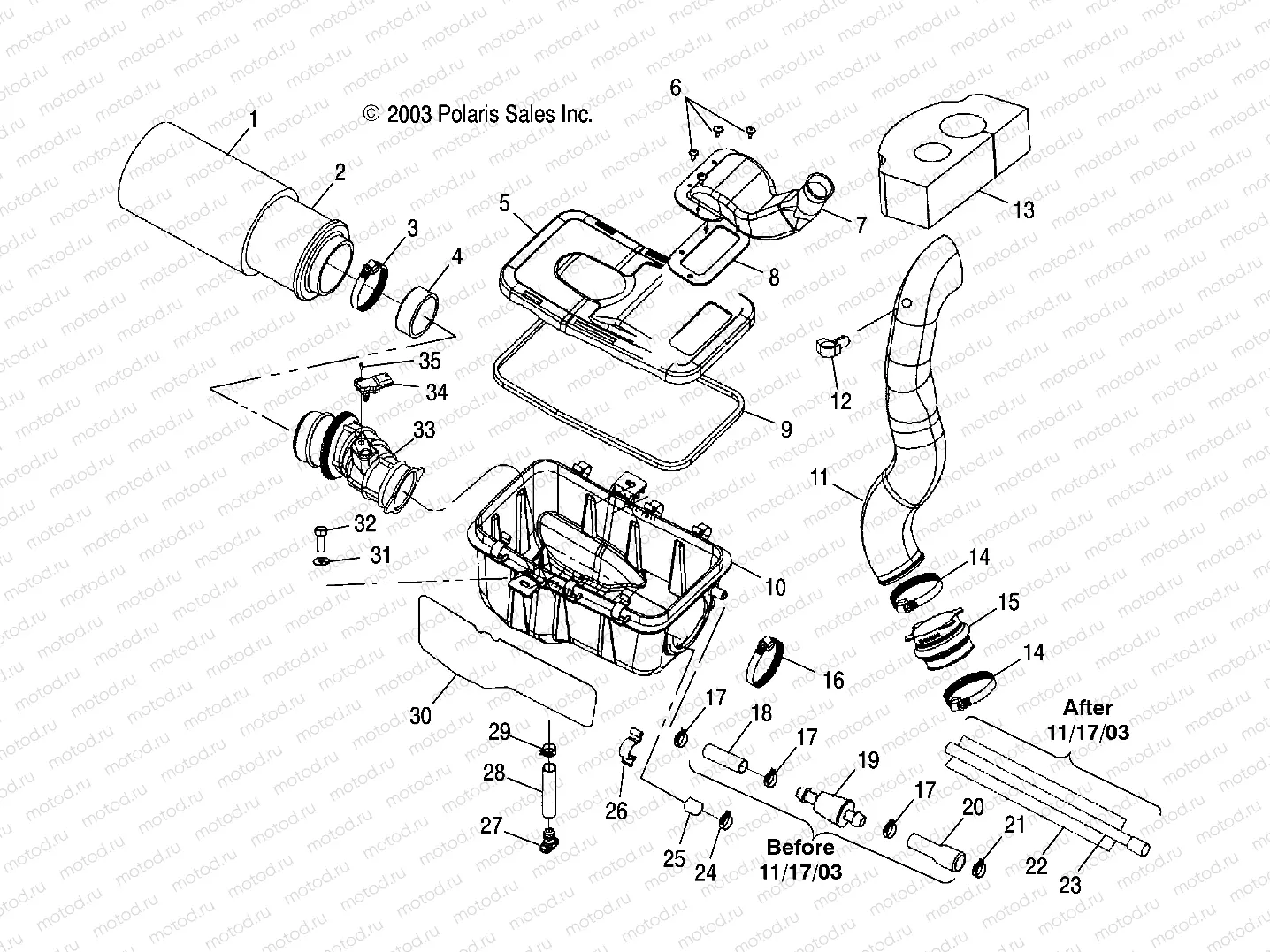

AIR BOX - A04CH68AP/AQ/AU/CU (4987468746B01) | AIR BOX - A04CH68AP/AQ/AU/CU (4987468746B01)

AIR BOX - A04CH68AP/AQ/AU/CU (4987468746B01) | AIR BOX - A04CH68AP/AQ/AU/CU (4987468746B01)

Например: 5811633

1

5811633

FILTER PRECLEAN SLEEVE

2

7082101

FILTER-AIR INTAKE

3

7080413

CLAMP BAND NARROW

4

5433847

SLEEVE-CARB INNER

5

5432868

COVER AIRBOX

6

7517317

Vis

7

5436938

DUCT-AIR INTAKE

8

5411422

GASKET INTAKE

9

5813949

SEAL-AIRBOX COVER

10

5433678

BOX AIR

11

5434044

DUCT-AIR INLET CLUTCH

12

7670102

CLIP

13

5812316

SEAL-FOAM

14

7080451

CLAMP HOSE S.S.

15

LR--

CALIPER, BRAKE, RH

16

7080511

CLAMP NARROW BAND

17

7080699

CLAMP HOSE

18

8450073-600

LINE BREATHER 3/8 ID.

19

2530029

FILTER BREATHER IN LINE

20

5411966

HOSE-BREATH FORMED W/CHAFE10CM

21

7080694

CLAMP HOSE SPRING

22

8450108-34

SHEATH-REFLECT SLEEVE 19X34CM

23

2202744

KIT-BREATHER LINE SINGLE PC W/

24

7080534

CLAMP HOSE

25

5433396

CAP END 406-12 3/4BLK

26

5242044

CLIP

27

5435299

PLUG-TRAP

27

5432377

PLUG TRAP

28

8450059-150

FUEL LINE

29

7080650

CLAMP HOSE

30

5811650

FOIL

31

7558301

WASHER FLAT

32

7515179

Vis

33

5412518

BOOT-THROTTLE BODY

34

2411528

SENSOR-TMAP DSS3-TF

35

7517658

Vis
