Главная Каталог товаров Polaris EPC 2004 Polaris ATV Polaris 2004 A04CH68AU/CU SPORTSMAN 700 - A04CH68AP/AQ/AU/CU Polaris 2004 ATV ENGINE MOUNTING - A04CH68AP/AQ/AU/CU (4987468746A13) | ENGINE MOUNTING - A04CH68AP/AQ/AU/CU (4987468746A13)

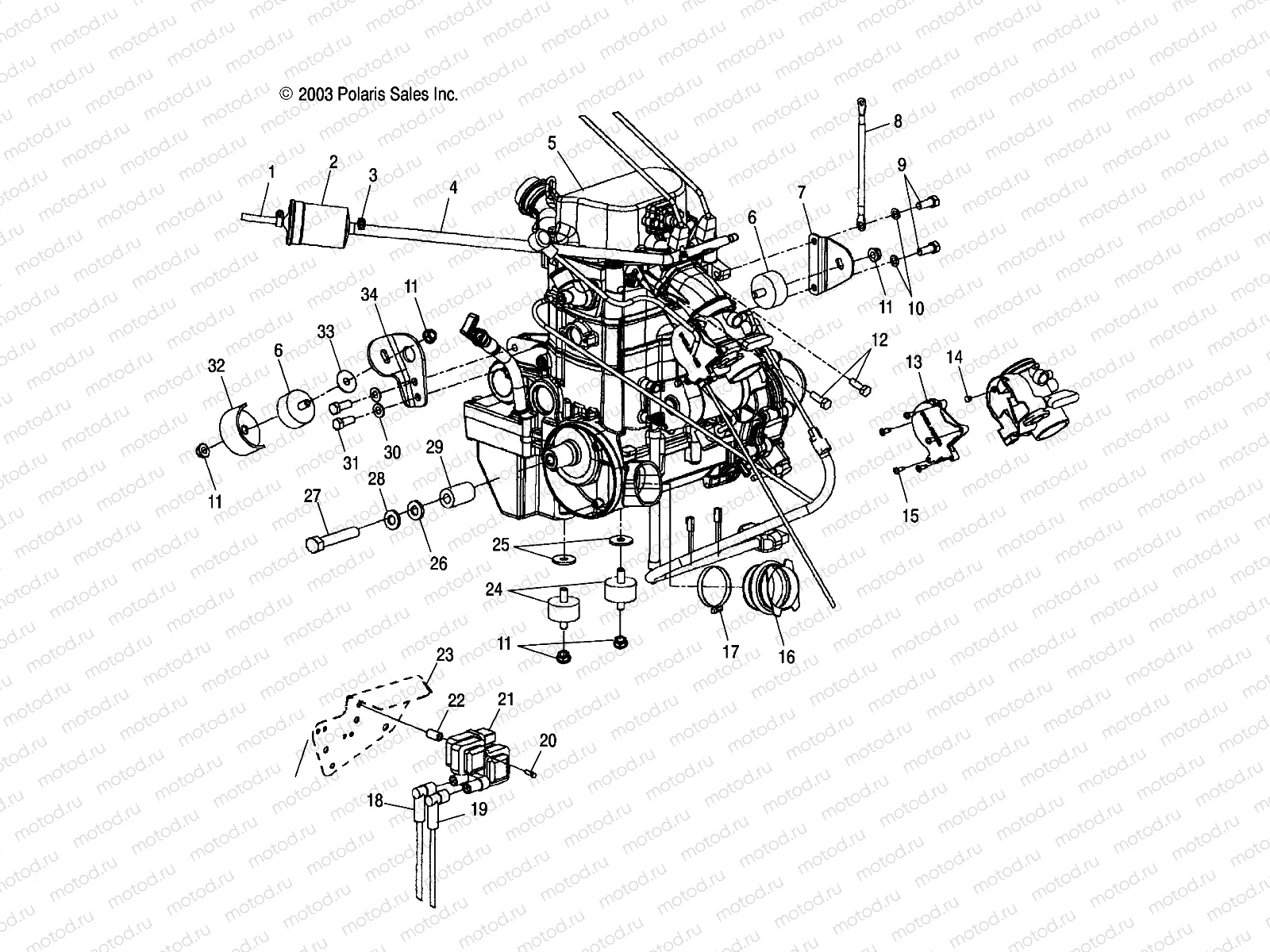

ENGINE MOUNTING - A04CH68AP/AQ/AU/CU (4987468746A13) | ENGINE MOUNTING - A04CH68AP/AQ/AU/CU (4987468746A13)

ENGINE MOUNTING - A04CH68AP/AQ/AU/CU (4987468746A13) | ENGINE MOUNTING - A04CH68AP/AQ/AU/CU (4987468746A13)

Например: 8450044-58

1

8450044-58

Line, Fuel

2

2520223

FILTER-FUEL

3

7080417

CLAMP HOSE(SCREW TYPE)

4

8450106

LINE-FUEL

5

9990000

Suspension, Rear

6

3024012

ISOLATOR-3/8-24M/M 60DURO

7

5247368

BRKT-MNT ENGINE TOP PLTD

8

4010132

CABLE GND-ENGINE

9

7516714

SCREW H.H.CAP

10

7552901

Rondelle (Lock)

11

7547108

Nut

12

7516734

Vis

13

1202578

ASM-COVER AND O-RING TB

14

3130543

GUIDE CABLE

15

3131515

SCREW SHOULDER

16

5412634

BOOT-CLUTCH INTAKE 2.25 I.D.

17

7080451

CLAMP HOSE S.S.

18

4010845

WIRE-IGNITION BLK 55.5CM

18

4011060

WIRE-SPARKPLUG 59.3CM

19

4010909

WIRE-IGNITION BLK 47CM

19

4010909

WIRE-IGNITION BLK 47CM

20

7518322

SCREW-10-24X1.75 TX/PH.TRI WAX

21

2876049

KIT-IGNITION COIL TWIN EFI

22

5133658

SPACER-COIL

23

LR--

CALIPER, BRAKE, RH

24

3022076

ISOLATOR-3/8-24M 3/8-16M 60DUR

25

7555815

WASHER FLAT

26

5210748

Rondelle

27

7519287

BOLT-CLUTCH ATV 7/16X20X8

28

7575202

Rondelle (Lock)

29

5430261

BUSHING

30

7552603

Rondelle (Lock)

31

7512492

Vis

32

5245043

BRKT-TORQUE STOP PLTD

33

7555823

Rondelle

34

5244771-067

MNT-ENGINE LOWER FRONT BLK
