Главная Каталог товаров Polaris EPC 2004 Polaris ATV Polaris 2004 A04CH68AU/CU SPORTSMAN 700 - A04CH68AP/AQ/AU/CU Polaris 2004 ATV FRONT CAB - A04CH68AP/AQ/AU/CU (4987468746A05) | FRONT CAB - A04CH68AP/AQ/AU/CU (4987468746A05)

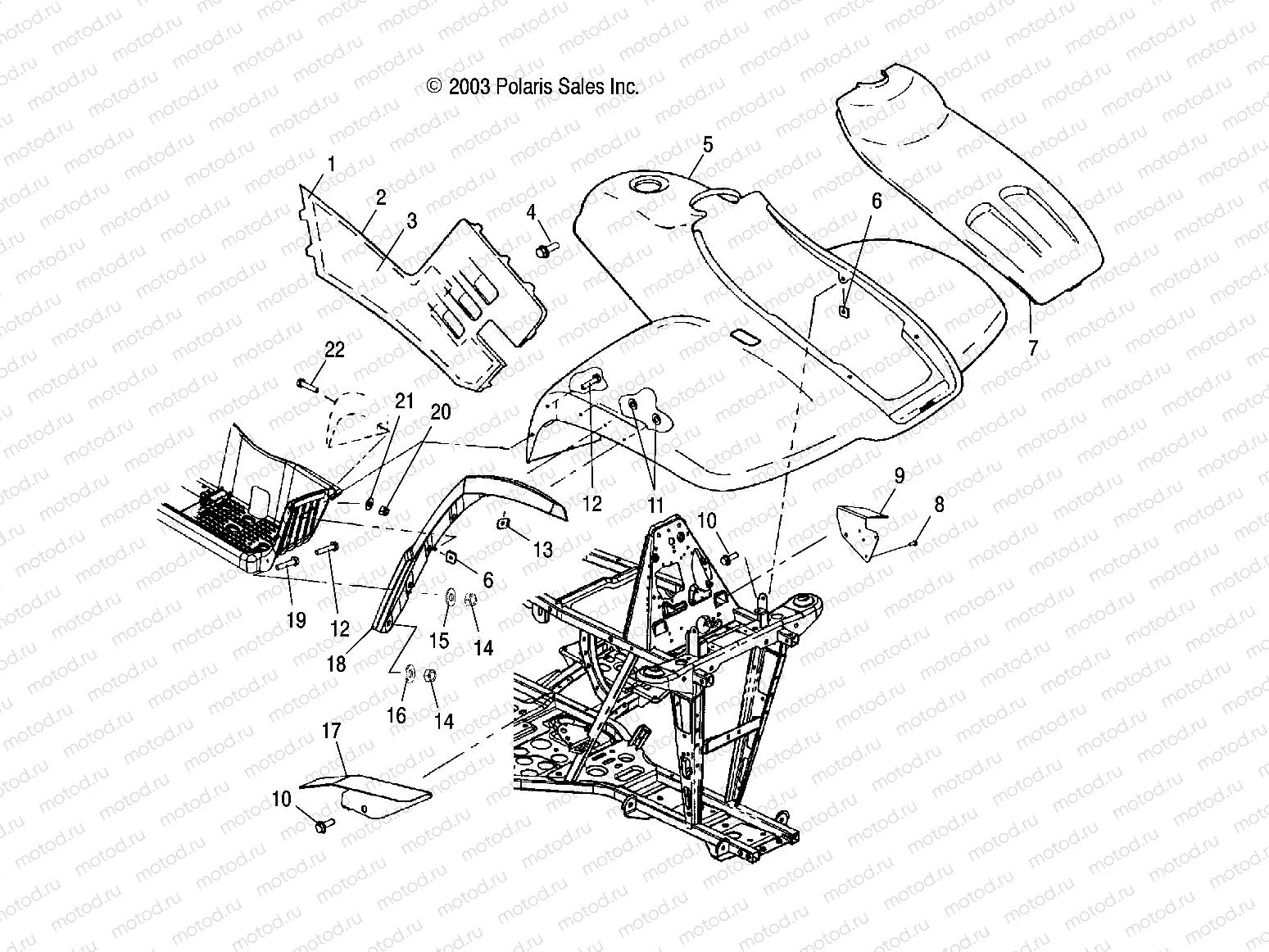

FRONT CAB - A04CH68AP/AQ/AU/CU (4987468746A05) | FRONT CAB - A04CH68AP/AQ/AU/CU (4987468746A05)

FRONT CAB - A04CH68AP/AQ/AU/CU (4987468746A05) | FRONT CAB - A04CH68AP/AQ/AU/CU (4987468746A05)

Например: 5811491

1

5811491

FOIL-RH

2

2632819-455

Panel/Foil, Break-Up, RH [AT]

2

5435627-455

Panel, Side, NBU, LH (AP)(AQ)

2

2632471-473

ASM-PANEL/FOIL RH S.VENOM MET

2

5435328-473

Panel, Side, Silver, LH (AU)(CU)

3

5812326

FOIL-SIDE PANEL RH

4

7512232

Vis

5

2632748-177

ASM-CAB FOAM/FR.SVC BLK MET

5

2632818-455

Cab, Front, Break-Up [AT]

6

7670057

NUT SPEED

7

5435166-455

COVER-FR N.B.U.SUB.CAMO

7

5435110-177

Cover, Front, Black Met (AU)(CU)

8

7517867

SCREW M5X0.8X10 PHPN ZY L/W SE

9

5246872

GUARD SPLASH LH

10

7517386

Vis

11

7670135

NUT-SPEED 3/16

12

7517312

Vis

13

7670156

CLIP-RETAINING BARBED

14

7542122

NUT-NYLOK

15

7556034

Rondelle

16

7555859

WASHER FLAT

17

5246021-067

GUARD-SPLASH RH BLK

18

5434702-070

GUARD-MUD FRONT LH BLK

18

5434703-070

GUARD-MUD FRONT RH BLK

19

7515158

Vis

20

7541925

NUT NYLOK 10-24 Y

21

7555792

Rondelle

22

7519641

BLT-10-24X3/4 MACHSCR PHL PAN
