Главная Каталог товаров Polaris EPC 2004 Polaris ATV Polaris 2004 A04CH68AU/CU SPORTSMAN 700 - A04CH68AP/AQ/AU/CU Polaris 2004 ATV ELECTRICAL/TAILLIGHT - A04CH68AP/AQ/AU/CU (4987468746C09) | ELECTRICAL/TAILLIGHT - A04CH68AP/AQ/AU/CU (4987468746C09)

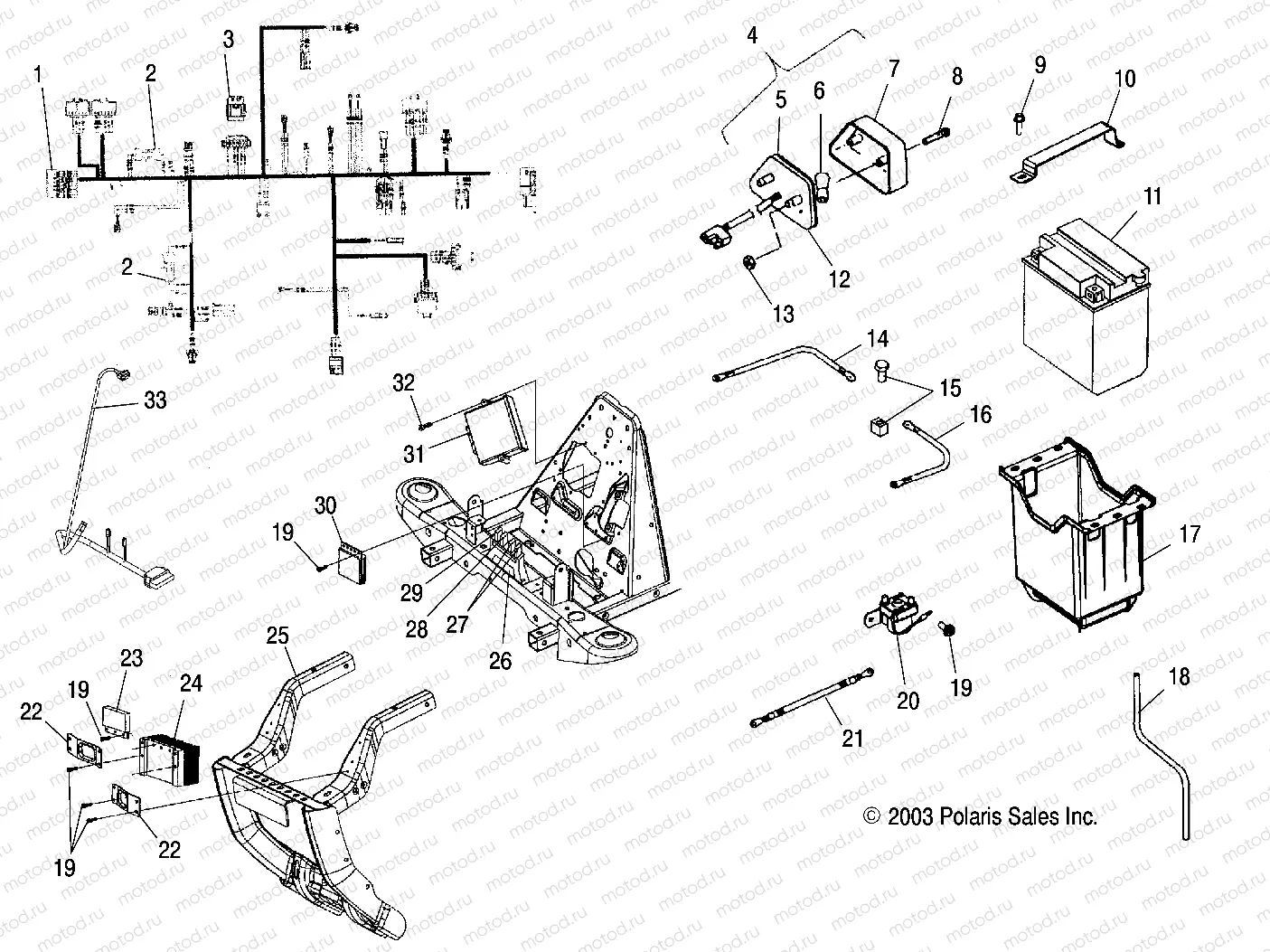

ELECTRICAL/TAILLIGHT - A04CH68AP/AQ/AU/CU (4987468746C09) | ELECTRICAL/TAILLIGHT - A04CH68AP/AQ/AU/CU (4987468746C09)

ELECTRICAL/TAILLIGHT - A04CH68AP/AQ/AU/CU (4987468746C09) | ELECTRICAL/TAILLIGHT - A04CH68AP/AQ/AU/CU (4987468746C09)

Например: 2202670

1

2202670

KIT-FUSIBLE LINK 1.0MM

1

2203801

KIT-HARNESS TPS ATV/RGR TWINS

1

2875543

KIT-HARNESS ENGINE TEMP

1

2202607

KIT-FUSIBLE LINK 0.8 MM

1

2878494

KIT-HARNESS T-BAP T-MAP

1

2410529

HARNESS-CHASSIS ATV EFI

1

2410529

HARNESS-CHASSIS ATV EFI

1

2878077

KIT-HARNESS CPS

2

2410323

BREAKER-CIRCUT 20 AMP

3

2204890

KIT-HARNESS RESISTOR MODULE

4

2410320

ASM-TAILLIGHT 12V SERIES FIL

5

4032045

Gasket

6

4030043

BULB

7

4032046

Taillight lens

8

4032029

Vis

9

7517386

Vis

10

5418182

STRAP-BATTERY HOLD DOWN-C

10

5247376

STRAP-BATTERY HOLD DOWN 30 AMP

11

4016741

La batterie

12

4032064

BACKING TAILLIGHT

13

7670054

NUT PUSH-ON

14

4010470

Cable

15

2202099

BATTERY BOLT-KIT 30AH

16

4010471

CABLE-RED 8.5 BATTERY/SOLENOID

17

5434037

BOX-BATTERY

18

5432077

TUBE VENT

19

7512024

Vis

20

4011335

SWITCH-MAGNETIC

21

4010376

CABLE SOLENOID/STATER.25

22

5245554

Bracket, Heat Sink

23

2205239

Rectifier, Regulator

24

5133056

HEAT-SINK RECT

25

1014412

Guard, Brush

26

7171032

DECAL-FUSE BLOCK

27

2410365

FUSE-SELF RESETTING 20 AMP

28

2410364

FUSE-SELF RESETTING 15 AMP

29

2410363

FUSE-SELF RESETTING 6 AMP

30

4013353

HARNESS-SOLID STATE RELAY

31

4011560

ECU-CALIBRATION ATV EFI 06/700

32

7518322

SCREW-10-24X1.75 TX/PH.TRI WAX

33

2461227

Asm., Harness
