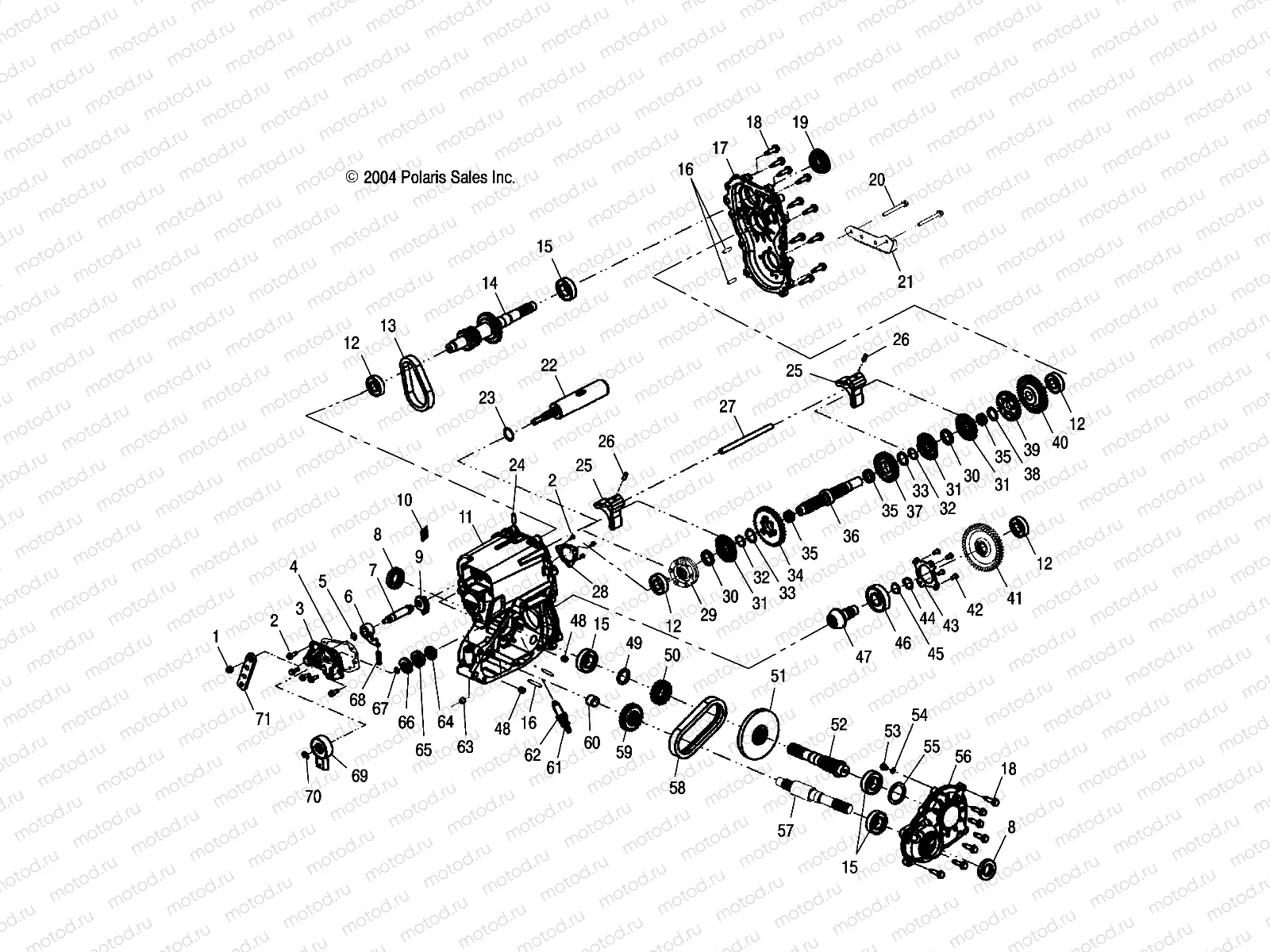

GEARCASE - A04CH68AP/AQ/AU/CU (4994279427D05) | GEARCASE - A04CH68AP/AQ/AU/CU (4994279427D05)

GEARCASE - A04CH68AP/AQ/AU/CU (4994279427D05) | GEARCASE - A04CH68AP/AQ/AU/CU (4994279427D05)

Например: 1332348

0

1332348

ASM-GEARCASE 2.70 H

1

3233961

NUT-LOCK HEX FLANGE NYLON 5/16

2

3233826

Vis

3

3234188

COVER GEARCASE

5

3233869

O-Ring

6

3233829

PAWL-DETENT

7

3233831

SHAFT-SHIFT

8

3233788

SEAL-TRIPLE LIP

9

3233832

GEAR-SECTOR 31T-CUT TO 11T

10

3234143

LABEL-OIL FILL/LEVEL CHECK

11

3234128

GEARCASE-MAIN MACH

12

3233018

Roulement

13

3233036

CHAIN SILENT 34P

14

3234133

SUB ASM-INPUT SHAFT

15

3233019

Roulement

16

3233247

Dowel pin

17

3234127

COVER LH MAIN

18

3234114

SCR-TAPPING HEX WASHER HD 5/16

19

3233874

SEAL-DUAL LIP

20

3234042

Vis

21

3234142

BRACKET-TRANSMISSION MOUNT

22

3233910

DRUM-SHIFT

23

3233548

O-Ring

24

3233524

TUBE VENT

25

3234141

SUB ASM-SHIFT FORK W/PIN

26

LR--

CALIPER, BRAKE, RH

27

3233860

RAIL-SHIFT SHAFT C VERSION

28

3233915

PLATE-PARK 12 FACE

29

3234040

ENGAGEMENT-DOG PARK 6-FACE

30

3234144

SPRING-WAVE 1.35 ID X .353

31

3233875

DOG-ENGAGEMENT 6 FACE

32

3233850

RING-RETAINING

33

3233851

Rondelle

34

3233852

GEAR-33T 6 FACE ENGAGEMENT

35

3233718

BEARING NDL SPLIT CAGE

36

3233853

SHAFT-REVERSE

37

3233854

SPROCKET-24T 6 FACE ENGAGEMENT

38

3233855

Rondelle

39

3234135

GEAR-HELICAL 23T 6-FACE

40

3234136

GEAR-HELICAL MID OUTPUT 51T

41

3234137

GEAR-HELICAL MID OUTPUT 56T

42

3234086

SCREW-TORX TRUSS HD

43

3234122

COVER-BEARING

44

3233106

RING SNAP

45

3233357

Entretoise

46

3235328

BEARING-BALL 180568 6305RSH2

48

3233794

PLUG-HEX HOLLOW WITH O-RING

49

3233619

WASHER THRUST

50

3233873

SPROCKET-22T/18T

51

3234911

SUBASM-GRND SPIRL BVL(411466)

52

3233911

SHAFT-OUTPUT MAIN REAR

53

3233582

BUTTON THRUST

54

3233583

SHIM .450 X .265

55

3233611

SHIM (KIT)

56

3234130

COVER-FRONT OUTPUT MACH

57

3233625

SHAFT FRONT OUTPUT

58

3233784

CHAIN-SILENT REXNORD

59

3233844

SPROCKET-22T

60

3233552

BUSHING GARLOCK

61

3234013

CLAMP-TIE

62

3233917

SUBASM-PARK LOCKOUT

63

3234043

Nut

64

3233839

GEAR-SECTOR 16T

65

3233838

DISC-LOCKOUT

66

3234082

STAR-DETENT

67

3233076

O-Ring

68

3233830

SPRING-COMPRESSION

69

3236115

SWITCH-ROTARY 6 PIN

70

3233834

RING-RETAINING

71

3233906

BELLCRANK-SHIFT DRUM
