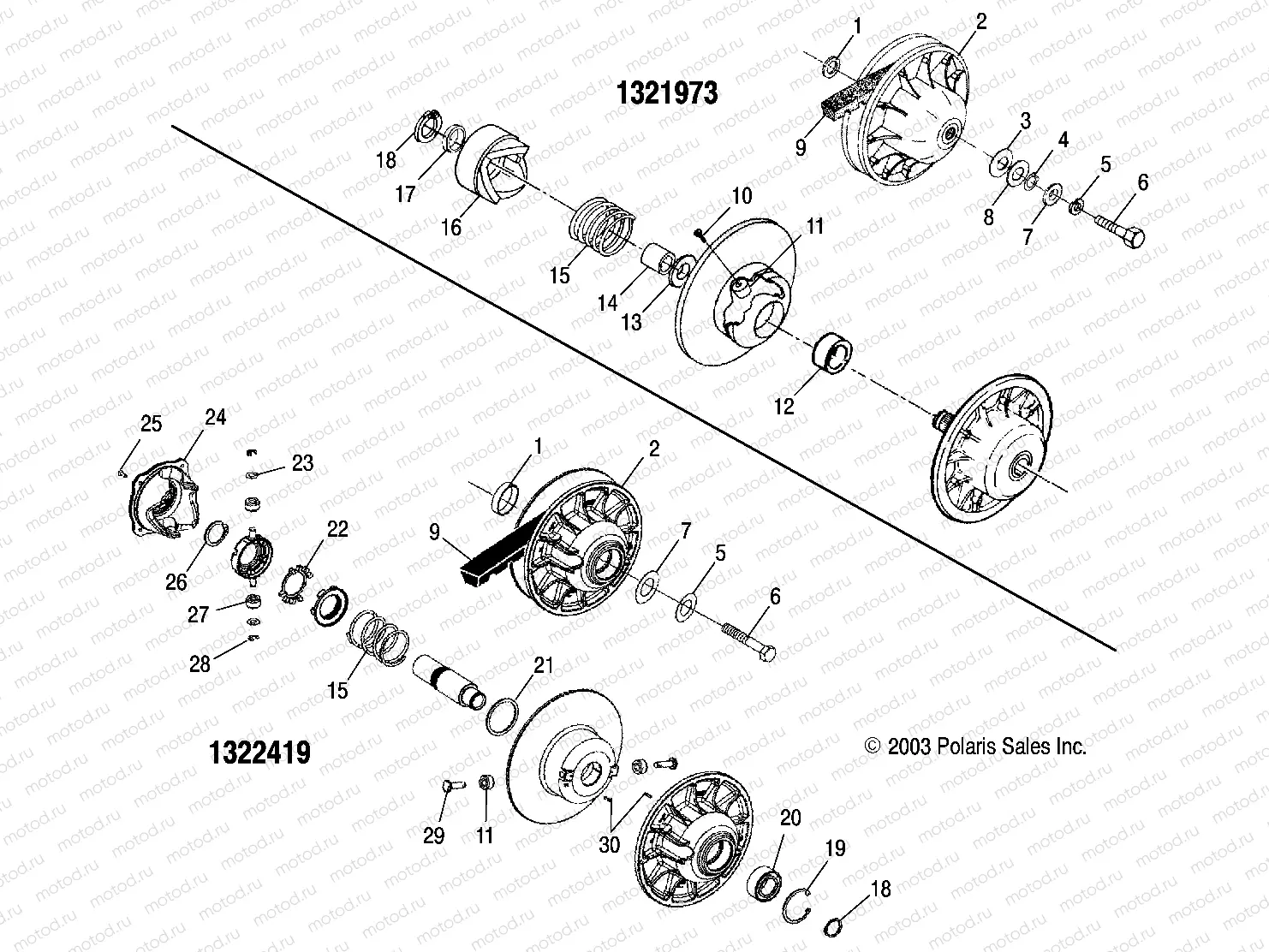

DRIVEN CLUTCH - A04CH68AP/AQ/AU/CU (4987468746C04) | DRIVEN CLUTCH - A04CH68AP/AQ/AU/CU (4987468746C04)

DRIVEN CLUTCH - A04CH68AP/AQ/AU/CU (4987468746C04) | DRIVEN CLUTCH - A04CH68AP/AQ/AU/CU (4987468746C04)

Например: 7556120

1

7556120

WASHER-.906 X 1.38 X .060

2

1322706

ASM-CLUTCH DRIVEN EBS DAMPED

2

1321973

CLUTCH ASM.DRIVEN EBS 31? W/Y

3

7556203

WASHER-1.39X2.50X.030 PTFE

4

7710461

RING RETAIN.HD.

5

7552901

Rondelle (Lock)

6

7515382

Vis

7

5250562

WASHER-DOMED SMALL

7

5220646

WASHER DOMED

8

7556010

BUSHING

9

3211091

Courroie

10

7517323

Vis (spec)

11

1321977

ROLLER-TAPER SP-21

11

3234197

ROLLER CLUTCH

12

3585710

Roulement

13

5211115

Rondelle

14

3576511

BUSHING MOVEABLE 1 INCH

15

7041635

SPRING WHT/YELLOW

15

3234199

SPRING COMPRESSION WHT/YLW

16

5132751

RAMP-STA EBS 31? MACH

17

5210753

SPACER .032

18

7710448

RING RETAINING

18

3234205

RING RETAINING

19

3234204

RING RETAINING BSC INTERNAL

20

3234203

BEARING BALL ANGULAR CONTACT

21

3234200

WASHER THRUST

22

2206554

K-CLUTCH PTD SPIDER DAMPER

23

7556226

WASHER-THRUST

24

3234208

Asm., Cam

25

3234192

SCREW CAP TORX SFH #10-32X.625

26

7710522

RET.RING-EXT 1.500

27

3233407

Roller, Clutch

28

7710523

RET.E-RING-E T.375

29

3234201

PIN ROLLER

30

3234202

PIN SPRING SLOTTED .125X.625
