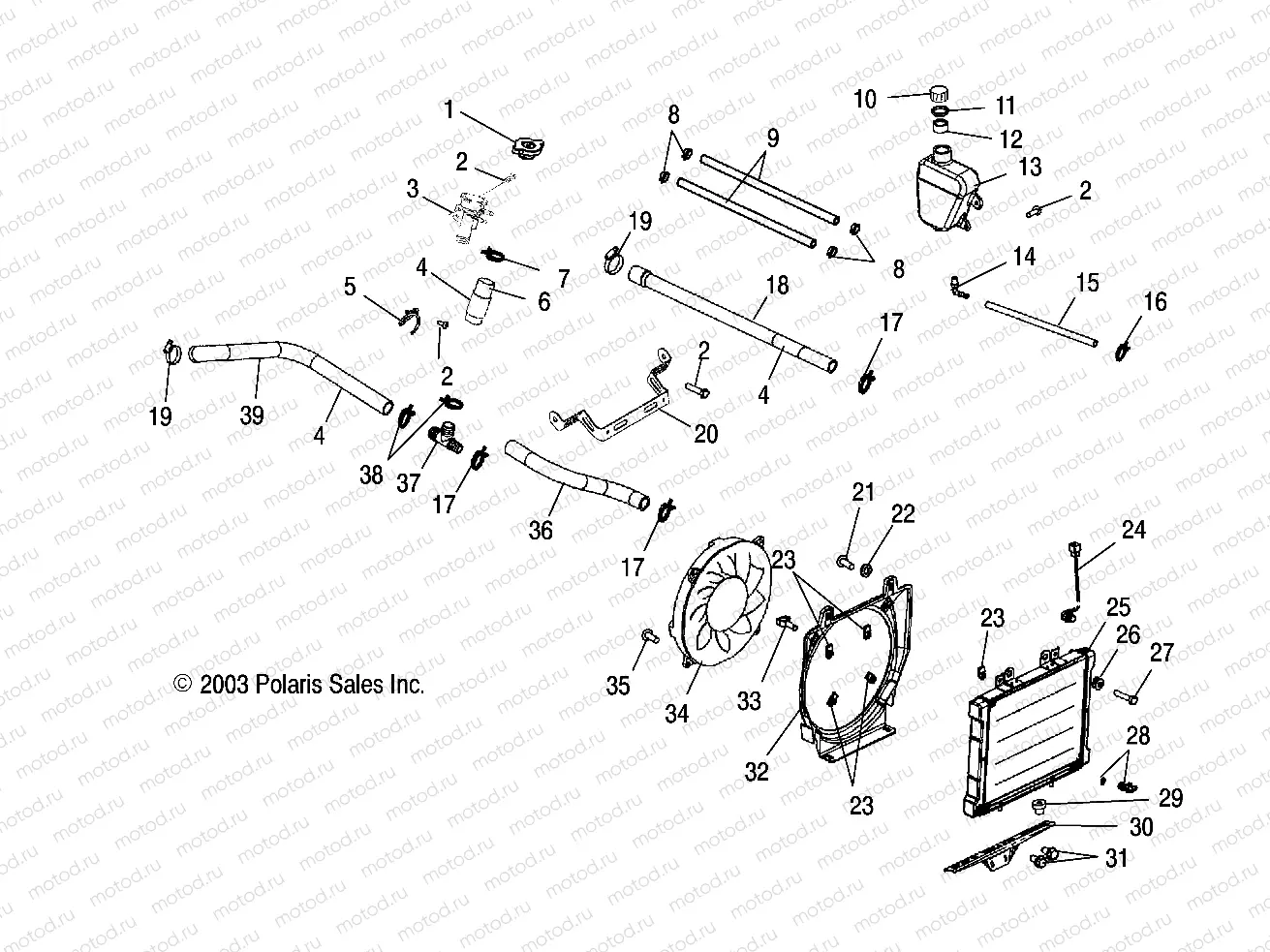

COOLING SYSTEM - A04CH68AP/AQ/AU/CU (4987468746A10) | COOLING SYSTEM - A04CH68AP/AQ/AU/CU (4987468746A10)

COOLING SYSTEM - A04CH68AP/AQ/AU/CU (4987468746A10) | COOLING SYSTEM - A04CH68AP/AQ/AU/CU (4987468746A10)

Например: 1240508

1

1240508

CAP-PRESSURE 13 PSI

2

7512084

Vis

3

5435196

FILLER-NECK REMOTE COOLANT 2FI

4

5521597

GUARD-HOSE 9

5

7042089

RETAINER-HOSE WIRE FORM

6

5413671

HOSE-20R3 1.0 ID X 9.62

7

7080843

CLAMP SPRINGBAND 32/12

8

7080003

CLAMP HOSE

9

8450040-600

LINE FUEL 1/4 ID(600 CM.)

10

5430743

CAP OVERFLOW

11

5810279

GASKET

12

5433774

CAP PLUG9X(GRN) FLEX TEMP

13

5436936

TANK-SURGE

14

7052065

FITTING 90 DEGREE

15

8450003-1525

LINE FUEL 1/4 ID(1525 CM.)

16

7080307

CLAMP HOSE

17

7080826

CLAMP-ROTO CLIP

18

5413672

HOSE-20R3 1.0 ID X 21.5

19

7080614

CLAMP HOSE

20

5246656

BRKT-RADIATOR MNT UPPER

21

7518014

Vis

22

7556196

Rondelle

23

7547197

CLIP-U M6.0X1.0

24

4010161

SENSOR-THERMAL/HARNESS

25

1240521

ASM-RADIATOR 324X360 VGT

26

5411975

GROMMET/INSERT-ASM

27

7515179

Vis

28

7052296

VALVE-PLASTIC DRAIN

29

5410584

BUSHING-MOUNT LOWER RADIATOR

30

5245773-067

BRKT-RADIATOR LOWER BLK

31

7517386

Vis

32

5437845

SHROUD-FAN

33

4010631

Clip, Wiring

34

2410413

FAN-11 ASSEMBLY PKRD

35

7517975

BOLT-M6 HEX HD

36

5413674

HOSE-LOWER ENGINE 1

37

7052397

CONNECTOR-T 1 BARBED

38

7081047

Collier
