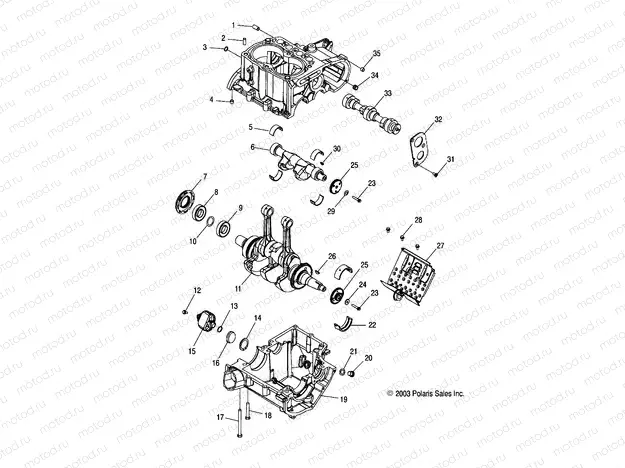

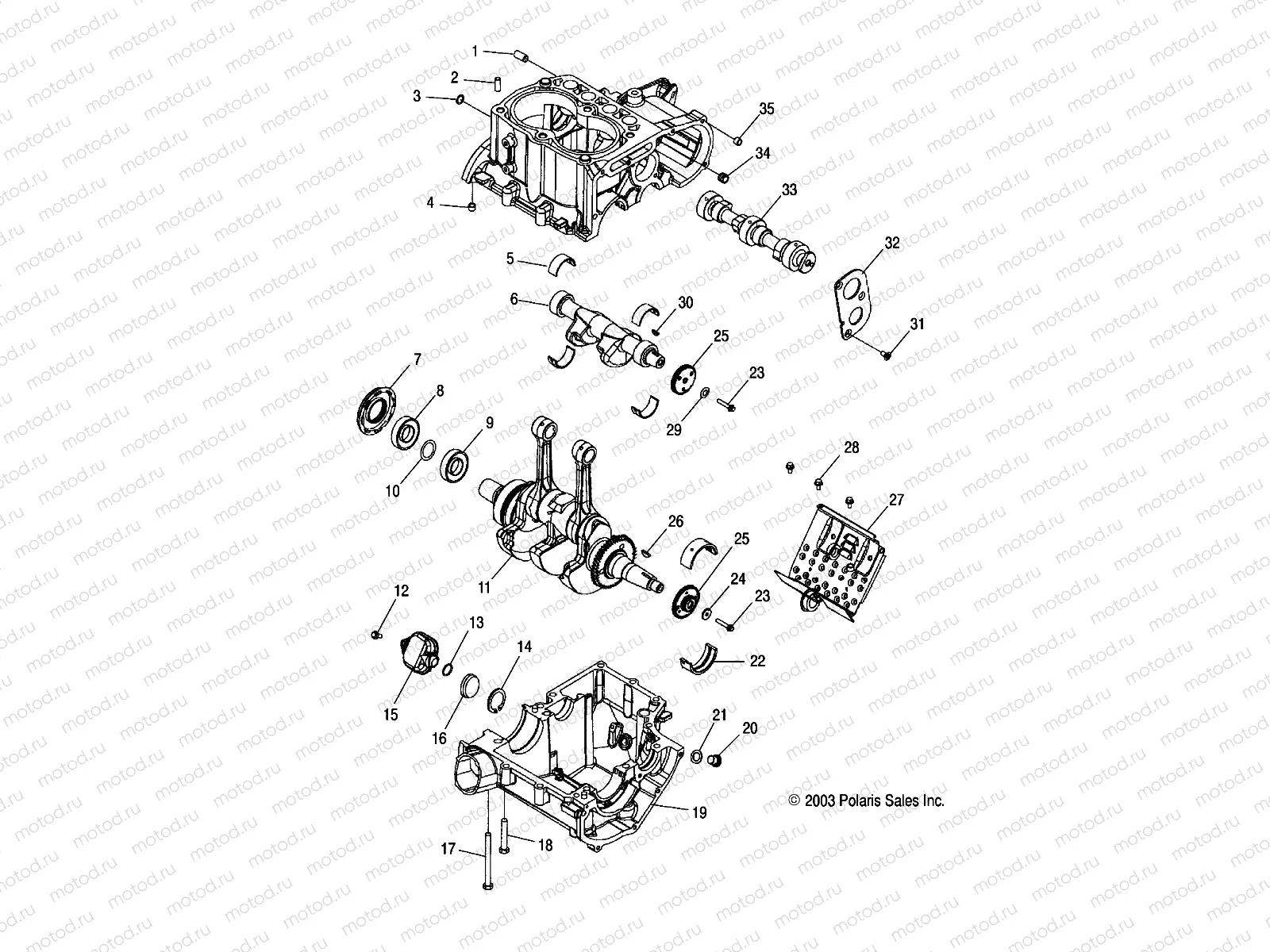

CRANKCASE and CRANKSHAFT - A04CH68AP/AQ/AU/CU (4987468746D04) | CRANKCASE and CRANKSHAFT - A04CH68AP/AQ/AU/CU (4987468746D04)

CRANKCASE and CRANKSHAFT - A04CH68AP/AQ/AU/CU (4987468746D04) | CRANKCASE and CRANKSHAFT - A04CH68AP/AQ/AU/CU (4987468746D04)

Например: 7518007

1

7518007

PLUG-HEX SOCKET 1/4X18

2

7661175

DOWEL-HOL M16X12 0600089

3

7051530

PLUG EXPANSION 19MM

4

7663001

Dowel pin

5

5132753

BEARING-JOURNAL BAL SHAFT

6

5132396

SHAFT-BALANCE

7

5412114

SEAL-FLANGE 35X72X7 CR

8

3585503

BEARING BALL

9

3514318

BEARING BALL

10

7556194

BUSHING-35X44X3.00 MM-B

11

2203067

KIT-CRANKSHAFT 700 ATV

12

7516603

BOLT(1)

13

5812016

SEAL-O-RING .070X.614

14

7710512

RING-RETAINING 1 5/8

15

1202663

ASM-OIL PICKUP

16

3060004

PLUG EXPANSION 48MM

17

7517792

SCR-M8X1.25X90 HX/FL-Y

18

7517793

SCR-M8X1.25X50 HX/FL-Y

19

2202864

KIT-CRANKCASE

20

7052306

PLUG-SOCKET M12X1.5 DIN 908A

21

5812232

WASHER-19X12X1.3-COPPER

22

3585704

BEARING MAIN JOURNAL

23

7517865

SCREW M8X1.25X45 HX/FL-D

24

7555982

WASHER RETAINING 8.5X28X3

25

2203106

KIT-GEAR SET ATV

26

7721117

KEY WOODRUFF

27

5211785

PLATE-BAFFLE CRANKCASE

28

7518045

SCR-M5X.80X8-HX/FL-Y/D

29

7556183

WASHER-SPRING 1.1X.559X.0315

30

7721131

KEY-WOOD RUFF #404

31

7517598

Vis

32

5244286

PLATE-THRUST

33

2202723

KIT-CAMSHAFT

34

7052288

PLUG-EXPANSION 13MM 500 PSI

35

7051531

PLUG EXPANSION 9MM 500PSI
