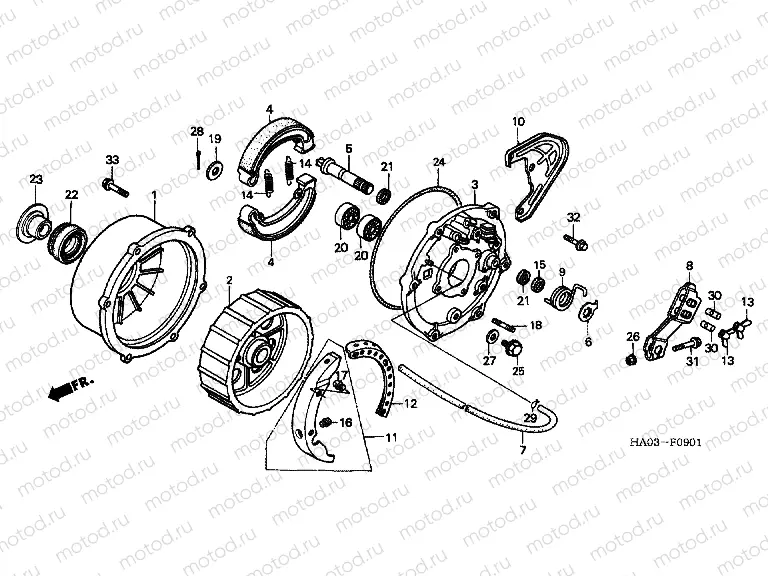

F-9-1 REAR BRAKE PANEL (2)

F-9-1 REAR BRAKE PANEL (2)
Например: 40532-HA6-680
1
40532-HA6-680
COVERRR.BRAKE
2
42622-HA8-000
DRUM COMPRR.BRKT
3
43100-HA0-680
PANEL COMPREAR B
4
43120-HC4-405
Brake shoe
5
43141-HA8-000
CAMRR.BRAKE
6
43145-HA0-000
INDICATORBRAKE
7
43146-HA0-000
TÖMLŐ, SZELLŐZŐ
8
43410-HA0-010
RMR.RR.BRAKE
9
43415-HA0-680
SPG.RR.BRK.ARM (R
10
43421-HA0-770
No longer available
11
43430-HA0-680
No longer available
12
43431-HA0-680
No longer available
13
43459-VM4-000
NUT, BRAKE ADJUSTING
881 ₽/шт
14
45133-329-000
SPRING, FR. BRAKE SHOE
315 ₽/шт
15
45134-250-000
DUST SEAL, BRAKE CAM
204 ₽/шт
16
50354-428-000
RUBBER B, STOPPER
315 ₽/шт
17
50355-434-000
RUBBER C, STOPPER
315 ₽/шт
18
90151-HA8-000
Stud bolt (2, 10x32)
19
90524-030-000
Rondelle
189 ₽/шт
20
91057-HA0-681
Roulement
2 413 ₽/шт
21
91208-611-005
DUST SEAL, 14X20X4 (NOK)
291 ₽/шт
22
91262-HA8-003
DT,SEL,41X67X10.5
1 765 ₽/шт
23
91265-HA8-003
RING, SIDE SEAL
1 870 ₽/шт
24
91311-393-003
O-Ring
25
95701-060-3500
Bolt, flange, 6x35
63 ₽/шт
26
92800-12000
Vis de vidange d'huile
142 ₽/шт
27
94050-06000
Nut
55 ₽/шт
28
94109-12000
Rondelle
94 ₽/шт
29
94201-20200
PIN, SPLIT, 2.0X20
39 ₽/шт
30
95002-02070
Collier
47 ₽/шт
31
95015-32001
JOINT B, BRAKE ARM
79 ₽/шт
32
95701-100-2000
Bolt
79 ₽/шт
33
95801-060-2808
Bolt
63 ₽/шт
