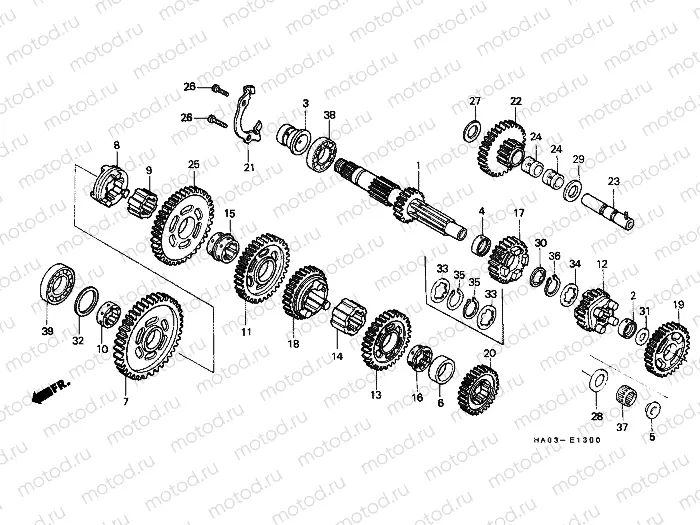

E-13 TRANSMISSION

E-13 TRANSMISSION
Например: 23211-HA0-680
1
23211-HA0-680
MAINSHAFTTRANSMI
2
23212-HA0-000
BUSH17MM
1 441 ₽/шт
3
23213-HA0-000
BUSH22MM
1 750 ₽/шт
4
23214-HA0-000
BUSH A, 22MM
1 363 ₽/шт
5
23219-HA0-000
LEMEZ, OLAJVEZETŐ
6
23224-HA0-680
COLLARCOUNTER SH
7
23411-HN0-670
GEAR,C-1
10 698 ₽/шт
8
23412-HA7-670
SHIFTERREVERSE C
9
23413-HA7-670
COLLARSPLINE
2 051 ₽/шт
10
23414-HA0-000
BUSH, SPLINE, 25MM
1 546 ₽/шт
11
23431-HC4-000
GEARCOUNTERSHAFT
12
23441-HA0-000
GEARM-3
13
23451-HA7-770
GEARCOUNTERSHAFT
14
23453-HA0-000
COLLARSPLINE C-4
15
23454-HA0-770
BUSHSPLINE
16
23455-HA0-000
BUSHSPL 25MM B
17
23461-HA0-770
FOGASKERÉK, BEHAJTÓTENGELY NEGYEDIK (28T)
18
23471-HA0-000
GEARC-4
19
23481-HA0-000
Fogaskerék, behajtótengely ötödik (32t)
20
23491-HA0-000
Fogaskerék, kihajtótengely ötödik (29t)
21
23521-HA0-000
PLATEBRG SET
1 196 ₽/шт
22
23721-HA0-000
GEARRVS.IDLE
23
23730-HA0-770
SHAFT COMP.REVER
24
23732-HA0-000
BUSH15MM
1 976 ₽/шт
25
23751-HA0-770
Fogaskerék, kihajtótengely hátrameneti (44t)
26
96600-060-1610
Торцевой болт (6x16)
69 ₽/шт
27
90402-HA0-000
Rondelle (14mm)
425 ₽/шт
28
90403-HA0-000
Rondelle (17mm)
417 ₽/шт
29
90412-HA0-000
Rondelle (14 mm)
30
90432-KF0-000
Rondelle
503 ₽/шт
31
90452-178-000
Rondelle (17mm)
259 ₽/шт
32
90454-HA0-000
Rondelle (20 mm)
34
90464-KE8-000
WASHER, SPLINE, 22MM
307 ₽/шт
36
90601-329-000
CIRCLIP, 22MM
307 ₽/шт
37
91001-HA0-004
Needle bearing (17mm)
38
91005-KS4-003
Roulement
1 837 ₽/шт
39
96100-620-4000
ПОДШИПНИК ВЫЖИМНОЙ
708 ₽/шт
