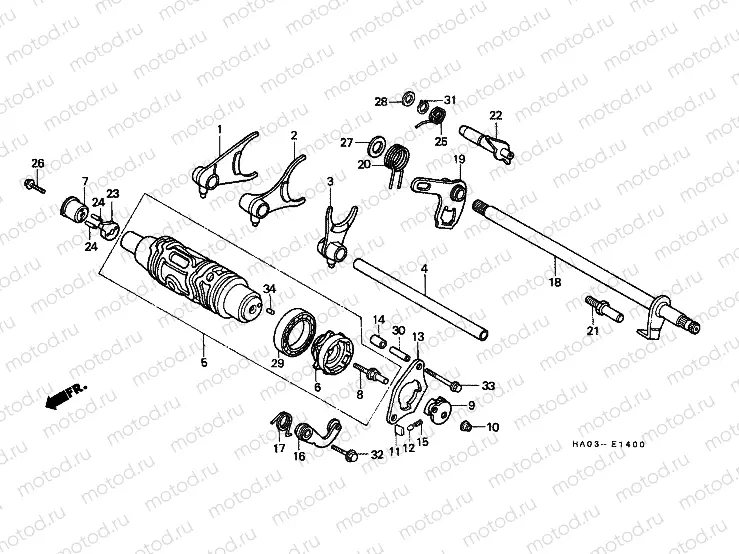

E-14 TRANSMISSION DRUM

E-14 TRANSMISSION DRUM
Например: 24211-HA0-010
1
24211-HA0-010
FORKR.GEARSHIFT
2
24212-HA0-000
FORKC GEAR SHIFT
3
24213-HA0-000
FORKM GEAR SHIFT
4
24241-HM3-670
SHAFT, GEARSHIFT FORK GUI
5
24300-HA0-003
DRUM ASSYGR SIFT ** NLA**
6
24312-HA0-004
CENTERSHIFT DRUM
7
24314-HA0-000
ROTORNEUTRAL SW
8
24315-HA0-000
PIN, SHIFTER
760 ₽/шт
9
24321-HA0-004
SHIFTER, DRUM
10
24322-HA0-000
COLLAR, SHIFTER
425 ₽/шт
11
24324-KA3-740
PAWL, RATCHET
12
24326-360-010
PLUNGER, PAWL
13
24328-HA0-000
PLATEGUIDE
14
24329-HA0-000
COL.GUID PLT DSTN
458 ₽/шт
15
24329-KA3-740
SPRING, PAWL PLUNGER
215 ₽/шт
16
24430-HA0-000
STOPR COMPDRUM
17
24435-HA0-000
SPGSIFT DRUM STP
18
24610-HA0-000
Shift shaft assy
19
24621-HA0-020
RM COMP.GEAR SH
20
24651-HA0-000
SPRING, GEARSHIFT RETURN
21
24652-HA0-000
PIN, GEARSHIFT RETURN SPR
519 ₽/шт
22
24860-HA0-000
SHAFT.COMP RVS ST
23
24862-HA0-000
CAM.RVS.STOPPER
24
24863-HA0-000
PINCAM RVS.STOP.
25
24867-HA0-000
SPG.RVS.STOPPER
26
96700-060-2010
Bolt, socket (6x20)
63 ₽/шт
27
90451-459-770
Rondelle (13mm)
244 ₽/шт
28
90546-KF0-000
Rondelle (12 mm)
259 ₽/шт
29
91051-719-003
BEARING, 16005 (KOYO)
30
91104-HA0-000
PIN DOWEL 8X26.2
353 ₽/шт
31
94510-12000
CIRCLIP, EXTERNAL, 12MM
47 ₽/шт
32
95701-060-3200
Bolt, flange, 6x32
69 ₽/шт
33
95701-060-4008
БОЛТ
63 ₽/шт
34
96220-40080
ROLLER, 4X8
24 ₽/шт
