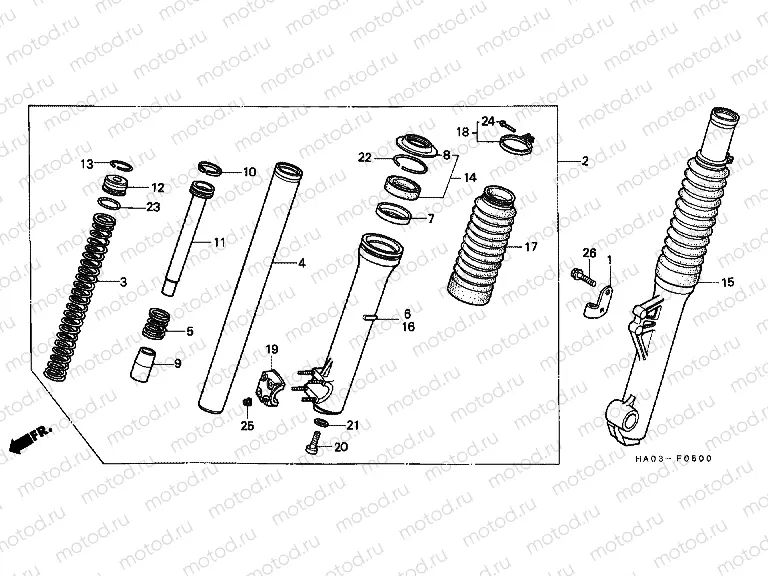

F-5 FRONT FORK

F-5 FRONT FORK
Например: 50142-HA0-000
1
50142-HA0-000
RCEVR BRK CABLE
2
51400-HA0-681
FORK ASSY.R.FR.
3
51401-HA0-003
SPG.FR.CUSHION
4
51410-HA0-003
Fork inner tube
5
51412-340-000
SPRING, FR. FORK REBOUND
440 ₽/шт
6
51420-HA0-681
CASE COMP.R.BOTT
7
51422-376-305
RING, BACK UP
8
51425-473-003
SEAL, DUST
1 573 ₽/шт
9
51432-447-731
PIECE, OIL LOCK
1 510 ₽/шт
10
51437-400-771
RING, PISTON
554 ₽/шт
11
51440-HA0-003
PIPESEAT
12
51454-HA0-003
SEATSPG.UPPER
13
51456-HA0-003
RINGSTOPPER
14
51490-473-305
Fork oil seal and dust seal kit for one tube
2 717 ₽/шт
15
51500-HA0-681
FORK ASSY.L.FR.
16
51520-HA0-681
CASE COMP.L.BOTT
17
51611-KL8-003
BOOT, FR. FORK
4 292 ₽/шт
18
51612-428-900
BAND,FR.FORK BOOT
1 054 ₽/шт
19
51634-MK5-003ZD
Holder*yr-112m-u*
1 735 ₽/шт
20
90116-383-721
Vis
429 ₽/шт
21
90544-283-000
Rondelle (Spec. 8mm)
236 ₽/шт
22
90601-369-000
RING, OIL SEAL STOP
322 ₽/шт
23
91356-HA0-003
O-Ring
24
93500-030-200G
Screw, pan (3x20)
39 ₽/шт
25
90301-473-003
Nut
456 ₽/шт
26
96001-060-1600
БОЛТ
63 ₽/шт
