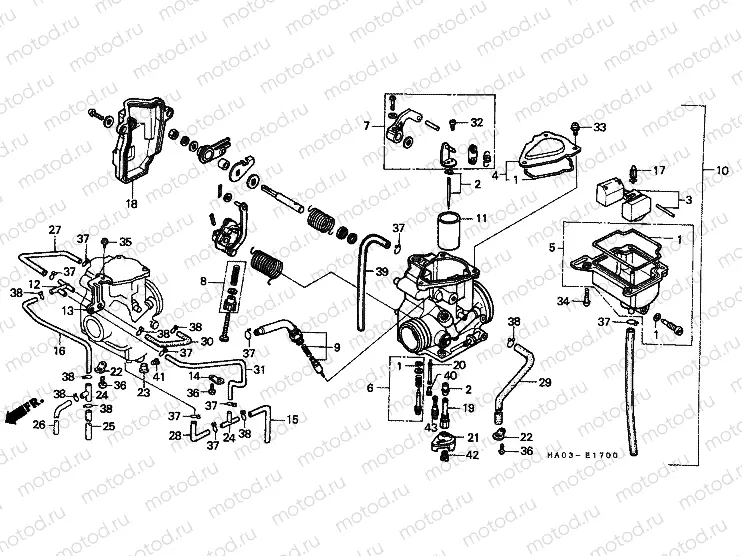

E-17 CARBURETOR

E-17 CARBURETOR
Например: 16010-HA0-681
1
16010-HA0-681
GASKET SET
2 991 ₽/шт
2
16012-HA0-003
NEEDLE SETJET
3
16013-HN5-671
FLOAT SET
3 945 ₽/шт
4
16014-HM3-L00
TOP SET
5
16015-HA0-013
CHAMBER SETFLOAT
6
16016-HM3-L00
SCREW SET
2 096 ₽/шт
7
16018-HA7-771
RM SETLINK
8
16028-KR3-980
SCREW SET
2 543 ₽/шт
9
16046-HA0-681
VALVE SETSTARTER
10
16100-HA0-683
Carburettor
11
16111-HA0-003
Diaphragme de carburateur
12
16133-HA0-003
JOINT
13
16134-HA0-003
ÖSSZEKÖTŐ
14
16134-HA0-681
ÖSSZEKÖTŐ
15
16198-ML4-405
TUBE
16
16144-HA0-681
TUBE
17
16155-397-971
VALVE COMP., FLOAT
2 170 ₽/шт
18
16160-HA0-003
BODY COVER
19
16165-HA0-003
NEEDLE JETHOLDER
20
16166-HA6-003
NOZZLEMAIN
21
16168-HA0-003
JET HOLDER
22
16179-HA0-003
BINDER
1 024 ₽/шт
23
16179-HA0-681
BINDER
24
17194-MN5-000
T-JOINT
723 ₽/шт
27
16198-HA0-681
TUBE
28
16199-GC7-004
RUBBERPIPE
507 ₽/шт
30
16199-HA0-681
TUBEAIR VENT
31
16199-943-003
TUBE, AIR VENT
32
93500-030-060H
Болт
41 ₽/шт
33
93500-040-080H
Болт
44 ₽/шт
34
93500-040-140H
Болт
39 ₽/шт
35
93892-040-1008
Screw-washer
52 ₽/шт
36
93892-040-1608
Screw-washer
52 ₽/шт
37
95002-02070
Collier
47 ₽/шт
38
95002-02080
Collier
47 ₽/шт
40
99101-HA0-0450
Jet,main,#45
472 ₽/шт
41
99112-HC4-0800
Jet (#80)
833 ₽/шт
42
99101-MEG-1300
Jet (#130)
566 ₽/шт
43
99103-MA4-0380
Jet,slow,#38
912 ₽/шт
