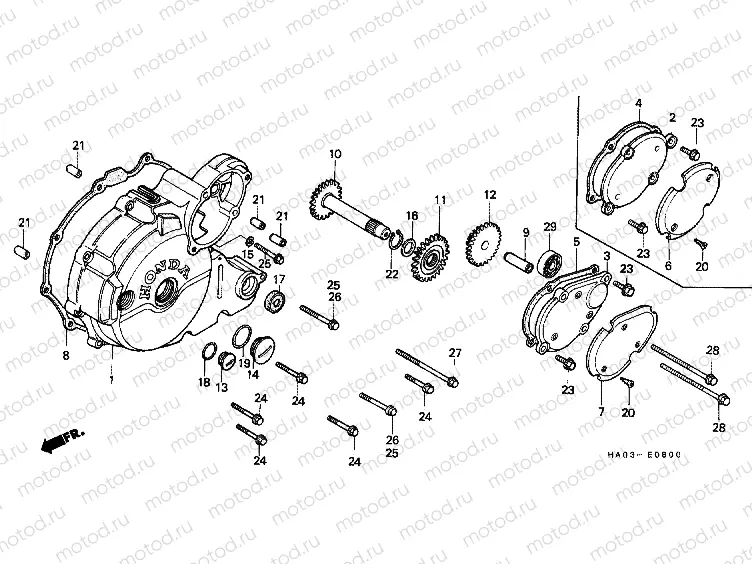

E-8 LEFT CRANKSHAFT COVER

E-8 LEFT CRANKSHAFT COVER
Например: 11341-HA6-770
1
11341-HA6-770
COVERL.CRANKCASE
3
11355-HA0-770
COVERSTARTING GE
5
11356-HA7-P00
GASKET,STARTING G
738 ₽/шт
7
11357-HA0-770
PROTECTORSTARTIN
8
11395-HC5-740
Gasket - generator cover
1 795 ₽/шт
9
28133-HA0-770
SHAFT A, STARTER REDUCTIO
744 ₽/шт
10
28130-HA0-770
SHAFT COMP.START
11
28131-HA0-770
GEAR CSTARTER RE
12
28140-HA0-770
GEAR COMP., STARTER REDUC (43T/18T)
13
90084-471-000
CAP, A.C. GENERATOR
723 ₽/шт
14
90087-428-000
CAP,30MM
1 368 ₽/шт
15
90441-706-000
Rondelle
107 ₽/шт
16
90451-GF6-000
Rondelle (12mm)
228 ₽/шт
17
91203-HC4-005
Joint
598 ₽/шт
18
91303-MG7-003
O-Ring
456 ₽/шт
19
91305-KF0-003
O-Ring
275 ₽/шт
20
90017-HA0-000
Vis
229 ₽/шт
21
94301-08140
Dowel pin (8x14)
94 ₽/шт
22
94510-15000
CIRCLIP, EXTERNAL, 15MM
47 ₽/шт
23
96001-060-1800
Bolt
63 ₽/шт
24
96001-060-2800
БОЛТ
79 ₽/шт
25
96001-060-3500
БОЛТ
79 ₽/шт
26
96001-060-4500
Болт
86 ₽/шт
27
96001-060-5500
Болт
91 ₽/шт
28
96001-060-9000
Болт
110 ₽/шт
29
96100-600-0000
ПОДШИПНИК
503 ₽/шт
