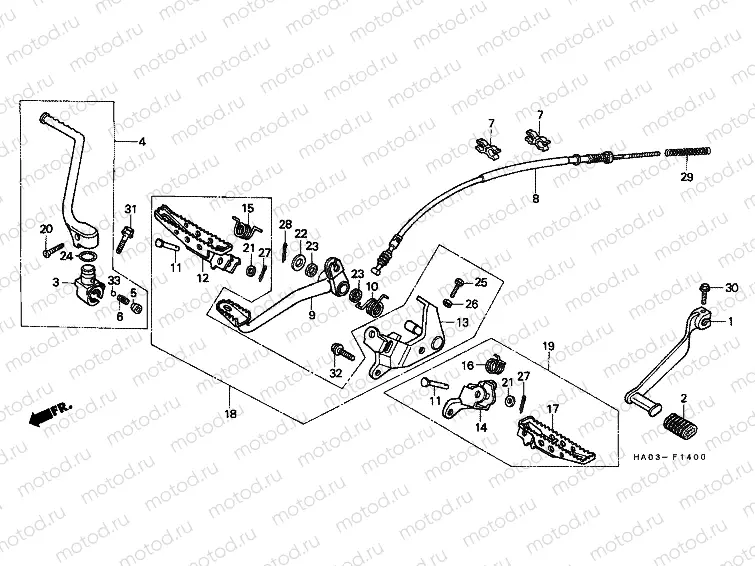

F-14 FOOTREST / PEDAL

F-14 FOOTREST / PEDAL
Например: 24700-HA0-680
1
24700-HA0-680
Gear change pedal
2
24781-371-000
RUBBER, CHANGE PEDAL
588 ₽/шт
3
28241-HA0-000
CSATLAKOZÓ, BERÚGÓKAR
4
28300-HA0-000
Kick starter lever
5
28302-965-000
PLUG, KICK ARM
254 ₽/шт
6
28333-124-000
Spring
248 ₽/шт
7
32802-MB2-000
CLAMP, HIGH TENSION CORD
8
43470-HA6-000
CABLEFOOT BRAKE
9
46500-HA6-000
PEDAL COMP.BRK.
10
46514-HA0-000
Spring (Brake pedal)
11
50603-HA0-680
PIN STEP JOINT
12
50610-HA0-770
Repose pieds (RH)
13
50615-HA0-000
PLATER STEP
14
50616-HA0-000
No longer available
15
50617-HA0-680
SPRINGR.ETEP RET
16
50618-HA0-680
SPG L STEP RETURN
17
50620-HA0-770
Repose pieds (LH)
18
50630-HA0-770
RM ASSY.R.STEP
19
50640-HA0-770
RM ASSY.L.STEP
20
90104-965-003
Csavar 6x28
385 ₽/шт
21
90450-147-000
Rondelle (8mm)
252 ₽/шт
22
90512-303-000
WASHER, 17.5MM (17,5mm)
204 ₽/шт
23
91206-968-003
DUST SEAL, 17X23X3 (NOK)
396 ₽/шт
24
91307-PH7-660
O-RING, 13.5X1.4
248 ₽/шт
25
92025-060-250A
Bolt,hex.,6x25
55 ₽/шт
26
94001-062-000S
Гайка
47 ₽/шт
27
94201-16150
PIN, SPLIT, 1.6X15
39 ₽/шт
28
94201-30250
PIN, SPLIT, 3.0X25
47 ₽/шт
29
95014-73100
SPRING A, BRAKE ROD
79 ₽/шт
30
90118-968-000
Vis
244 ₽/шт
31
95701-080-2808
ШАЙБА
79 ₽/шт
32
90105-101-1500
Bolt, Flange
436 ₽/шт
33
96211-08000
BALL, STEEL, #8 (1/4)
24 ₽/шт
