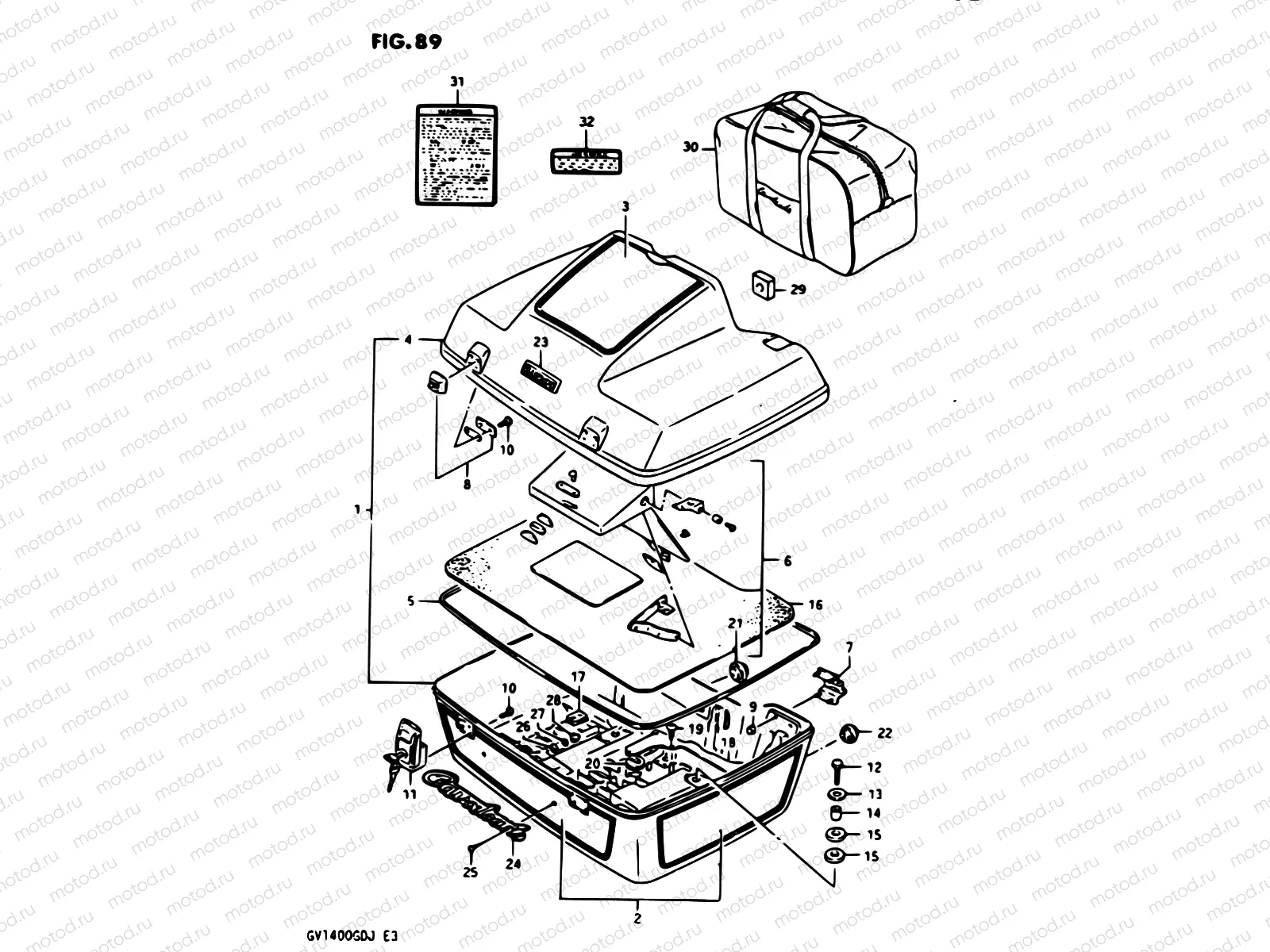

89 - TRAVEL TRUNK MODEL H

89 - TRAVEL TRUNK MODEL H

Например: 93100-24A60-9EF

1

93100-24A60-9EF

Trunk assy travel (black/silver)

1

93100-24A50-20H

Trunk assy travel (silver)

1

93100-24A50-34B

Trunk assy travel (blue)

1

93100-24A60-9EE

Trunk assy travel (maroon/silver)

2

68790-24A20-9EA

.tape set travel trun

2

68790-24A20-9EB

.tape set travel trun

2

68790-24A31-9EC

.tape set,travel trun

2

68790-24A31-9ED

.tape set travel trun

3

68810-24A00-9EC

.tape set trunk lid s

3

68810-24A00-9EA

.tape set trunk lid s

3

68810-24A00-9EB

.tape set trunk lid s

3

68810-24A00-9ED

.tape set trunk lid s

4

93120-24A00-20H

.lid travel trunk (silver)

4

93120-24A10-24D

.lid travel trunk (maroon)

4

93120-24A10-13Z

.lid travel trunk (black)

4

93120-24A00-34B

.lid travel trunk (blue)

5

93115-24A00

..seal,trunk lid

6

93140-24A01

..mirror,travel trunk

7

93130-24A01

.hinge,travel trunk

8

93316-24A02

.lock plate,trunk lid

9

08313-11045

Гайка 4MM

980 ₽/шт

9

08316-1005B

Гайка

1 520 ₽/шт

10

02142-0508A

SCREW

85 ₽/шт

11

93300-24820

Lock set,side bag

12

09118-06086

Болт 6X25

1 680 ₽/шт

13

09160-06105

Washer 6.3x34x1.6

14

09180-06055

Entretoise

15

09320-09030

Cushion

16

95415-24A10

Seat,travel trunk bo

16

95415-24A00

Seat

17

09309-20003

Grommet

17

09309-20001

Grommet

18

93116-24A10

Cover air hose trave

19

03541-0410A

Болт

85 ₽/шт

20

09309-24001

Grommet

21

45425-24A00

Grommet

22

45426-24A90

Grommet, wire

22

45426-24A00

Grommet, wire

23

68285-24A00

Emblem,trvl trnk,upr

24

68286-24A00

Emblem "cavalcade"

25

02132-03165

SCREW

740 ₽/шт

26

08322-0103B

Шайба

1 370 ₽/шт

27

09162-03001

Шайба блокирующая

900 ₽/шт

28

08313-11035

NUT

980 ₽/шт

29

45429-24A10

Seal air hose protec

30

93410-24A01

Luggage bag,travel t

31

68613-24A20

Label,trunk warning

32

68619-24A00

Label,wrng shft lk r
